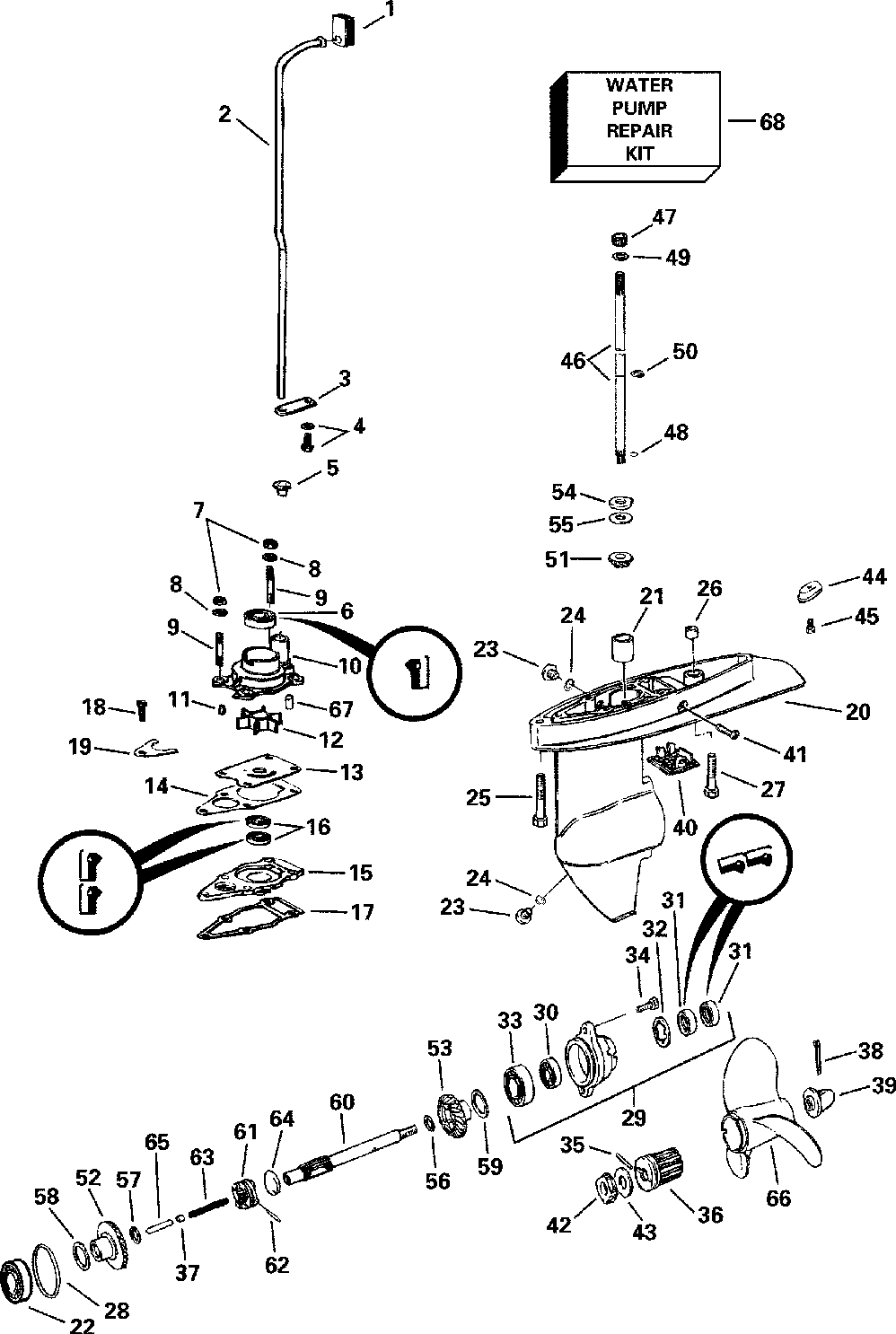

Редуктор Каталог оригинальных запчастей для лодочных моторов Johnson J5RVLSIM Rope Start, Tiller, 20 IN. shaft, White (2001)

Редуктор

Johnson J5RVLSIM Rope Start, Tiller, 20 IN. shaft, White

oem код

название

цена

Grommet, Water Tube

Tube, Water(s)

Tube, Water(l)

Guide, Water Tube

Bolt, M6x16

Bush, Water Pump ((contents Of Water Pump Repair Kit.) )

5030112

Seal, Oil ((contents Of Water Pump Repair Kit.) )

Гайка

Шайба-замок

Шпилька

Корпус водной помпы

Key ((contents Of Water Pump Repair Kit.) )

5030188

Impeller, Wtr Pump ((contents Of Water Pump Repair Kit.) )

5031196

Plate, Water Pump ((contents Of Water Pump Repair Kit.) )

5030190

Gasket, Pcase Panel ((contents Of Water Pump Repair Kit.) )

Hsg, Driveshaft

Сальник

Gasket, Dr Sft Hsg

Болт

Stopper, Shf Rd Gde

Gearcase

Bush 10x16x21.5

Bearing, 20x42x12

Plug, Drain, 10x7.5

Fill Plug Washer

Болт 8x45

Pin(sus)

Bolt, 8x40

Кольцо

Bearing, Hsg-pshaft

Bearing, 12x28x8

Seal, Oil, 12x24x4.5

Шайба-замок

Bolt, M6x16

Drive Pin 10 Pk

Bushing, Propeller

Pin, Push

Шплинт

Nut, Propeller

Filter, Water

Protector, Oil Seal

Шайба

Anode Kit

Болт 6x15

'98 Driveshft Only

Driveshaft-long

Втулка

Кольцо

Washer, 10x18x1

СТОПОРНОЕ КОЛЬЦО

Шестерня

Шестерня , форвард

Шестерня заднего хода

5030073

Шайба

5030058

Washer, 10x24x1.7 ((contents Of Shim & Washer Kit.) )

5030059

Washer, 10x24x1.8 ((contents Of Shim & Washer Kit.) )

5030060

Washer, 10x24x1.9 ((contents Of Shim & Washer Kit.) )

5030061

Washer, 10x24x2.0 ((contents Of Shim & Washer Kit.) )

5030062

Washer, 10x24x2.1 ((contents Of Shim & Washer Kit.) )

Шайба

Shim(0.8)

Shim(0.9)

Проставка 1.0

Shim (1.1) ((contents Of Shim & Washer Kit.) )

5030082

Shim (1.2) ((contents Of Shim & Washer Kit.) )

Shifter, Clutch Dog

Штифт

Пружина

Пружина

Al Prop 7.5x6, 3bld

Prop, Al 7.5x6.5

Prop, Al (7.5 X 7)

Pin-wtr Pump Hsg

Kit, Wtr Pmp Repair ((contents Of Water Pump Repair Kit.) )
