Gearcase - 90 - 115 vx models Каталог оригинальных запчастей для лодочных моторов Johnson RJ115VLSIC elec start, TNT, 20 in shaft, wht (2001)

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
2001
RJ115VLSIC elec start, TNT, 20 in shaft, wht

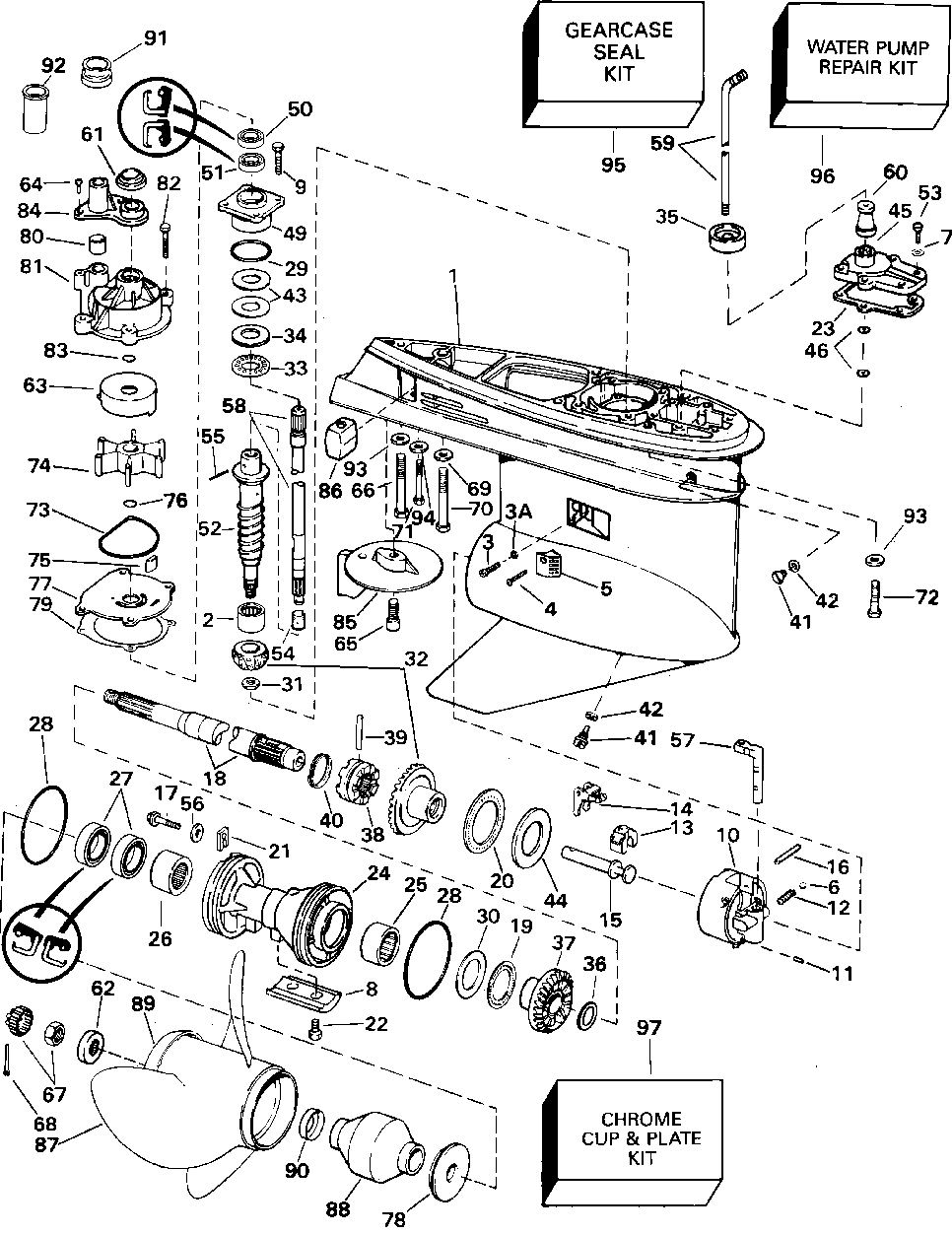

Gearcase - 90 - 115 vx models
Gearcase - 90 - 115 vx models

Gearcase - 90 - 115 vx models

Johnson RJ115VLSIC elec start, TNT, 20 in shaft, wht

oem код

название

цена

5005744

G-case .44 Os Wht ((not Shown.) )

Gcase & Brg Ay, "o"

Roller Brg Ay

Retaining Screw

Washer 5pk ((contents Of Gearcase Seal Kit.) )

Винт

Screen, Water Inlet

Шарик

Шайба

Анодная пластина

Винт

Hsg.& Bearing Ay

Штифт

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

Screw, Brg Carrier

Propshaft Ay, Serv

Подшипник

Thrust Brg-fwd Gr

Retaining Tab

Винт

Gasket ((contents Of Gearcase Seal Kit.) )

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal ((contents Of Gearcase Seal Kit.) )

0305123

O-ring ((contents Of Gearcase Seal Kit.) )

0314728

O Ring ((contents Of Gearcase Seal Kit.) )

Упорная шайба

Nut Pinion

Gearset, Fwd&pin V4

Thrust Brg Ay

Упорная шайба

Grommet Exh Hsg ((contents Of Water Pump Repair Kit.) )

0336565

Шайба

0336574

Шестерня заднего хода

Shifter-clutch Dog

Штифт

Пружина

Drain Screw ((contents Of Gearcase Seal Kit.) )

0311598

Washer ((contents Of Gearcase Seal Kit.) )

Shim-pinion-003

Shim-pinion-004

Shim 005

Thrust Washer Ay

Cover Ay, Shift Rod

O-ring ((contents Of Gearcase Seal Kit.) )

0439476

Ds Brg Hsg&seal Ay

0329922

Oil Retainer ((contents Of Gearcase Seal Kit.) )

0329923

Oil Retainer ((contents Of Gearcase Seal Kit.) )

Driveshaft, Lower

Винт

Retainer, Dr Sft

Pin, Roll

Шайба

Detent

25in D/s Kit Up

Shift Rod 25" Ffi

Spacer-shift Rod

Grommet ((contents Of Water Pump Repair Kit.) )

0320570

Spacer Prop Nut

0338486

Cup, Imp Housing ((contents Of Water Pump Repair Kit.) )

0338551

Cup Imp Housing

0306643

Screw ((contents Of Water Pump Repair Kit.) )

Винт

Винт

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Screw, Anode

Винт

Seal ((contents Of Water Pump Repair Kit.) )

5001593

Kit Ay, Impeller ((contents Of Water Pump Repair Kit.) )

0331107

Imp Key ((contents Of Water Pump Repair Kit.) )

0302035

O Ring ((contents Of Water Pump Repair Kit.) )

0338485

Plate, Water Pump ((contents Of Water Pump Repair Kit.) )

Plate Water Pump

Bushing, Thrust

Bushing, Thrust

Gasket, Wtr Pmp 5pk ((contents Of Water Pump Repair Kit. Contents Of Gearcase Seal Kit.) )

0314008

Grommet ((contents Of Water Pump Repair Kit.) )

0435959

Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )

0331188

O-ring-thermostat ((contents Of Water Pump Repair Kit.) )

0338893

Cover, Impeller Hsg ((contents Of Water Pump Repair Kit.) )

Tab, Trim-std

Anode&insert Ay

Prop Hub, 15 Spline

Bushing Ay, Prop

Converging Ring

Гильца

Grommet ((contents Of Water Pump Repair Kit.) )

0354580

Sleeve ((contents Of Water Pump Repair Kit.) )

Шайба

Стопорная шайба

Kit Ay, Seal-gc

Рем.комплект водяного насоса

0435526

Cup & Plate Ay

5005744

G-case .44 Os Wht ((not Shown.) )

Gcase & Brg Ay, "o"

Roller Brg Ay

Retaining Screw

Винт

Screen, Water Inlet

Шарик

Шайба

Анодная пластина

Винт

Hsg.& Bearing Ay

Штифт

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

Screw, Brg Carrier

Propshaft Ay, Serv

Bearing Ay, Thrust

Thrust Brg-fwd Gr

Retaining Tab

Винт

Gasket ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal ((contents Of Gearcase Seal Kit.) )

0305123

O-ring ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)

0354731

O-ring ((contents Of Gearcase Seal Kit.) )

Упорная шайба

Nut Pinion

Gearset, Fwd&pin V4

Thrust Brg Ay

Упорная шайба

Grommet Exh Hsg ((contents Of Water Pump Repair Kit.) )

Шайба

Gear, Reverse(.44)

Shifter-clutch Dog

Штифт

Washer 5pk ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)

0324369

Пружина

0318544

Drain Screw ((contents Of Gearcase Seal Kit.) )

0311598

Washer-10 Pk ((contents Of Gearcase Seal Kit.) ) (010 Per Pack)

Shim-pinion-003

Shim-pinion-004

Shim 005

Thrust Washer Ay

Cover Ay, Shift Rod

O-ring ((contents Of Gearcase Seal Kit.) ) (005 Per Pack)

0439476

Ds Brg Hsg&seal Ay

0329922

Oil Retainer ((contents Of Gearcase Seal Kit.) )

0329923

Oil Retainer ((contents Of Gearcase Seal Kit.) )

Driveshaft, Lower

Screw (005 Per Pack)

Retainer, Dr Sft

Pin, Roll

Шайба

Detent

25in D/s Kit Up

Shift Rod 25" Ffi

Spacer-shift Rod

Grommet ((contents Of Water Pump Repair Kit.) )

0320570

Spacer Prop Nut

0338486

Cup, Imp Housing ((contents Of Water Pump Repair Kit.) )

0338551

Cup Imp Housing

0306643

Screw ((contents Of Water Pump Repair Kit.) )

Винт

Винт

Nut&keeper Ay, Prop

Cotter Pin 10 Pk (010 Per Pack)

Шайба

Винт

Screw, Anode

Винт

Seal ((contents Of Water Pump Repair Kit.) )

5001593

Kit Ay, Impeller ((contents Of Water Pump Repair Kit.) )

0331107

Imp Key ((contents Of Water Pump Repair Kit.) )

0302035

O Ring ((contents Of Water Pump Repair Kit.) )

0338485

Plate, Water Pump ((contents Of Water Pump Repair Kit.) )

Plate Water Pump

Bushing, Thrust

Bushing, Thrust

Gasket, Wtr Pmp 5pk ((contents Of Water Pump Repair Kit. Contents Of Gearcase Seal Kit.) ) (005 Per Pack)

0314008

Grommet ((contents Of Water Pump Repair Kit.) )

5007968

Housing Ay, Implr ((contents Of Water Pump Repair Kit.) )

0302325

Screw ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)

0331188

O-ring ((contents Of Water Pump Repair Kit.) ) (005 Per Pack)

0338893

Cover, Impeller Hsg ((contents Of Water Pump Repair Kit.) )

Tab, Trim-std

Anode&insert Ay

Prop Hub, 15 Spline

Bushing Ay, Prop

Converg Ring, V6

Гильца

Grommet ((contents Of Water Pump Repair Kit.) )

0354580

Sleeve ((contents Of Water Pump Repair Kit.) )

Шайба

Стопорная шайба

Kit Ay, Seal-gc

Рем.комплект водяного насоса

0435526

Cup & Plate Ay
