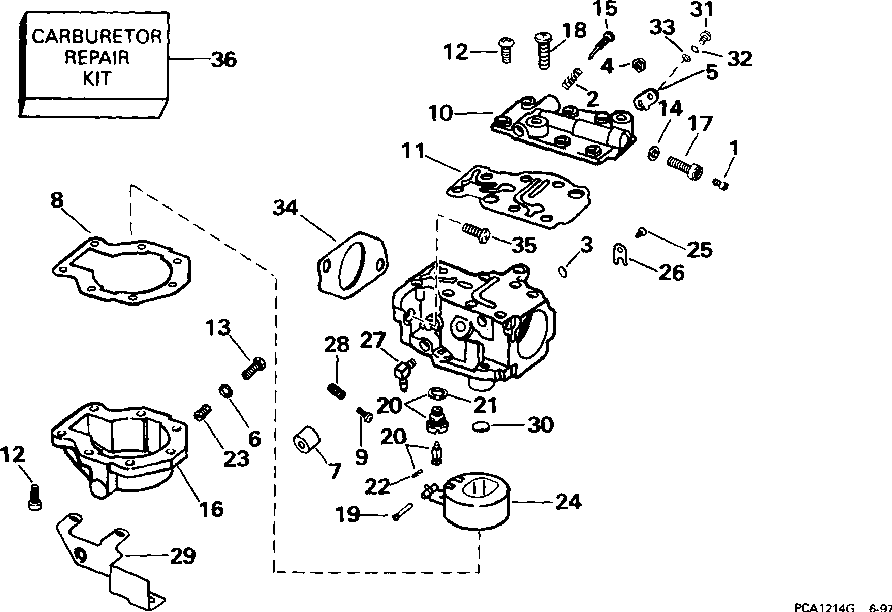

Carburetor -- 25 hp

Johnson BJ25PL3EEM
Johnson
#oem кодцена
438273
0438273
Carburetor Ay ( Not Shown . Middle Carburetor . R, Rl, Tel Models .)
438272
0438272
Carburetor Ay ( Not Shown . Top & Bottom Carburetor . R, Rl, Tel Models .)
1
0318823
Orifice, .031
2
0332576
Пружина
3
0305243
Expansion Plu ( Also Available In Carburetor Repair Kit .)
4
0121470
Nut ( Middle Carburetor .)
6
0303630
Washer, Fiber ( Also Available In Carburetor Repair Kit .)
7
0323326
Roller-cam Followr ( Middle Carburetor .)
8
0338882
Gasket ( Also Available In Carburetor Repair Kit .)
9
0341555
Screw ( Middle Carburetor .)
10
0436351
Cover & Insert Ay
11
0341501
Gasket ( Also Available In Carburetor Repair Kit .)
12
0908045
Винт
13
0330057
Винт
14
0317477
Washer-plug ( Also Available In Carburetor Repair Kit .)
15
0339218
Клапан запорный
16
0340182
Поплавковая камера
17
0341691
Screw, Jet Housing
18
0341474
Винт
19
0302661
Pin ( Also Available In Carburetor Repair Kit .)
20
0396522
Float Valve & Seat ( Also Available In Carburetor Repair Kit .)
21
0301996
Шайба
22
0336842
Защелка пружинная
23
0323703
Orifice-intermedia
24
0396514
Float&arm Ay ( Also Available In Carburetor Repair Kit .)
25
0330284
Screw ( R, Rl, Tel Models .)
26
0330285
Retaining Clip ( R, Rl, Tel Models .)
27
0336595
Колено
28
0911961
Spring ( Middle Carburetor .)
29
0341059
Bracket ( Middle Carburetor . R, Rl, Tel Models .)
30
0316991
Expansion Plug ( Also Available In Carburetor Repair Kit .)
31
0306014
Screw ( Top & Bottom Carburetor .)
32
0303701
Lockwasher ( Top & Bottom Carburetor .)
33
0328735
Washer ( Top & Bottom Carburetor .)
34
0340461
Gasket ( Also Available In Carburetor Repair Kit .)
35
0340002
Screw, M6x1x20
36
0437911
Рем.компл.Карбюратора
1
0318823
Orifice, .031
2
0332576
Пружина
3
0305243
Expansion Plu ( Also Available In Carburetor Repair Kit .)
4
0121470
Nut ( Middle Carburetor .)
6
0303630
Washer, Fiber ( Also Available In Carburetor Repair Kit .)
7
0323326
Roller-cam Followr ( Middle Carburetor .)
8
0338882
Gasket, Float Bowl ( Also Available In Carburetor Repair Kit .)
10
0436351
Cover & Insert Ay
11
0341501
Gasket ( Also Available In Carburetor Repair Kit .)
12
0908045
Винт
13
0330057
Винт
14
0317477
Washer-plug ( Also Available In Carburetor Repair Kit .)
15
0339218
Клапан запорный
16
0340182
Поплавковая камера
18
0341474
Винт
19
0302661
Pin ( Also Available In Carburetor Repair Kit .)
20
0396522
Float Valve & Seat ( Also Available In Carburetor Repair Kit .)
21
0301996
Шайба
22
0336842
Защелка пружинная
23
0323703
Orifice, .036
24
0396514
Float&arm Ay ( Also Available In Carburetor Repair Kit .)
25
0330284
Screw ( R, Rl, Tel Models .)
26
0330285
Retaining Clip ( R, Rl, Tel Models .)
27
0336595
Колено
28
0911961
Spring ( Middle Carburetor .)
30
0316991
Expansion Plug ( Also Available In Carburetor Repair Kit .)
31
0306014
Screw ( Top & Bottom Carburetor .)
32
0303701
Lockwasher ( Top & Bottom Carburetor .)
33
0328735
Washer ( Top & Bottom Carburetor .)
34
0340461
Gasket ( Also Available In Carburetor Repair Kit .)
35
0340002
Screw, M6x1x20
36
0437911
Рем.компл.Карбюратора
0438272
0438272
Carburetor Ay ( Not Shown . Top & Bottom Carburetor . R, Rl, Tel Models .)
