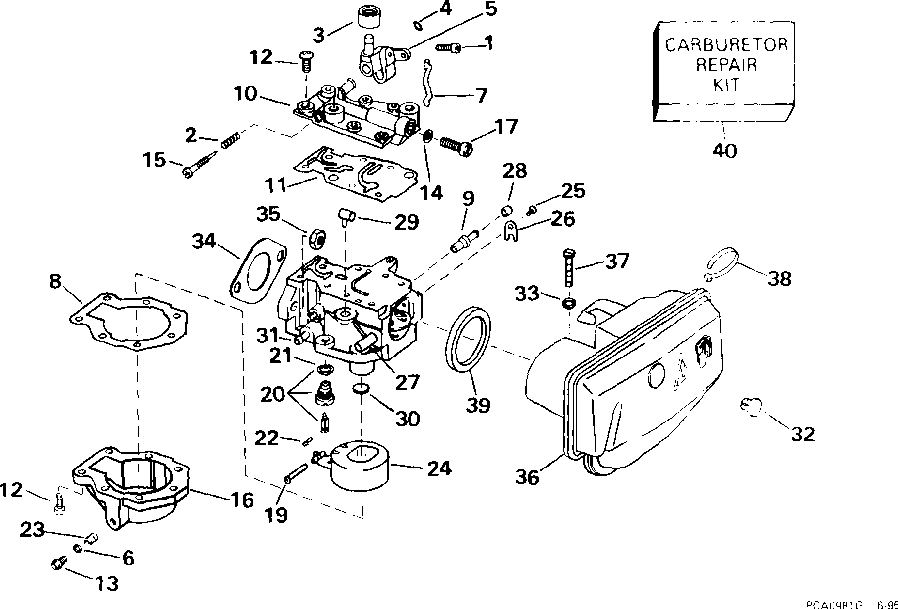

Карбюратор

Johnson J15TELEEA
Johnson
#oem кодцена
436778
0436778
Carb Ay, 9.9hp ( Not Shown . 9.9 Rope & Te Models .)
436779
0436779
Carb 9.9 Elect ( Not Shown . 10el Only .)
439129
0439129
Carb Ay, 15hp Rope ( Not Shown . 15 Rope & Te .)
439128
0439128
Carb Ay, 15hp Remot ( Not Shown . 15el Only .)
1
0330346
Винт
2
0337807
Пружина
3
0323328
Roller-cam Followr
4
0321117
Кольцо
5
0323327
Cam Follower
6
0303630
Washer, Fiber ( Also Available In Carburetor Repair Kit .)
7
0334235
Link
8
0338882
Gasket ( Also Available In Carburetor Repair Kit .)
9
0327706
Нипель
10
0438061
Cover&insert Ay ( 9.9 Rope & Te Models . 10el Only .)
10
0437985
Cover&insert Ay ( 15 Rope & Te . 15el Only .)
11
0340616
Gasket ( Also Available In Carburetor Repair Kit .)
12
0908045
Винт
13
0330057
Винт
14
0317477
Washer-plug ( Also Available In Carburetor Repair Kit .)
15
0339218
Клапан запорный
16
0339321
Поплавковая камера
17
0330055
Винт
19
0302661
Pin ( Also Available In Carburetor Repair Kit .)
20
0396522
Float Valve & Seat ( Also Available In Carburetor Repair Kit .)
21
0301996
Washer ( Also Available In Carburetor Repair Kit .)
22
0336842
Clip, Spring ( Also Available In Carburetor Repair Kit .)
23
0323703
Orifice-intermedia ( 9.9 Rope & Te Models . 10el Only .)
23
0326500
Orifice ( 15 Rope & Te . 15el Only .)
24
0396514
Float&arm Ay ( Also Available In Carburetor Repair Kit .)
25
0330284
Screw ( 9.9 Rope & Te Models . 15 Rope & Te .)
26
0330285
Retaining Clip ( 9.9 Rope & Te Models . 15 Rope & Te .)
27
0311511
Roll Pin ( 9.9 Rope & Te Models . 15 Rope & Te .)
28
0327227
Cap ( 9.9 Rope & Te Models . 15 Rope & Te .)
29
0340810
Cap, Restrictor.038
30
0316991
Expansion Plug ( Also Available In Carburetor Repair Kit .)
31
0314513
Ниппель
32
0316337
Заглушка
33
0328739
Шайба
34
0338282
Gasket ( Also Available In Carburetor Repair Kit .)
35
0328742
Nut-stud
36
0436296
Air Silencer Ay
37
0331758
Винт
38
0317893
Стяжка (отпускается по 100 шт)
39
0339192
Seal, Air Silencer
40
0439073
Рем.компл.Карбюратора
1
0330346
Винт
2
0337807
Пружина
3
0323328
Roller-cam Followr
4
0321117
O Ring (005 Per Pack)
5
0323327
Cam Follower
6
0303630
Washer, Fiber ( Also Available In Carburetor Repair Kit .)
7
0334235
Link
8
0338882
Gasket, Float Bowl ( Also Available In Carburetor Repair Kit .)
9
0327706
Нипель
10
0438061
Cover&insert Ay ( 9.9 Rope & Te Models . 10el Only .)
10
0437985
Cover&insert Ay ( 15 Rope & Te . 15el Only .)
11
0340616
Gasket ( Also Available In Carburetor Repair Kit .)
12
0908045
Винт
13
0330057
Винт
14
0317477
Washer-plug ( Also Available In Carburetor Repair Kit .)
15
0339218
Клапан запорный
16
0339321
Поплавковая камера
17
0330055
Винт
19
0302661
Pin ( Also Available In Carburetor Repair Kit .)
20
0396522
Float Valve & Seat ( Also Available In Carburetor Repair Kit .)
21
0301996
Washer ( Also Available In Carburetor Repair Kit .)
22
0336842
Clip, Spring ( Also Available In Carburetor Repair Kit .)
23
0323703
Orifice, .036 ( 9.9 Rope & Te Models . 10el Only .)
23
0326500
Orifice, .048 ( 15 Rope & Te . 15el Only .)
24
0396514
Float&arm Ay ( Also Available In Carburetor Repair Kit .)
25
0330284
Screw ( 9.9 Rope & Te Models . 15 Rope & Te .)
26
0330285
Retaining Clip ( 9.9 Rope & Te Models . 15 Rope & Te .)
27
0311511
Roll Pin ( 9.9 Rope & Te Models . 15 Rope & Te .)
28
0327227
Cap ( 9.9 Rope & Te Models . 15 Rope & Te .)
29
0340810
Cap, Restrictor.038
30
0316991
Expansion Plug ( Also Available In Carburetor Repair Kit .)
31
0314513
Ниппель
32
0316337
Заглушка
33
0328739
Шайба
34
0338282
Gasket ( Also Available In Carburetor Repair Kit .)
35
0328742
Nut-stud
36
0436296
Air Silencer Ay
37
0331758
Винт
38
0317893
Tie Strap 100pk (100 Per Pack)
39
0339192
Seal, Air Silencer
40
0439073
Рем.компл.Карбюратора
0436779
0436779
Carb 9.9 Elect ( Not Shown . 10el Only .)
0439129
0439129
Carb Ay, 15hp Rope ( Not Shown . 15 Rope & Te .)
