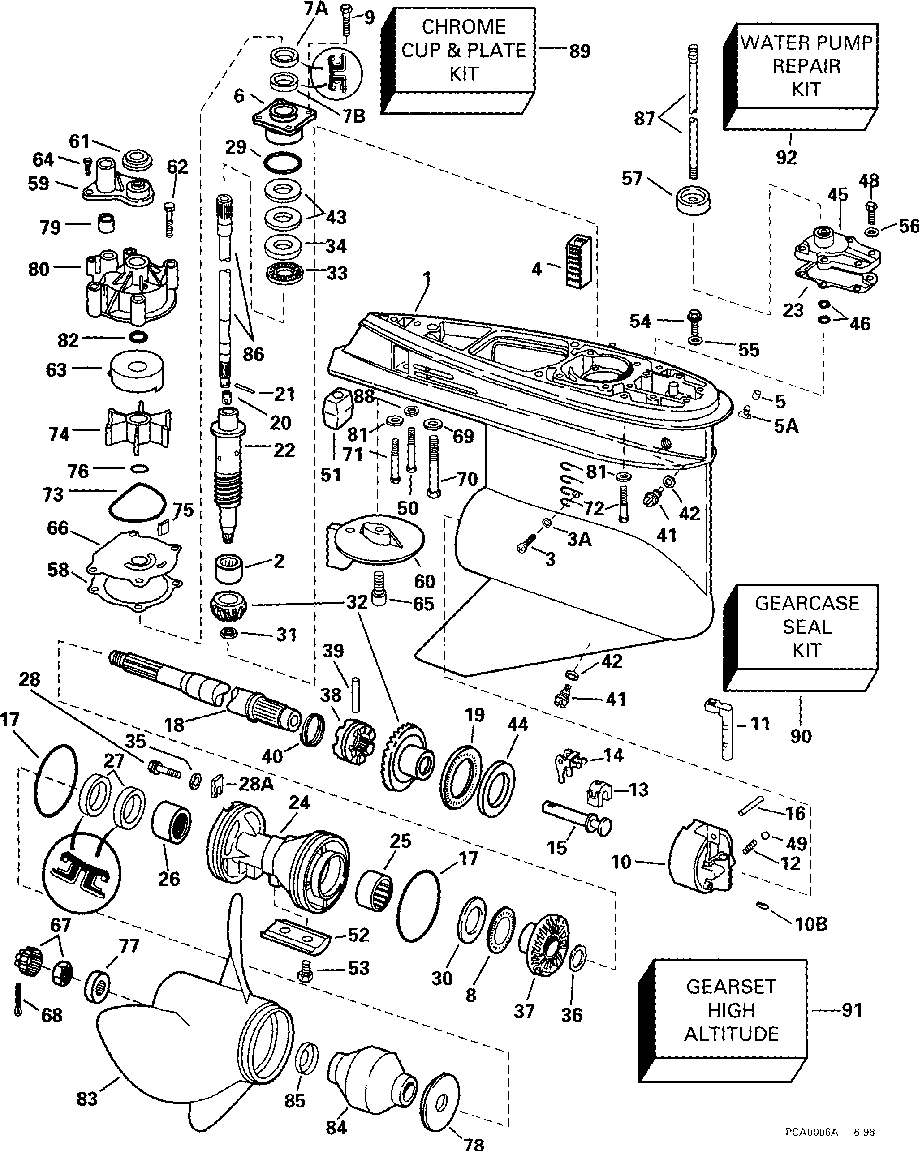

Gearcase -- standard rotation -- pl models

Johnson J175PXEES
Johnson
#oem кодцена
439981
5004635
See Sb 2002-02p ( Not Shown .)
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw ( Contents Of Gearcase Seal Kit .)
3A
0332584
Шайба
4
0321123
Screen, Water Intk
5
0305749
Nipple Plug
5A
0336535
Ниппель
6
0439476
Ds Brg Hsg&seal Ay
7A
0329922
Oil Retainer ( Contents Of Gearcase Seal Kit .)
7B
0329923
Oil Retainer ( Contents Of Gearcase Seal Kit .)
8
0382408
Подшипник
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
10B
0331880
Штифт
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
O-ring ( Contents Of Gearcase Seal Kit .)
18
5004765
Propshaft Ay, Serv
19
0389042
Thrust Brg-fwd Gr
20
0338504
Retainer, Dr Sft
21
0311538
Pin, Roll
22
0345905
Driveshaft, Lower
23
0352165
Gasket ( Contents Of Gearcase Seal Kit .)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ( Contents Of Gearcase Seal Kit .)
28
0350271
Screw, Brg Carrier
28A
0333957
Retaining Tab
29
0314728
O Ring ( Contents Of Gearcase Seal Kit .)
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0328743
Шайба
36
0336565
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
40
0324369
Пружина
41
0318544
Drain Screw ( Contents Of Gearcase Seal Kit .)
42
0311598
Washer ( Contents Of Gearcase Seal Kit .)
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ( Contents Of Gearcase Seal Kit .)
48
0302325
Винт
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0341220
Винт
55
0437330
Washer&seal Ay ( Contents Of Gearcase Seal Kit .)
56
0328702
Шайба
57
0321008
Grommet Exh Hsg ( Contents Of Water Pump Repair Kit)
58
0338484
Gasket, Wtr Pmp 5pk ( Contents Of Water Pump Repair Kit)
59
0338893
Cover, Impeller Hsg ( Contents Of Water Pump Repair Kit)
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Contents Of Water Pump Repair Kit)
63
0338486
Cup, Imp Housing ( Stainless Steel . Contents Of Water Pump Repair Kit)
63
0338551
Cup Imp Housing ( Chrome Plated .)
64
0306643
Screw ( Contents Of Water Pump Repair Kit)
65
0313715
Винт
66
0338485
Plate, Water Pump ( Stainless Steel . Contents Of Water Pump Repair Kit)
66
0338552
Plate Water Pump ( Chrome Plated .)
67
0398042
Prop Nut & Keeper
68
0306394
Cotter Pin 10 Pk
69
0330265
Шайба
70
0331998
Винт
71
0330263
Винт
72
0331999
Винт
73
0331353
Seal ( Contents Of Water Pump Repair Kit)
74
5001593
Kit Ay, Impeller ( Contents Of Water Pump Repair Kit)
75
0331107
Imp Key ( Contents Of Water Pump Repair Kit)
76
0302035
O Ring ( Contents Of Water Pump Repair Kit)
77
0320570
Spacer Prop Nut
78
0126870
Bushing, Thrust ( Renegade Offshore & All 3-blade .)
78
0128777
Bushing, Thrust ( Renegade Bass Only .)
79
0314008
Grommet ( Contents Of Water Pump Repair Kit)
80
0435990
Housing Ay, Implr ( Contents Of Water Pump Repair Kit)
81
0330266
Шайба
82
0331188
O-ring-thermostat ( Contents Of Water Pump Repair Kit)
84
0175401
Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)
84
0431730
Prop Hub Shtr ( Renegade Bass Only .)
85
0313926
Гильца
86
5000615
Kit, Upper D/s-20"
87
0335509
Rod, Shift 20"
88
0307161
Стопорная шайба
89
0435526
Cup & Plate Ay
90
5006373
Kit Ay, Seal-gc
91
0438493
Gearset Hi-alt V6 ( Optional .)
92
5001594
Рем.комплект водяного насоса
1
0439973
Call Tech Svc/qipl
2
0387817
Roller Brg Ay
3
0324852
Retaining Screw ( Contents Of Gearcase Seal Kit .)
4
0321123
Screen, Water Intk
5
0305749
Nipple Plug
6
0439476
Ds Brg Hsg&seal Ay
8
0382408
Bearing Ay, Thrust
9
0317624
Винт
10
0389455
Hsg.& Bearing Ay
11
0915954
Detent
12
0911962
Пружина
13
0334163
Cradle-shift
14
0322938
Shifter-lever
15
0322941
Shaft-shifter
16
0328825
Pin-shifter Arm
17
0305123
O-ring ( Contents Of Gearcase Seal Kit .) (010 Per Pack)
18
5004765
Propshaft Ay, Serv
19
0389042
Thrust Brg-fwd Gr
20
0338504
Retainer, Dr Sft
21
0311538
Pin, Roll
22
0345905
Driveshaft, Lower
23
0352165
Gasket ( Contents Of Gearcase Seal Kit .) (005 Per Pack)
24
5004257
Hsg Ay, Propshaft
25
0382407
Подшипник игольчатый
26
0436752
Подшипник игольчатый
27
0334950
Seal ( Contents Of Gearcase Seal Kit .)
28
0350271
Screw, Brg Carrier
29
0354731
O-ring ( Contents Of Gearcase Seal Kit .)
30
0314731
Упорная шайба
31
0314730
Nut Pinion
32
5004938
Gearset, V6 Fwd&pin
33
0387656
Thrust Brg Ay
34
0327656
Упорная шайба
35
0328743
Шайба
36
0336565
Шайба
37
0336561
Gear, Reverse .54
38
0337774
Shifter-clutch Dog
39
0313448
Штифт
3A
0332584
Washer 5pk (005 Per Pack)
40
0324369
Пружина
41
0318544
Drain Screw ( Contents Of Gearcase Seal Kit .)
42
0311598
Washer-10 Pk ( Contents Of Gearcase Seal Kit .) (010 Per Pack)
43
0323362
Shim-pinion-003
43
0323361
Shim-pinion-004
43
0314745
Shim 005
44
0327669
Упорная шайба
45
5006241
Cover Ay, Shift Rod
46
0318372
O-ring ( Contents Of Gearcase Seal Kit .) (005 Per Pack)
48
0302325
Screw (005 Per Pack)
49
0160084
Шарик
50
0328096
Screw, Anode
51
0436745
Anode&insert Ay
52
0431708
Анодная пластина
53
0908158
Винт
54
0341220
Винт
55
0437330
Washer&seal Ay ( Contents Of Gearcase Seal Kit .)
56
0328702
Шайба
57
0321008
Grommet Exh Hsg ( Contents Of Water Pump Repair Kit)
58
0338484
Gasket, Wtr Pmp 5pk ( Contents Of Water Pump Repair Kit) (005 Per Pack)
59
0338893
Cover, Impeller Hsg ( Contents Of Water Pump Repair Kit)
5A
0336535
Ниппель
60
0338742
Tab, Trim-std
61
0320943
Grommet ( Contents Of Water Pump Repair Kit)
62
0302325
Screw ( Contents Of Water Pump Repair Kit) (005 Per Pack)
63
0338486
Cup, Imp Housing ( Stainless Steel . Contents Of Water Pump Repair Kit)
63
0338551
Cup Imp Housing ( Chrome Plated .)
64
0306643
Screw ( Contents Of Water Pump Repair Kit)
65
0313715
Винт
66
0338485
Plate, Water Pump ( Stainless Steel . Contents Of Water Pump Repair Kit)
66
0338552
Plate Water Pump ( Chrome Plated .)
67
5008966
Nut&keeper Ay, Prop
68
0306394
Cotter Pin 10 Pk (010 Per Pack)
69
0330265
Шайба
70
0331998
Винт
71
0330263
Винт
72
0331999
Винт
73
0331353
Seal ( Contents Of Water Pump Repair Kit)
74
5001593
Kit Ay, Impeller ( Contents Of Water Pump Repair Kit)
75
0331107
Imp Key ( Contents Of Water Pump Repair Kit)
76
0302035
O Ring ( Contents Of Water Pump Repair Kit)
77
0320570
Spacer Prop Nut
78
0126870
Bushing, Thrust ( Renegade Offshore & All 3-blade .)
78
0128777
Bushing, Thrust ( Renegade Bass Only .)
79
0314008
Grommet ( Contents Of Water Pump Repair Kit)
7A
0329922
Oil Retainer ( Contents Of Gearcase Seal Kit .)
7B
0329923
Oil Retainer ( Contents Of Gearcase Seal Kit .)
80
0435990
Housing Ay, Implr ( Contents Of Water Pump Repair Kit)
81
0330266
Шайба
82
0331188
O-ring ( Contents Of Water Pump Repair Kit) (005 Per Pack)
84
0175401
Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)
84
0431730
Prop Hub Shtr ( Renegade Bass Only .)
85
0313926
Гильца
86
5000615
Kit, Upper D/s-20"
87
0335509
Rod, Shift 20"
88
0307161
Стопорная шайба
89
0435526
Cup & Plate Ay
90
5006373
Kit Ay, Seal-gc
92
5001594
Рем.комплект водяного насоса
10B
0331880
Штифт
28A
0333957
Retaining Tab
0439981
5004635
See Sb 2002-02p ( Not Shown .)
