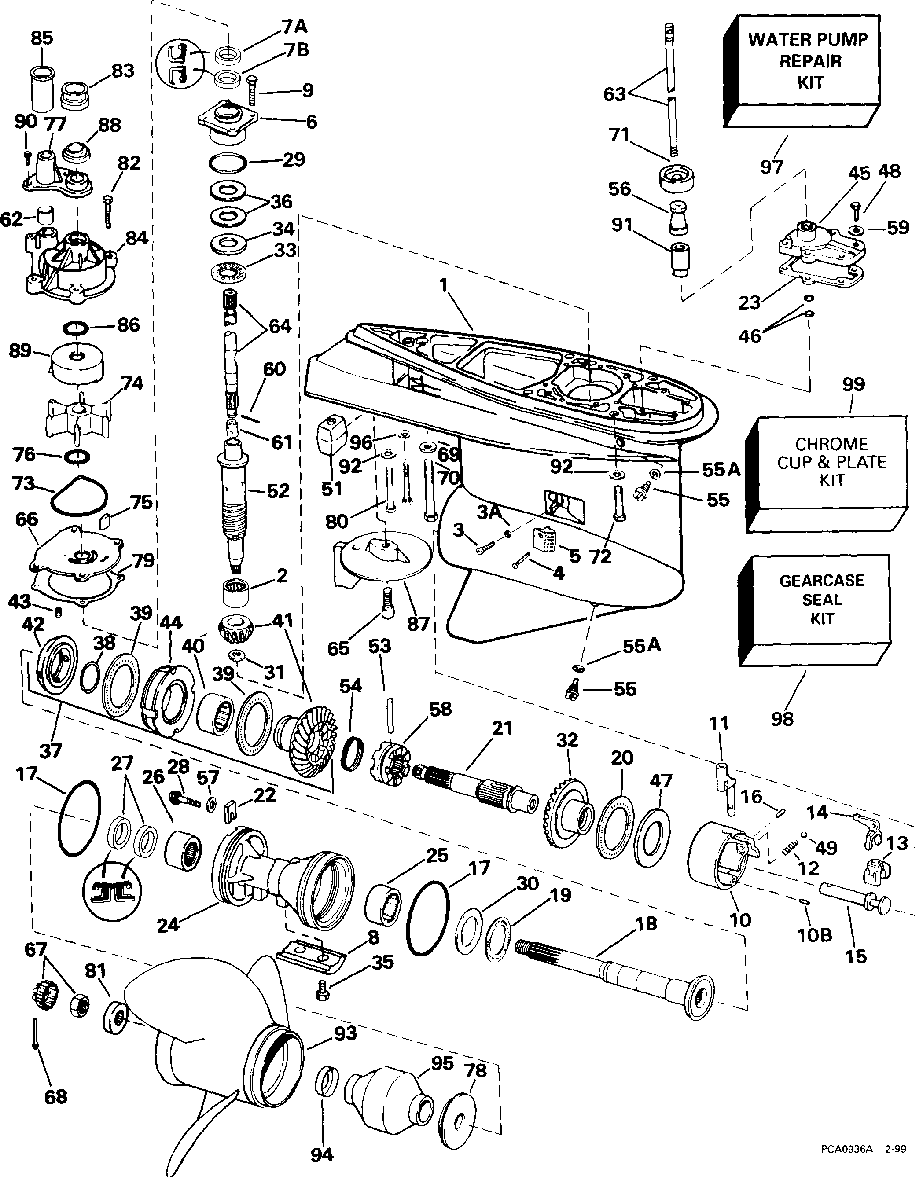

Gcase/coro/wht/os ( Not Shown .)

Gcase & Brg Ay, "o"

Roller Brg Ay

Retaining Screw

Washer 5pk ( Contents Of Gearcase Seal Kit .)

Винт

Screen, Water Inlet

Screen, Water Inlet ( Optional .)

Ds Brg Hsg&seal Ay

Oil Retainer ( Contents Of Gearcase Seal Kit .)

Oil Retainer ( Contents Of Gearcase Seal Kit .)

Анодная пластина

Винт

Housing Ay

Штифт

Detent

Пружина

Cradle-shift

Lever-shifter

Shaft-shifter

Палец

O-ring ( Contents Of Gearcase Seal Kit .)

Вал гребново винта

Подшипник

Thrust Brg-fwd Gr

Shaft Ay, Clutch

Retaining Tab

Gasket ( Contents Of Gearcase Seal Kit .)

Hsg Ay, Propshaft

Brg Ay-redial

Подшипник игольчатый

Seal ( Contents Of Gearcase Seal Kit .)

Screw, Brg Carrier

O Ring ( Contents Of Gearcase Seal Kit .)

Шайба

Nut Pinion

Gear Ay-reverse

Thrust Brg Ay

Упорная шайба

Винт

Shim-pinion-003

Shim-pinion-004

Shim 005

Gearset Ay, Fwd&pin

Shim-.0030

Shim-.0040

Shim-.0050

Thrust Brg Ay

Brg Ay-fwd Gear

Gearset, Fwd&pin/cr

Flange, Thrust

Установочный винт

Опора картера

Cover Ay, Shift Rod

O-ring ( Contents Of Gearcase Seal Kit .)

Упорная шайба

Винт

Шарик

Screw, Anode

Anode&insert Ay

Driveshaft, Lower

Штифт

Пружина

Drain Screw ( Contents Of Gearcase Seal Kit .)

Шайба

Spacer-shift Rod

Шайба

Shifter-clutch Dog

Шайба

Pin, Roll

Retainer, Dr Sft

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Shift Rod, 25" ( Cx .)

Rod, Shift-30" ( Cz .)

Driveshaft Ay ( Cx .)

Upper Dshaft Ay ( Cz .)

Винт

Plate, Water Pump ( Contents Of S.s. Water Pump Repair Kit . Stainless Steel .)

Plate Water Pump ( Chrome Plated .)

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Grommet Exh Hsg ( Contents Of S.s. Water Pump Repair Kit .)

Винт

Seal ( Contents Of S.s. Water Pump Repair Kit .)

Kit Ay, Impeller ( Contents Of S.s. Water Pump Repair Kit .)

Imp Key ( Contents Of S.s. Water Pump Repair Kit .)

O Ring ( Contents Of S.s. Water Pump Repair Kit .)

Cover, Impeller Hsg ( Contents Of S.s. Water Pump Repair Kit .)

Bushing, Thrust ( Renegade Offshore & All 3-blade .)

Gasket, Wtr Pmp 5pk ( Contents Of S.s. Water Pump Repair Kit . Contents Of Gearcase Seal Kit .)

Винт

Spacer Prop Nut

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Housing Ay, Implr ( Contents Of S.s. Water Pump Repair Kit .)

Sleeve ( Cx . Contents Of S.s. Water Pump Repair Kit .)

Sleeve ( Cz . Contents Of S.s. Water Pump Repair Kit .)

O-ring-thermostat ( Contents Of S.s. Water Pump Repair Kit .)

Tab, Trim-c/r

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Cup, Imp Housing ( Contents Of S.s. Water Pump Repair Kit . Stainless Steel .)

Cup Imp Housing ( Chrome Plated .)

Screw ( Contents Of S.s. Water Pump Repair Kit .)

Extension, Spacer ( Cz .)

Шайба

Гильца

Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)

Prop Hub, 15 Spline

Гровер

Рем.комплект водяного насоса

Kit Ay, Seal-gc

Cup & Plate Ay

Gcase & Brg Ay, "o"

Roller Brg Ay

Retaining Screw

Винт

Screen, Water Inlet

Screen, Water Inlet ( Optional .)

Ds Brg Hsg&seal Ay

Анодная пластина

Винт

Housing Ay

Detent

Пружина

Cradle-shift

Lever-shifter

Shaft-shifter

Палец

O-ring ( Contents Of Gearcase Seal Kit .) (010 Per Pack)

Вал гребново винта

Bearing Ay, Thrust

Thrust Brg-fwd Gr

Shaft Ay, Clutch

Retaining Tab

Gasket ( Contents Of Gearcase Seal Kit .) (005 Per Pack)

Hsg Ay, Propshaft

Brg Ay, Needle

Подшипник игольчатый

Seal ( Contents Of Gearcase Seal Kit .)

Screw, Brg Carrier

O-ring ( Contents Of Gearcase Seal Kit .)

Шайба

Nut Pinion

Gear Ay-reverse

Thrust Brg Ay

Упорная шайба

Винт

Shim-pinion-003

Shim-pinion-004

Shim 005

Gearset Ay, Fwd&pin

Shim-.0030

Shim-.0040

Shim-.0050

Thrust Brg Ay

Washer 5pk ( Contents Of Gearcase Seal Kit .) (005 Per Pack)

Brg Ay-fwd Gear

Gearset, Fwd&pin/cr

Flange, Thrust

Установочный винт

Опора картера

Cover Ay, Shift Rod

O-ring ( Contents Of Gearcase Seal Kit .) (005 Per Pack)

Упорная шайба

Screw (005 Per Pack)

Шарик

Screw, Anode

Anode&insert Ay

Driveshaft, Lower

Штифт

Пружина

Drain Screw ( Contents Of Gearcase Seal Kit .)

Spacer-shift Rod

Шайба

Shifter-clutch Dog

Шайба

Pin, Roll

Retainer, Dr Sft

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Shift Rod, 25" ( Cx .)

Rod, Shift-30" ( Cz .)

Kit, Upper D/s-25" ( Cx .)

Upper Dshaft Ay ( Cz .)

Винт

Plate, Water Pump ( Contents Of S.s. Water Pump Repair Kit . Stainless Steel .)

Plate Water Pump ( Chrome Plated .)

Nut&keeper Ay, Prop

Cotter Pin 10 Pk (010 Per Pack)

Шайба

Винт

Grommet Exh Hsg ( Contents Of S.s. Water Pump Repair Kit .)

Винт

Seal ( Contents Of S.s. Water Pump Repair Kit .)

Kit Ay, Impeller ( Contents Of S.s. Water Pump Repair Kit .)

Imp Key ( Contents Of S.s. Water Pump Repair Kit .)

O Ring ( Contents Of S.s. Water Pump Repair Kit .)

Cover, Impeller Hsg ( Contents Of S.s. Water Pump Repair Kit .)

Bushing, Thrust ( Renegade Offshore & All 3-blade .)

Gasket, Wtr Pmp 5pk ( Contents Of S.s. Water Pump Repair Kit . Contents Of Gearcase Seal Kit .) (005 Per Pack)

Oil Retainer ( Contents Of Gearcase Seal Kit .)

Oil Retainer ( Contents Of Gearcase Seal Kit .)

Винт

Spacer Prop Nut

Screw ( Contents Of S.s. Water Pump Repair Kit .) (005 Per Pack)

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Housing Ay, Implr ( Contents Of S.s. Water Pump Repair Kit .)

Sleeve ( Cx . Contents Of S.s. Water Pump Repair Kit .)

Sleeve ( Cz . Contents Of S.s. Water Pump Repair Kit .)

O-ring ( Contents Of S.s. Water Pump Repair Kit .) (005 Per Pack)

Tab, Trim-c/r

Grommet ( Contents Of S.s. Water Pump Repair Kit .)

Cup, Imp Housing ( Contents Of S.s. Water Pump Repair Kit . Stainless Steel .)

Cup Imp Housing ( Chrome Plated .)

Screw ( Contents Of S.s. Water Pump Repair Kit .)

Extension, Spacer ( Cz .)

Шайба

Гильца

Bushing Ay, Prop ( Renegade Offshore & All 3-blade .)
