Коленчатый вал & Поршень Каталог оригинальных запчастей для лодочных моторов Johnson J5REEC (1999)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
1999
J5REEC
Коленчатый вал & Поршень
Коленчатый вал & Поршень

Коленчатый вал & Поршень

Johnson J5REEC

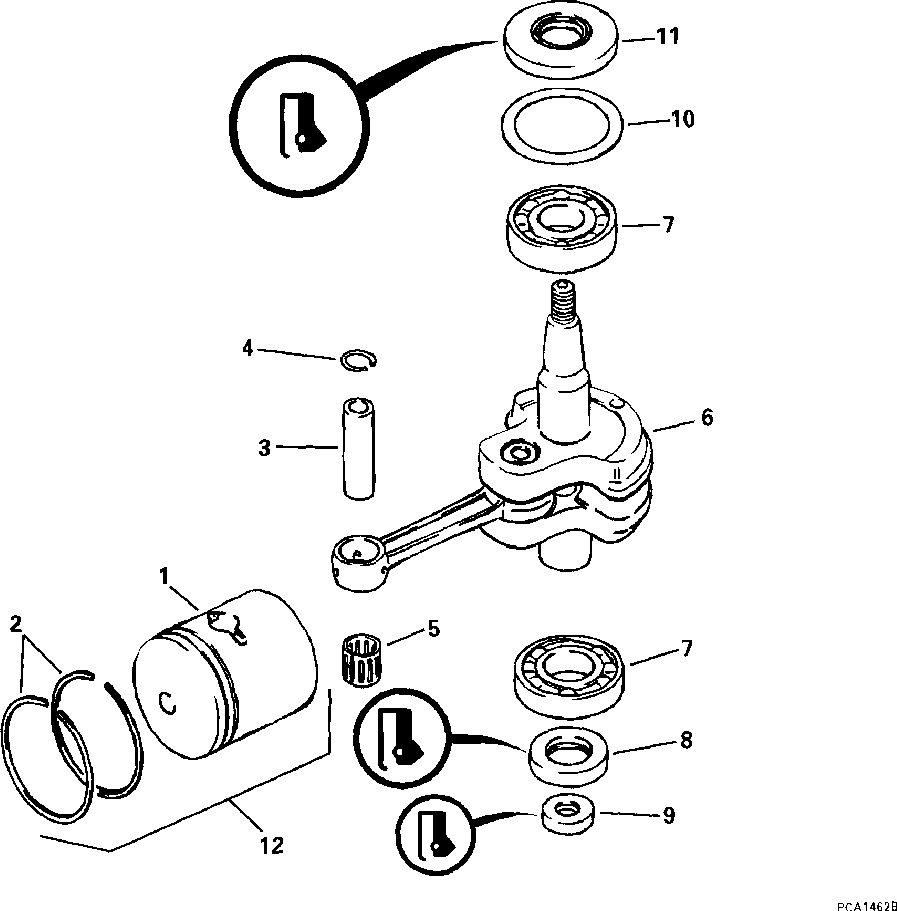

Коленчатый вал & Поршень

#

oem код

название

цена

1

Piston Comp

Piston Comp

2

КОЛЬЦА ПОРШНЕВЫЕ

КОЛЬЦА ПОРШНЕВЫЕ

3

ПАЛЕЦ ПОРШНЕВОЙ

ПАЛЕЦ ПОРШНЕВОЙ

4

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

5

Bearing, Piston Pin

Bearing, Piston Pin

6

Crank Shaft Assy

Crank Shaft Assy

7

Bearing, 20x47x14

Bearing, 20x47x14

8

Seal, Oil, 20x37x9 ( Included In Powerhead Gasket Set .)

Seal, Oil, 20x37x9 ( Included In Powerhead Gasket Set .)

9

Seal, Oil, 10x22x6 ( Included In Powerhead Gasket Set .)

Seal, Oil, 10x22x6 ( Included In Powerhead Gasket Set .)

10

Washer, 38x51x1

Washer, 38x51x1

11

Seal, Oil ( Included In Powerhead Gasket Set .)

Seal, Oil ( Included In Powerhead Gasket Set .)

12

Piston Ay, Os:0.25

Piston Ay, Os:0.25

12

Piston Ay, Os:0.50

Piston Ay, Os:0.50

1

Piston Comp

Piston Comp

2

КОЛЬЦА ПОРШНЕВЫЕ

КОЛЬЦА ПОРШНЕВЫЕ

3

ПАЛЕЦ ПОРШНЕВОЙ

ПАЛЕЦ ПОРШНЕВОЙ

4

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

5

Bearing, Piston Pin

Bearing, Piston Pin

6

Crank Shaft Assy

Crank Shaft Assy

7

Bearing, 20x47x14

Bearing, 20x47x14

8

Seal, Oil, 20x37x9 ( Included In Powerhead Gasket Set .)

Seal, Oil, 20x37x9 ( Included In Powerhead Gasket Set .)

9

Seal, Oil, 10x22x6 ( Included In Powerhead Gasket Set .)

Seal, Oil, 10x22x6 ( Included In Powerhead Gasket Set .)

10

Washer, 38x51x1

Washer, 38x51x1

11

Seal, Oil ( Included In Powerhead Gasket Set .)

Seal, Oil ( Included In Powerhead Gasket Set .)

12

Piston Ay, Os:0.50

Piston Ay, Os:0.50
