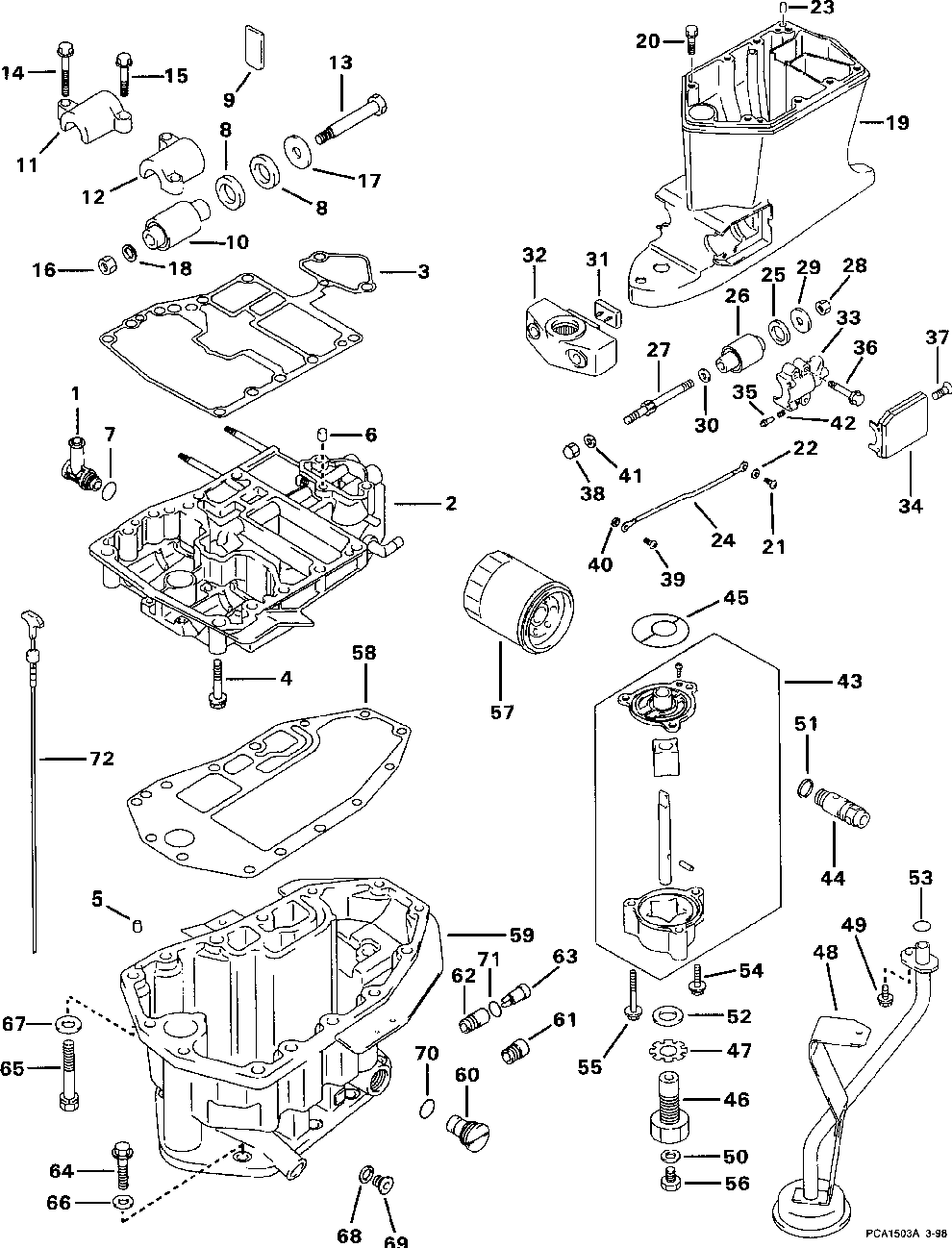

Midsection & oil system

Johnson J70FLTLECS
Johnson
#oem кодцена
1
5032910
Pipe, Water Return
2
5030880
Holder, Engine
2
5031162
Holder, Engine
3
5030882
Gasket ( Included In Powerhead Gasket Set)
4
5030401
Bolt, 10x80
5
5030515
Pin, 6.2x8x11
6
5031013
Штифт
7
5030539
Oring
8
5030886
Стопор
9
5030887
Mount
10
5035806
Mount, Upper
11
5030890
Cover, Upr Mt Stbd
12
5030892
Cover, Upr Mt Port
13
5030386
Bolt, 12x115mm
14
5030393
Bolt, 8x40
15
5030394
Bolt, 8x30
16
5030420
Гайка
17
5030437
Washer, 12.2x40x3
18
5030438
Washer, 12.5x22x2.5
19
5030884
Кожух
20
5030399
Bolt, 10x45
21
5030407
Screw, 5x8
22
5030460
Washer, 6.3x12.5x1
23
5030511
Штифт
24
5030821
Lead, L: 165
25
5030885
Стопор
26
5030894
Mount, Lower (l)
27
5030895
Bolt, Lower Mount
28
5030419
Гайка 12mm
31
5030893
Mount, Lwr Thrust
32
5030896
Brkt, Lower Mount
32
5030897
Brkt, Lower Mount
33
5030898
Cover, Lwr Mount
33
5030899
Cover, Lwr Mount
34
5030900
Cap, Lwr Mount Cvr
34
5030901
Cap, Lwr Mount Cvr
35
5030902
Pin, Lwr Mount Cap
36
5030397
Bolt, 8x40
37
5030412
Screw, 6x16
38
5030423
Гайка
39
5030409
Screw, 6x10
42
5030594
Пружина
43
5030711
Pump Ay, Oil
44
5030712
Valve Ay, Oil Rlf
45
5030713
O-ring, Oil Pump ( Included In Powerhead Gasket Set)
46
5030714
Stopper, Oil Pump
47
5030715
Washer, Oil Pump
48
5030717
Фильтр
49
5030392
Болт
50
5030464
Washer Gskt 8.2x14 ( Included In Powerhead Gasket Set)
51
5030469
Gasket, 16x22x2
52
5030470
Gasket, (16x22x2) ( Included In Powerhead Gasket Set)
53
5030537
Oring
54
5030985
Болт
55
5030986
Болт
56
5030992
Болт
57
0434839
Filter Ay, Oil
58
5030635
Gasket ( Included In Powerhead Gasket Set)
59
5030636
Поддон масляный
60
5032682
Plug, Water
61
5030850
Выхлопная Прокладка
62
5030929
Tube, Wtr Indicator
63
5030930
Cover, W/indic Tube
64
5030383
Болт
65
5030384
Bolt 10x100
66
5030433
Washer, 8.5x16x1.2
67
5030057
Шайба
68
5030465
Gskt (washer)
69
5030525
Plug, Oil Drain
70
5030536
Oring, D:4.7 Id:13
71
5031173
Кольцо уплотнительное
72
5030718
Указатель уровня масла
1
5032910
Pipe, Water Return
2
5030880
Holder, Engine
2
5031162
Holder, Engine
3
5030882
Gasket ( Included In Powerhead Gasket Set)
4
5030401
Bolt, 10x80
5
5030515
Pin, 6.2x8x11
6
5031013
Штифт
7
5030539
Oring
8
5030886
Стопор
9
5030887
Mount
10
5035806
Mount, Upper
11
5030889
Cover, Upr Mt Stbd
11
5030890
Cover, Upr Mt Stbd
12
5030891
Cover, Upr Mt Port
12
5030892
Cover, Upr Mt Port
13
5036599
Болт
14
5035665
Bolt (l:40)
17
5030437
Washer, 12.2x40x3
18
5030438
Washer, 12.5x22x2.5
19
5030883
Кожух
20
5035792
Bolt 10x45
21
5030407
Screw, 5x8
23
5030511
Штифт
24
5030821
Lead, L: 165
28
5030419
Гайка 12mm
29
5030437
Washer, 12.2x40x3
30
5030438
Washer, 12.5x22x2.5
31
5030893
Mount, Lwr Thrust
32
5030896
Brkt, Lower Mount
35
5030902
Pin, Lwr Mount Cap
39
5030409
Screw, 6x10
41
5030438
Washer, 12.5x22x2.5
42
5030594
Пружина
43
5030711
Pump Ay, Oil
44
5030712
Valve Ay, Oil Rlf
45
5030713
O-ring, Oil Pump ( Included In Powerhead Gasket Set)
46
5030714
Stopper, Oil Pump
47
5030715
Washer, Oil Pump
48
5030717
Фильтр
50
5036000
Gasket, 8.2x14x1 ( Included In Powerhead Gasket Set)
51
5030469
Gasket, 16x22x2
52
5030470
Gasket, (16x22x2) ( Included In Powerhead Gasket Set)
53
5030537
Oring
54
5030985
Болт
56
5030992
Болт
57
0434839
Filter Ay, Oil
58
5030635
Gasket ( Included In Powerhead Gasket Set)
59
5030636
Поддон масляный
60
5032682
Plug, Water
61
5030850
Выхлопная Прокладка
62
5030929
Tube, Wtr Indicator
63
5030930
Cover, W/indic Tube
65
5030384
Bolt 10x100
66
5030433
Washer, 8.5x16x1.2
67
5030057
Шайба
68
5030465
Gskt (washer) (010 Per Pack)
69
5030525
Plug, Oil Drain
70
5030536
Oring, D:4.7 Id:13
71
5031173
Уплотнительное кольцо
72
5030718
Указатель уровня масла
