Электрическая система Каталог оригинальных запчастей для лодочных моторов Johnson J70FLTLECS (1998)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Johnson
1998
J70FLTLECS

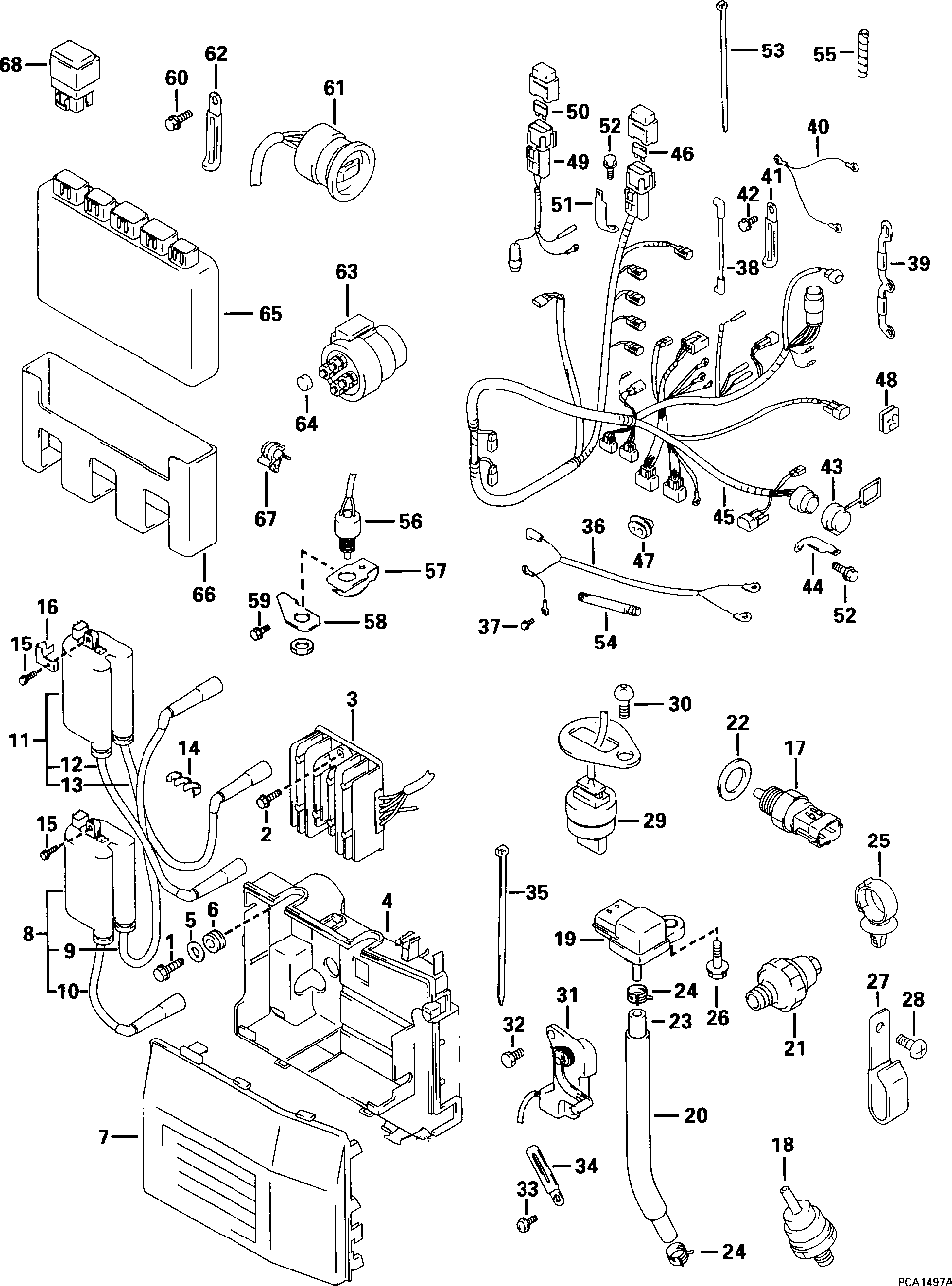

Электрическая система
Электрическая система

Электрическая система

Johnson J70FLTLECS

Электрическая система

#

oem код

название

цена

1

Болт

Болт

2

Болт

Болт

3

Rectifier & Reg Ay

Rectifier & Reg Ay

4

Holder, Elect Parts

Holder, Elect Parts

5

Washer, 6.5x22x1.6

Washer, 6.5x22x1.6

6

Подушка

Подушка

7

Cvr, Elec Parts Hld

Cvr, Elec Parts Hld

8

Coil Ay, Ignition

Coil Ay, Ignition

9

Cord, Tension No.1

Cord, Tension No.1

10

Sp Plg Lead No. 4

Sp Plg Lead No. 4

11

Coil Ay, Ignition

Coil Ay, Ignition

12

Sp Plg Lead No.2

Sp Plg Lead No.2

13

Sp Plg Lead No.3

Sp Plg Lead No.3

14

Зажим

Зажим

15

Болт

Болт

16

Protector, Ign Coil

Protector, Ign Coil

17

Датчик

Датчик

18

Pulse Limiter

Pulse Limiter

19

Sensor, Press'r/map

Sensor, Press'r/map

20

Protector, Pres Hse

Protector, Pres Hse

21

Switch Ay, Oil Pres

Switch Ay, Oil Pres

22

Gasket, 12.2x21x0.8

Gasket, 12.2x21x0.8

24

Зажим

Зажим

25

Зажим

Зажим

26

Болт

Болт

27

Зажим

Зажим

28

Винт

Винт

29

Sensor, Cyl Temp

Sensor, Cyl Temp

30

Screw, 6x12

Screw, 6x12

31

Sender Ay, Trim

Sender Ay, Trim

32

Bolt, Sender

Bolt, Sender

33

Screw, 6x10

Screw, 6x10

34

Clamp, L:65

Clamp, L:65

35

Tie Strap

Tie Strap

36

Cable Ay, Battery

Cable Ay, Battery

37

Болт

Болт

38

Cable, Term-relay

Cable, Term-relay

39

Plate, Ptt Relay

Plate, Ptt Relay

40

Cable Ay

Cable Ay

41

Зажим

Зажим

42

Болт

Болт

43

Cap, Service Conn

Cap, Service Conn

44

Bracket, Fuse Case

Bracket, Fuse Case

45

Harness Ay, Wiring

Harness Ay, Wiring

46

Fuse (15amp)

Fuse (15amp)

47

Grommet, Ptt Cable

Grommet, Ptt Cable

48

Grommet, Cable

Grommet, Cable

49

Case Ay, Fuse

Case Ay, Fuse

50

Fuse (30 Amp)

Fuse (30 Amp)

53

Стяжка (отпускается по 100 шт)

Стяжка (отпускается по 100 шт)

54

Гильца

Гильца

55

Spiral Wrap

Spiral Wrap

56

Switch Ay, Neutral

Switch Ay, Neutral

57

Actuator, (clip)

Actuator, (clip)

58

Bracket, Rvs Sw

Bracket, Rvs Sw

61

Выключатель

Выключатель

63

Relay Assy, Trim

Relay Assy, Trim

64

Крышка

Крышка

67

Зажим

Зажим

68

Relay, Fuel Inj

Relay, Fuel Inj

1

Болт

Болт

2

Болт

Болт

3

Rectifier & Reg Ay

Rectifier & Reg Ay

4

Holder, Elect Parts

Holder, Elect Parts

5

Washer, 6.5x22x1.6

Washer, 6.5x22x1.6

6

Подушка

Подушка

7

Cvr, Elec Parts Hld

Cvr, Elec Parts Hld

8

Coil Ay, Ignition

Coil Ay, Ignition

9

Cord, Tension No.1

Cord, Tension No.1

10

Sp Plg Lead #3

Sp Plg Lead #3

11

Coil Ay, Ignition

Coil Ay, Ignition

12

Sp Plg Lead No.2

Sp Plg Lead No.2

13

Sp Plg Lead #4

Sp Plg Lead #4

15

Болт

Болт

17

Датчик

Датчик

18

Pulse Limiter

Pulse Limiter

19

Sensor, Press'r/map

Sensor, Press'r/map

20

Protector, Pres Hse

Protector, Pres Hse

21

Switch Ay, Oil Pres

Switch Ay, Oil Pres

22

Gasket, 12.2x21x0.8

Gasket, 12.2x21x0.8

24

Зажим

Зажим

26

Болт

Болт

28

Винт

Винт

29

Sensor, Cyl Temp

Sensor, Cyl Temp

30

Screw, 6x12

Screw, 6x12

31

Sender Ay, Trim

Sender Ay, Trim

32

Bolt, Sender

Bolt, Sender

33

Screw, 6x10

Screw, 6x10

34

Clamp, L:65

Clamp, L:65

35

Tie Strap

Tie Strap

36

Cable Ay, Battery

Cable Ay, Battery

37

Болт

Болт

38

Cable, Term-relay

Cable, Term-relay

39

Plate, Ptt Relay

Plate, Ptt Relay

40

Cable Ay

Cable Ay

41

Clamp, L:65

Clamp, L:65

42

Болт

Болт

43

Cap, Service Conn

Cap, Service Conn

45

Harness Ay, Wiring

Harness Ay, Wiring

46

Fuse (15amp)

Fuse (15amp)

47

Grommet, Ptt Cable

Grommet, Ptt Cable

48

Grommet, Cable

Grommet, Cable

49

Case Ay, Fuse

Case Ay, Fuse

50

Fuse (30 Amp)

Fuse (30 Amp)

52

Болт

Болт

53

Tie Strap 100pk (100 Per Pack)

Tie Strap 100pk (100 Per Pack)

55

Spiral Wrap

Spiral Wrap

56

Switch Ay, Neutral

Switch Ay, Neutral

57

Actuator, (clip)

Actuator, (clip)

58

Bracket, Rvs Sw

Bracket, Rvs Sw

59

Болт

Болт

60

Болт

Болт

61

Выключатель

Выключатель

62

Clamp, L:65

Clamp, L:65

63

Relay Assy, Trim

Relay Assy, Trim

64

Крышка

Крышка

66

Cushion, Eng Cntrl

Cushion, Eng Cntrl

67

Зажим

Зажим

68

Relay, Fuel Inj

Relay, Fuel Inj
