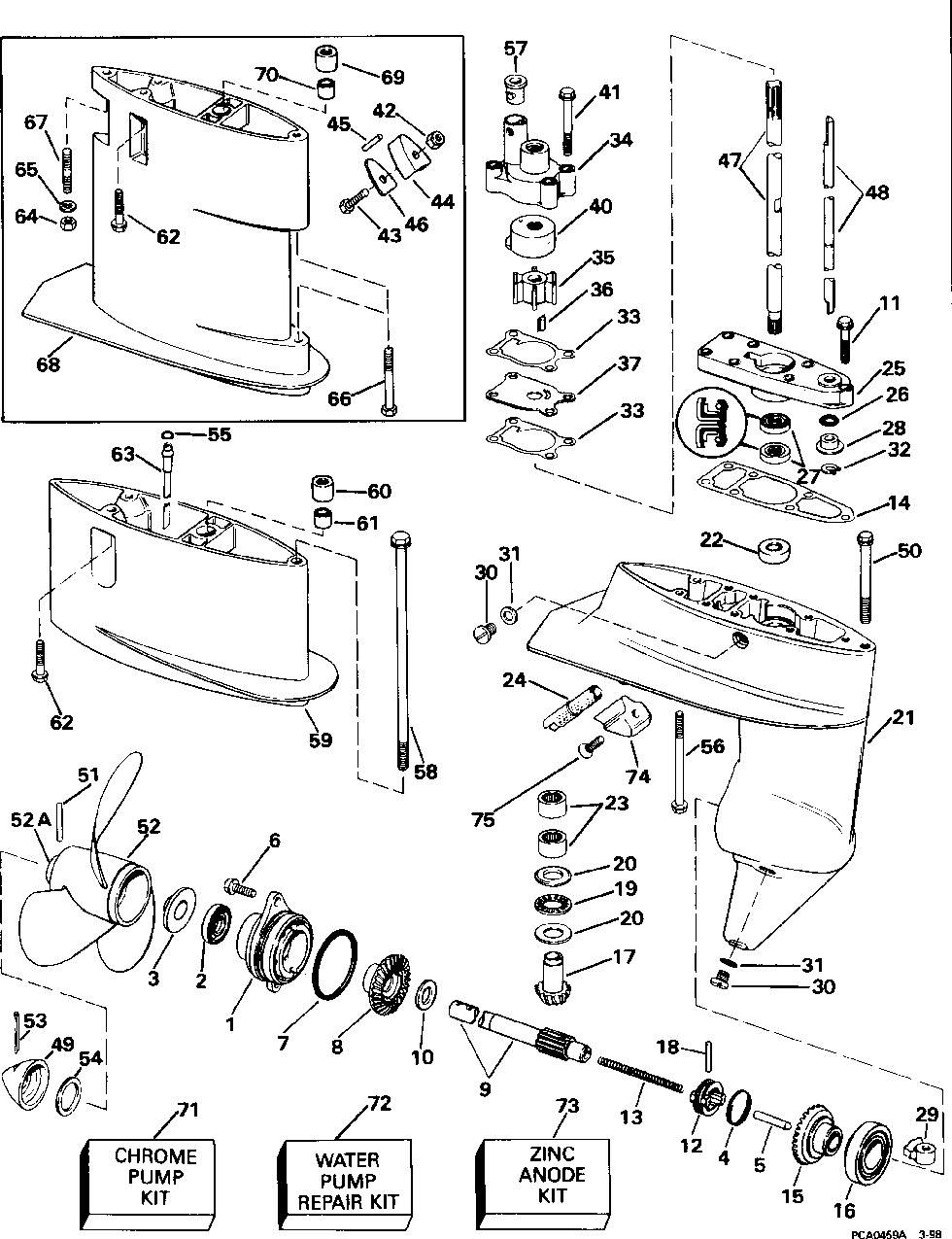

Редуктор

Johnson J8RLECR
Johnson
#oem кодцена
1
0434294
Housing Ay, Bushing
2
0336493
Сальник
3
0336414
Bushing, Flanged
4
0324627
Седло
5
0324623
Плунжер
6
0333706
Винт
7
0322494
Кольцо уплотнительное
8
0396992
Reverse Gear
9
0344200
Вал гребного винта
10
0303361
Упорная шайба
11
0333676
Винт
12
0326340
Рычаг переключения
13
0324624
Пружина
14
0324637
Gasket ( 5 Inch Longer Parts)
15
0438966
Gear Ay, Forward
16
0389858
Roller Brg Ay
17
0336297
Gear, Pinion
18
0324626
Штифт
19
0388000
Thrust Brg Ay-pin
20
0336296
Шайба
21
0434281
Gearcase Ay
22
0391048
Поднипник
23
0386473
Подшипник
24
0396200
Screen & Plug Ay
25
0434152
Cover Ay, Gearcase
26
0305242
Кольцо
27
0324639
Seal-d-shaft
28
0324642
Втулка
29
0324615
Распределитель
30
0307551
Пробка сливная
30
0318544
Drain Screw
31
0333572
Кольцо уплотнительное
31
0311598
Шайба
32
0324616
Кольцо
33
0325040
Gasket ( 5 Inch Longer Parts)
34
0389577
Impeller Hsg
35
0436137
Impeller Kit
36
0331130
Шпонка
37
0324640
Plate-imp Hsg
40
0324641
Чашка крылчатки
41
0331980
Винт
42
0313022
Nut ( 8srl Models Only)
43
0324334
Screw, 5 Pk ( 8srl Models Only)
44
0327501
Exhaust Plug ( 8srl Models Only)
45
0327503
Drain Tube ( 8srl Models Only)
46
0327505
Plate ( 8srl Models Only)
47
0337939
Driveshaft, 15"
47
0337940
Driveshaft, 20" ( 5 Inch Longer Parts)
47
0341212
Driveshaft-25"
48
0336061
Rod, Shift-15"
48
0336060
Rod, Shift-20" ( 5 Inch Longer Parts)
49
0324694
Cap-prop Shft
50
0342540
Винт
51
0324690
Drive Pin 5 Pk
52
0778796
Prop, Al 8x7
52
0778797
Prop, Al 8.5 X 9
52A
0389583
Prop Hub 4.5&7.5hp
53
0306394
Cotter Pin 10 Pk
54
0324689
Упорная шайба
56
0324643
Винт
57
0302497
Grommet ( 5 Inch Longer Parts)
74
0432397
Anode Kit
75
0328725
Винт
435542
0435542
Kit Ay, 5" Ext ( Not Shown 5 Inch Longer Parts)
55
0202893
O-ring ( 5 Inch Longer Parts)
58
0330247
Screw ( 5 Inch Longer Parts)
59
0396308
G-cse Ext Ay ( 5 Inch Longer Parts)
60
0310674
Bushing, Flat-style ( 5 Inch Longer Parts)
61
0326742
Sleeve ( 5 Inch Longer Parts)
63
0320025
Extension Wtr Tube ( 5 Inch Longer Parts)
64
0306422
Nut ( 8srl Models Only)
65
0306470
Lockwasher ( 8srl Models Only)
67
0552913
Stud ( 8srl Models Only)
68
0396032
Gearcase Extension ( 8srl Models Only)
71
0390772
Chrome Pump Kit
72
0396644
Wtr Pump Rep Kit
2
0336493
Сальник
3
0336414
Bushing, Flanged
4
0324627
Retainer(spring)
5
0324623
Плунжер
6
0333706
Винт
7
0322494
Уплотнительное кольцо
8
0396992
Reverse Gear
9
0344200
Вал
11
0333676
Винт
12
0326340
Рычаг переключения
13
0324624
Пружина
14
0324637
Gasket ( 5 Inch Longer Parts)
14
0324637
Gasket ( 5 Inch Longer Parts)
15
0438966
Gear Ay, Forward
16
0389858
Roller Brg Ay
17
0336297
Gear, Pinion
18
0324626
Штифт
19
0388000
Thrust Brg Ay-pin
20
0336296
Шайба
21
0434281
Gearcase Ay
22
0391048
Поднипник
23
0386473
Подшипник
24
0396200
Screen & Plug Ay
25
0434152
Cover Ay, Gearcase
26
0305242
Кольцо
27
0324639
Seal-d-shaft
28
0324642
Втулка
29
0324615
Распределитель
30
0307551
Drain Fill Plg 10p (010 Per Pack)
30
0318544
Drain Screw
31
0333572
O-ring (010 Per Pack)
31
0311598
Washer-10 Pk (010 Per Pack)
32
0324616
Кольцо
33
0325040
Gasket ( 5 Inch Longer Parts)
33
0325040
Gasket ( 5 Inch Longer Parts)
34
0389577
Impeller Hsg
35
0436137
Impeller Kit
36
0331130
Шпонка
37
0324640
Plate-imp Hsg
40
0324641
Чашка крылчатки
41
0331980
Винт
42
0313022
Nut ( 8srl Models Only)
43
0324334
Screw, 5 Pk ( 8srl Models Only) (005 Per Pack)
44
0327501
Exhaust Plug ( 8srl Models Only)
46
0327505
Plate ( 8srl Models Only)
47
0337939
Driveshaft, 15"
47
0337940
Driveshaft, 20" ( 5 Inch Longer Parts)
47
0341212
Driveshaft-25"
47
0337940
Driveshaft, 20" ( 5 Inch Longer Parts)
48
0336060
Rod, Shift-20" ( 5 Inch Longer Parts)
48
0336061
Rod, Shift-15"
48
0336060
Rod, Shift-20" ( 5 Inch Longer Parts)
49
0324694
Cap-prop Shft
50
0342540
Винт
51
0324690
Drive Pin 5 Pk (005 Per Pack)
52
0778796
Prop, Al 8x7/pin
52
0778797
Prop, Al 8.5 X 9
53
0306394
Cotter Pin 10 Pk (010 Per Pack)
54
0324689
Упорная шайба
55
0202893
O-ring ( 5 Inch Longer Parts) (005 Per Pack)
56
0324643
Винт
57
0302497
Grommet ( 5 Inch Longer Parts) (005 Per Pack)
57
0302497
Grommet ( 5 Inch Longer Parts) (005 Per Pack)
58
0330247
Screw ( 5 Inch Longer Parts)
59
0396308
G-cse Ext Ay ( 5 Inch Longer Parts)
60
0310674
Bushing, Flat-style ( 5 Inch Longer Parts)
61
0326742
Sleeve ( 5 Inch Longer Parts)
62
0333676
Screw ( 8srl Models Only)
62
0333676
Screw ( 8srl Models Only)
63
0320025
Extension Wtr Tube ( 5 Inch Longer Parts)
64
0306422
Nut ( 8srl Models Only)
65
0306470
Lockwasher ( 8srl Models Only)
66
0342540
Screw ( 8srl Models Only)
67
0552913
Stud ( 8srl Models Only)
68
0396032
Gearcase Extension ( 8srl Models Only)
69
0310674
Bushing, Flat-style ( 8srl Models Only)
70
0326742
Sleeve ( 8srl Models Only)
72
0396644
Wtr Pump Rep Kit
73
0432397
Anode Kit
74
0432397
Anode Kit
75
0328725
Винт
0435542
0435542
Kit Ay, 5" Ext ( Not Shown 5 Inch Longer Parts)
