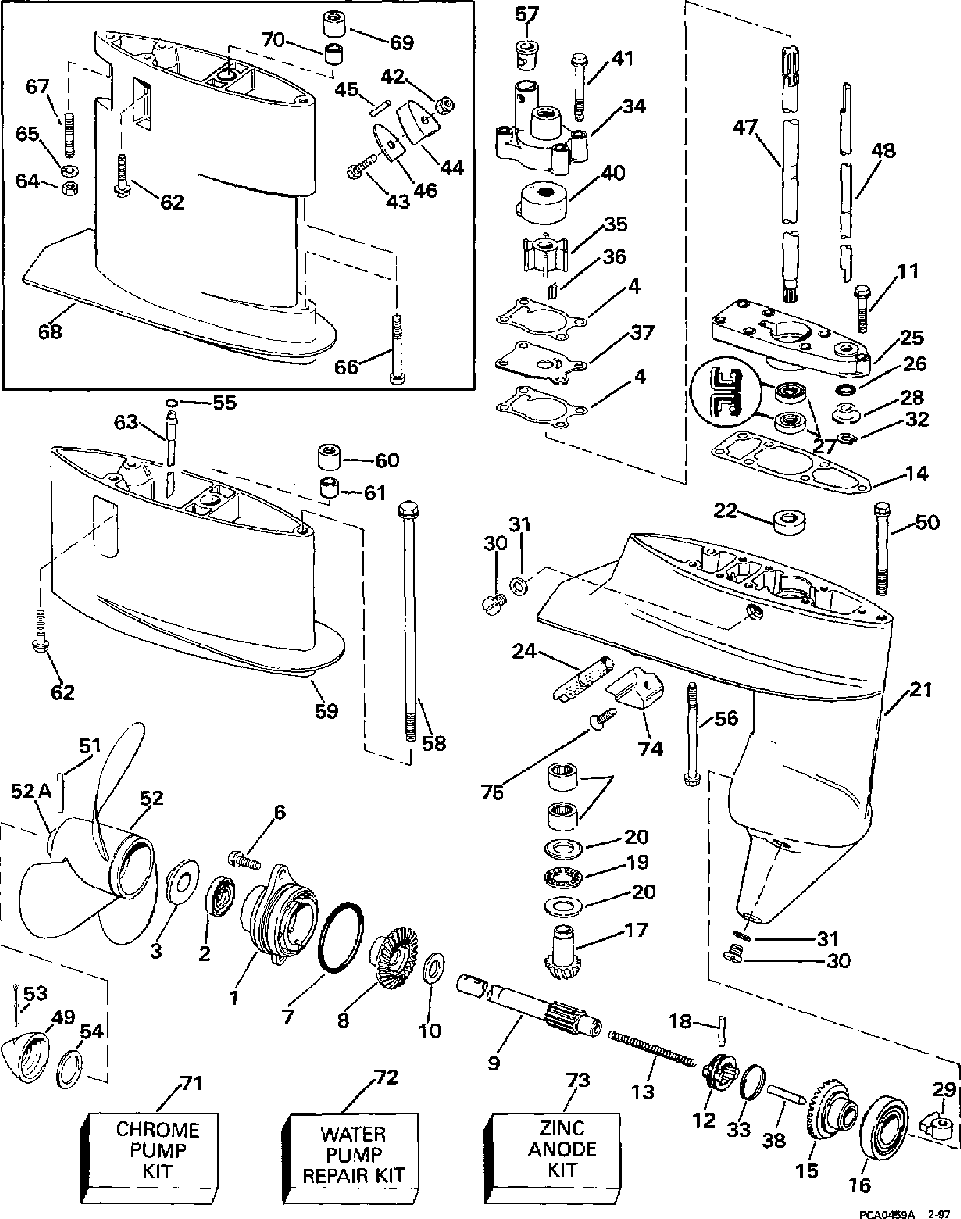

Редуктор

Johnson BJ5DRLEUC
Johnson
#oem кодцена
1
0434294
Housing Ay, Bushing
2
0336493
Сальник
3
0336414
Bushing, Flanged
4
0325040
Gasket ( 5 Inch Longer Parts)
6
0333706
Винт
7
0322494
Кольцо уплотнительное
8
0396992
Reverse Gear
9
0344200
Вал гребного винта
10
0303361
Упорная шайба
11
0333676
Винт
12
0326340
Рычаг переключения
13
0324624
Пружина
14
0324637
Gasket ( 5 Inch Longer Parts)
15
0438966
Gear Ay, Forward
16
0389858
Roller Brg Ay
17
0336297
Gear, Pinion
18
0324626
Штифт
19
0388000
Thrust Brg Ay-pin
20
0336296
Шайба
21
0434281
Gearcase Ay
22
0391048
Поднипник
23
0386473
Подшипник
24
0396200
Screen & Plug Ay
25
0434152
Cover Ay, Gearcase
26
0305242
Кольцо
27
0324639
Seal-d-shaft
28
0324642
Втулка
29
0324615
Распределитель
30
0307551
Пробка сливная
30
0318544
Drain Screw
31
0333572
Кольцо уплотнительное
31
0311598
Шайба
32
0324616
Кольцо
33
0324627
Седло
34
0389577
Impeller Hsg
35
0436137
Impeller Kit
36
0331130
Шпонка
37
0324640
Plate-imp Hsg
38
0324623
Плунжер
40
0324641
Чашка крылчатки
41
0331980
Винт
42
0313022
Nut ( 8srl Only)
43
0324334
Screw, 5 Pk ( 8srl Only)
44
0327501
Exhaust Plug ( 8srl Only)
45
0327503
Drain Tube ( 8srl Only)
46
0327505
Plate ( 8srl Only)
47
0337939
Driveshaft, 15"
47
0337940
Driveshaft, 20"
47
0341212
Driveshaft-25"
48
0336061
Rod, Shift-15"
48
0336060
Rod, Shift-20"
49
0324694
Cap-prop Shft
50
0342540
Винт
51
0324690
Drive Pin 5 Pk
52
0778796
Prop, Al 8x7
52
0778797
Prop, Al 8.5 X 9
52A
0389583
Prop Hub 4.5&7.5hp
53
0306394
Cotter Pin 10 Pk
54
0324689
Упорная шайба
56
0324643
Винт
57
0302497
Grommet ( 5 Inch Longer Parts)
74
0432397
Anode Kit
75
0328725
Винт
435542
0435542
Kit Ay, 5" Ext ( Not Shown 5 Inch Longer Parts)
55
0202893
O-ring ( 5 Inch Longer Parts)
58
0330247
Screw ( 5 Inch Longer Parts)
59
0396308
G-cse Ext Ay ( 5 Inch Longer Parts)
60
0310674
Bushing, Flat-style ( 5 Inch Longer Parts)
61
0326742
Sleeve ( 5 Inch Longer Parts)
63
0320025
Extension Wtr Tube ( 5 Inch Longer Parts)
64
0306422
Nut ( 8srl Models Only)
65
0306470
Lockwasher ( 8srl Models Only)
67
0552913
Stud ( 8srl Models Only)
68
0396032
Gearcase Extension ( 8srl Only 8srl Models Only)
71
0390772
Chrome Pump Kit
72
0396644
Wtr Pump Rep Kit
2
0336493
Сальник
3
0336414
Bushing, Flanged
4
0325040
Gasket ( 5 Inch Longer Parts)
4
0325040
Gasket ( 5 Inch Longer Parts)
6
0333706
Винт
7
0322494
Уплотнительное кольцо
8
0396992
Reverse Gear
9
0344200
Вал
11
0333676
Винт
12
0326340
Рычаг переключения
13
0324624
Пружина
14
0324637
Gasket ( 5 Inch Longer Parts)
14
0324637
Gasket ( 5 Inch Longer Parts)
15
0438966
Gear Ay, Forward
16
0389858
Roller Brg Ay
17
0336297
Gear, Pinion
18
0324626
Штифт
19
0388000
Thrust Brg Ay-pin
20
0336296
Шайба
21
0434281
Gearcase Ay
22
0391048
Поднипник
23
0386473
Подшипник
24
0396200
Screen & Plug Ay
25
0434152
Cover Ay, Gearcase
26
0305242
Кольцо
27
0324639
Seal-d-shaft
28
0324642
Втулка
29
0324615
Распределитель
30
0307551
Drain Fill Plg 10p (010 Per Pack)
30
0318544
Drain Screw
31
0333572
O-ring (010 Per Pack)
31
0311598
Washer-10 Pk (010 Per Pack)
32
0324616
Кольцо
33
0324627
Retainer(spring)
34
0389577
Impeller Hsg
35
0436137
Impeller Kit
36
0331130
Шпонка
37
0324640
Plate-imp Hsg
38
0324623
Плунжер
38
0337940
Driveshaft, 20" ( 5 Inch Longer Parts)
39
0336060
Rod, Shift-20" ( 5 Inch Longer Parts)
40
0324641
Чашка крылчатки
41
0331980
Винт
42
0313022
Nut ( 8srl Only)
43
0324334
Screw, 5 Pk ( 8srl Only) (005 Per Pack)
44
0327501
Exhaust Plug ( 8srl Only)
46
0327505
Plate ( 8srl Only)
47
0337939
Driveshaft, 15"
47
0337940
Driveshaft, 20"
47
0341212
Driveshaft-25"
48
0336061
Rod, Shift-15"
48
0336060
Rod, Shift-20"
49
0324694
Cap-prop Shft
50
0342540
Винт
51
0324690
Drive Pin 5 Pk (005 Per Pack)
52
0778796
Prop, Al 8x7/pin
52
0778797
Prop, Al 8.5 X 9
53
0306394
Cotter Pin 10 Pk (010 Per Pack)
54
0324689
Упорная шайба
55
0202893
O-ring ( 5 Inch Longer Parts) (005 Per Pack)
56
0324643
Винт
57
0302497
Grommet ( 5 Inch Longer Parts) (005 Per Pack)
57
0302497
Grommet ( 5 Inch Longer Parts) (005 Per Pack)
58
0330247
Screw ( 5 Inch Longer Parts)
59
0396308
G-cse Ext Ay ( 5 Inch Longer Parts)
60
0310674
Bushing, Flat-style ( 5 Inch Longer Parts)
61
0326742
Sleeve ( 5 Inch Longer Parts)
62
0333676
Screw ( 8srl Models Only)
62
0333676
Screw ( 8srl Models Only)
63
0320025
Extension Wtr Tube ( 5 Inch Longer Parts)
64
0306422
Nut ( 8srl Models Only)
65
0306470
Lockwasher ( 8srl Models Only)
66
0342540
Screw ( 8srl Models Only)
67
0552913
Stud ( 8srl Models Only)
68
0396032
Gearcase Extension ( 8srl Only 8srl Models Only)
69
0310674
Bushing, Flat-style ( 8srl Models Only)
70
0326742
Sleeve ( 8srl Models Only)
72
0396644
Wtr Pump Rep Kit
73
0432397
Anode Kit
74
0432397
Anode Kit
75
0328725
Винт
0435542
0435542
Kit Ay, 5" Ext ( Not Shown 5 Inch Longer Parts)
