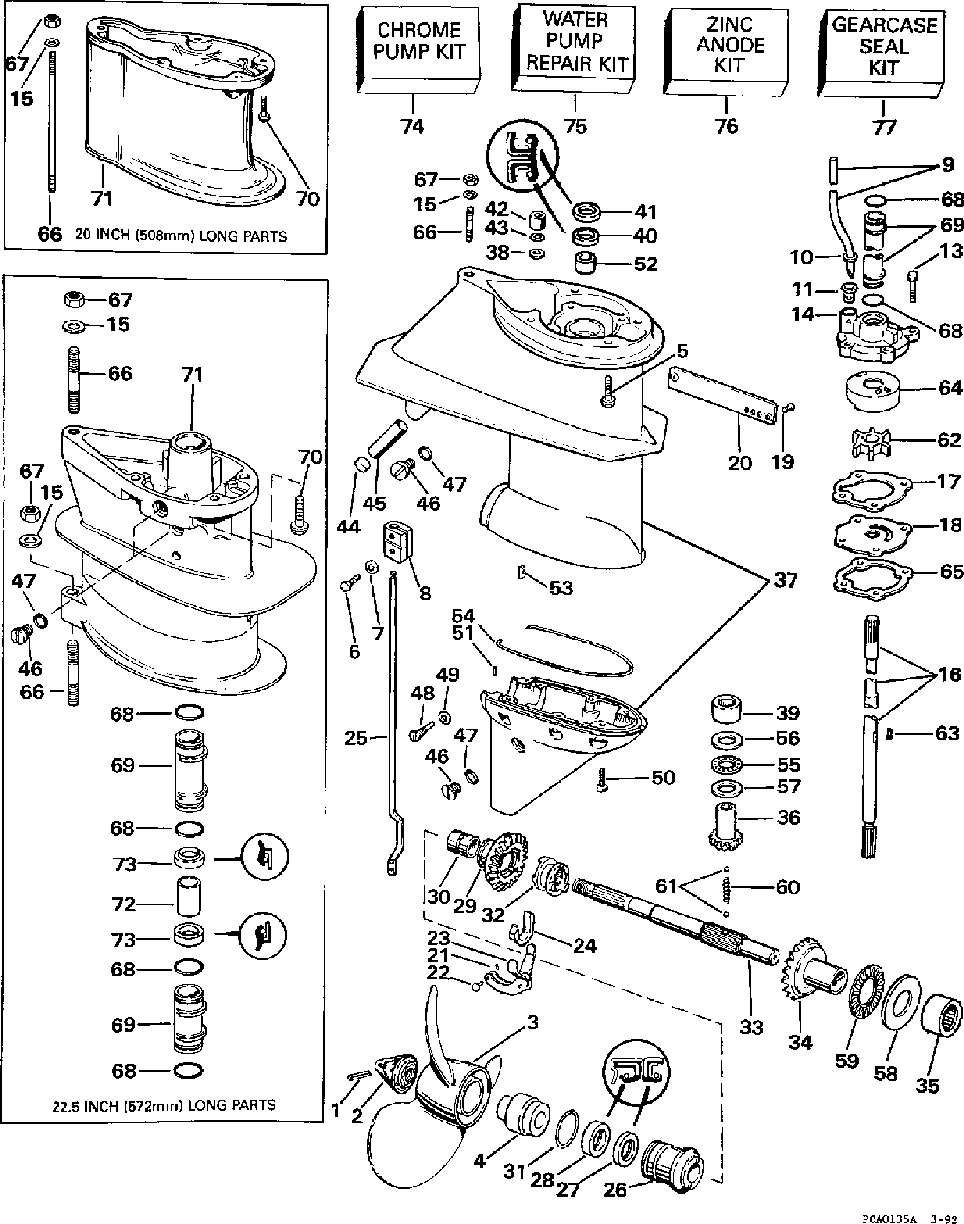

Gearcase - 25rs, 25rw, h25fp

Johnson HJ25RLSV
Johnson
#oem кодцена
1
0306394
Cotter Pin 10 Pk
2
0390294
Гайка гребного винта
3
0763585
Prop Al. 9x9
3
0763589
Prop Al. 9x10
3
0763584
Prop Al. 9.25x11
3
0763590
Prop Al. 9.25x12
3
0395232
Prop-al 25hp 13p
4
0389281
Prop Hub 25 Hp ( Use Only With Propeller P/n 389067)
5
0328333
Винт
6
0304024
Screw ( 20 Inch (508mm) Long Parts)
7
0301551
Lockwasher ( 20 Inch (508mm) Long Parts)
8
0303794
Connector, Shft Rod
9
0395339
Wtr Tube Ay ( Optional)
10
0330658
Washer ( 22.5 Inch (572mm) Long Parts)
11
0302497
Уплотнитель
13
0328725
Винт
14
0330560
Imp Hsg
16
0341650
Driveshaft, 15"
17
0329390
Прокладка
18
0329391
Plate-imp. Hsg ( Stainless Steel)
19
0303587
Винт
21
0306376
Шплинт
22
0302504
Штифт
23
0375755
Lever & Pin A
24
0325014
Зажим
25
0303098
Shift Rod, Low-std ( Optional)
26
0389045
Gcase Head&seal Ay
27
0321459
Oil Retainer
28
0321787
Seal Prop Shaft
29
0325258
Gear-reverse, 3lug
30
0303997
Втулка
31
0321921
Кольцо уплотнительное
32
0325263
Муфта переключения скоростей
34
0390295
Gear&bush-fwd, 3lug
35
0389472
Bearing-fwd Gear
36
0324457
Pinion-driveshaft
37
0432810
G-case & Brg
38
0304764
Прокладка
39
0376856
Pinion Brg
41
0330327
Oil Retainer
42
0304765
Втулка
43
0301877
Кольцо
44
0300314
Заглушка
45
0302757
Водозаборная решетка
46
0307551
Drain Fill Plg 10p ( 22.5 Inch (572mm) Long Parts)
47
0311598
Шайба
48
0308376
Винт
49
0332584
Шайба
50
0330562
Винт
51
0300611
Центрирующая втулка
52
0386071
Подшипник
55
0388027
Thrust Brg Ay
56
0319667
Ff Thrust Washer
57
0322688
Thrust Washer-lwr
58
0324459
Упорная шайба
59
0389470
Подшипник опорный
60
0316505
Пружина
61
0316506
Шарик фиксирующий
62
0395289
Imp & Key
63
0344470
Key, Impeller-blk
64
0328773
Cup-chrome ( Chrome Plated)
64
0328751
Cup ( Stainless Steel)
65
0324449
Gasket-impellr 5pk ( Also Included In Kit 396352)
66
0330060
Stud ( 22.5 Inch (572mm) Long Parts)
67
0552938
Nut ( 22.5 Inch (572mm) Long Parts)
68
0301967
O Ring ( 22.5 Inch (572mm) Long Parts)
69
0324453
Spacer ( 22.5 Inch (572mm) Long Parts)
8
0304081
Connector, Shft Rod ( 20 Inch (508mm) Long Parts)
9
0395340
Wtr Tube Ay ( 20 Inch (508mm) Long Parts)
16
0341649
Driveshaft, 20" ( 20 Inch (508mm) Long Parts)
66
0330558
Stud ( 20 Inch (508mm) Long Parts)
69
0324455
Spacer ( 20 Inch (508mm) Long Parts)
71
0328336
Extension ( 20 Inch (508mm) Long Parts)
325974
0325974
Rubber Mount ( 20 Inch (508mm) Long Parts Not Shown)
325975
0325975
Rubber Mount ( Not Shown 20 Inch (508mm) Long Parts)
47
0333572
O-ring ( 22.5 Inch (572mm) Long Parts)
75
0395270
Kit Ay, Wtr Pump
76
0173029
Zinc Anode Kit Ob
304454
0304454
Lockwasher ( Not Shown)
306643
0306643
Screw ( Not Shown)
332226
0332226
Screw ( Not Shown Optional)
77
0396352
Комплект сальников редуктора
1
0306394
Cotter Pin 10 Pk (010 Per Pack)
2
0390294
Гайка гребного винта
3
0763585
Prop, Al 9x9 3bld
3
0763589
Prop Alum, 9x10
3
0763584
Prop Al. 9.25x11
3
0763590
Prop Ay, Al 9.25x12
4
0389281
Prop Hub 25 Hp ( Use Only With Propeller P/n 389067)
4
0389281
Prop Hub 25 Hp
5
0328333
Винт
6
0304024
Screw ( 20 Inch (508mm) Long Parts) (005 Per Pack)
6
0304024
Screw ( 20 Inch (508mm) Long Parts) (005 Per Pack)
7
0301551
Lockwasher ( 20 Inch (508mm) Long Parts)
7
0301551
Lockwasher ( 20 Inch (508mm) Long Parts)
8
0303794
Connector, Shft Rod
8
0304081
Connector, Shft Rod ( 20 Inch (508mm) Long Parts)
9
0395340
Wtr Tube Ay ( 20 Inch (508mm) Long Parts)
9
0395341
Wtr Tube Ay ( 22.5 Inch (572mm) Long Parts)
9
0395339
Wtr Tube Ay ( Optional)
10
0330658
Washer ( 22.5 Inch (572mm) Long Parts)
10
0330658
Washer ( 22.5 Inch (572mm) Long Parts)
10
0330658
Washer ( 22.5 Inch (572mm) Long Parts)
11
0302497
Grommet (005 Per Pack)
13
0328725
Винт
14
0330560
Imp Hsg
15
0312687
Washer ( 22.5 Inch (572mm) Long Parts)
15
0312687
Washer ( 22.5 Inch (572mm) Long Parts)
15
0312687
Washer ( 22.5 Inch (572mm) Long Parts)
16
0329263
Driveshaft 22.5 ( 22.5 Inch (572mm) Long Parts)
16
0341649
Driveshaft, 20" ( 20 Inch (508mm) Long Parts)
16
0341650
Driveshaft, 15"
17
0329390
Прокладка
18
0324564
Plate ( Chrome Plated)
18
0765642
Plate ( Stainless Steel)
19
0303587
Screw (004 Per Pack)
20
0302505
Крышка
21
0306376
Шплинт
22
0302504
Штифт
23
0375755
Lever & Pin A
24
0325014
Зажим
25
0303098
Shift Rod, Low-std ( Optional)
25
0303257
Shift Rod, Low-long ( 20 Inch (508mm) Long Parts)
25
0328982
Shift Rod-lower ( 22.5 Inch (572mm) Long Parts)
26
0389045
Gcase Head&seal Ay
27
0321459
Oil Retainer
28
0321787
Seal Prop Shaft
29
0325258
Gear-reverse, 3lug
30
0303997
Втулка
31
0321921
O-ring (005 Per Pack)
32
0325263
Муфта переключения скоростей
34
0390295
Gear&bush-fwd, 3lug
35
0389472
Bearing-fwd Gear
36
0324457
Pinion-driveshaft
37
0432810
G-case & Brg
38
0304764
Прокладка
39
0376856
Brg Ay, Needle
40
0321459
Oil Retainer
41
0330327
Oil Retainer
42
0304765
Bushing J 2pk (002 Per Pack)
43
0301877
O Ring (005 Per Pack)
44
0300314
Заглушка
45
0302757
Водозаборная решетка
46
0307551
Drain Fill Plg 10p ( 22.5 Inch (572mm) Long Parts) (010 Per Pack)
46
0307551
Drain Fill Plg 10p ( 22.5 Inch (572mm) Long Parts) (010 Per Pack)
47
0333572
O-ring ( 22.5 Inch (572mm) Long Parts) (010 Per Pack)
47
0311598
Washer-10 Pk (010 Per Pack)
48
0308376
Винт
49
0332584
Washer 5pk (005 Per Pack)
50
0330562
Screw (005 Per Pack)
51
0300611
Шпонка
52
0386071
Подшипник
53
0317728
Magnet
55
0388027
Thrust Brg Ay
56
0319667
Ff Thrust Washer
57
0322688
Thrust Washer-lwr
58
0324459
Упорная шайба
59
0389470
Подшипник опорный
60
0316505
Пружина
61
0316506
Ball Detent (005 Per Pack)
62
0395289
Imp & Key
63
0344470
Key, Impeller-blk
64
0328773
Cup-chrome ( Chrome Plated)
64
0328751
Cup, Imp Hsg ( Stainless Steel)
65
0324449
Gasket-impellr 5pk ( Also Included In Kit 396352) (005 Per Pack)
66
0330060
Stud ( 22.5 Inch (572mm) Long Parts)
66
0330060
Stud ( 22.5 Inch (572mm) Long Parts)
66
0330060
Stud ( 22.5 Inch (572mm) Long Parts)
67
0552938
Nut ( 22.5 Inch (572mm) Long Parts)
67
0552938
Nut ( 22.5 Inch (572mm) Long Parts)
67
0552938
Nut ( 22.5 Inch (572mm) Long Parts)
68
0301967
O Ring ( 22.5 Inch (572mm) Long Parts)
68
0301967
O Ring ( 22.5 Inch (572mm) Long Parts)
68
0301967
O Ring ( 22.5 Inch (572mm) Long Parts)
69
0324455
Spacer ( 20 Inch (508mm) Long Parts)
69
0324453
Spacer ( 22.5 Inch (572mm) Long Parts)
69
0324453
Spacer ( 22.5 Inch (572mm) Long Parts)
70
0328333
Screw ( 22.5 Inch (572mm) Long Parts)
70
0328333
Screw ( 22.5 Inch (572mm) Long Parts)
71
0328336
Extension ( 20 Inch (508mm) Long Parts)
71
0393724
Extension & Stud ( 22.5 Inch (572mm) Long Parts)
72
0328985
Bushing ( 22.5 Inch (572mm) Long Parts)
75
0395270
Kit Ay, Wtr Pump
76
0173029
Zinc Anode Kit Ob
77
0396352
Комплект сальников редуктора
0304454
0304454
Lockwasher ( Not Shown)
0306643
0306643
Screw ( Not Shown)
0325974
0325974
Rubber Mount ( 20 Inch (508mm) Long Parts Not Shown)
0325975
0325975
Rubber Mount ( Not Shown 20 Inch (508mm) Long Parts)
0332226
0332226
Screw ( Not Shown Optional)
