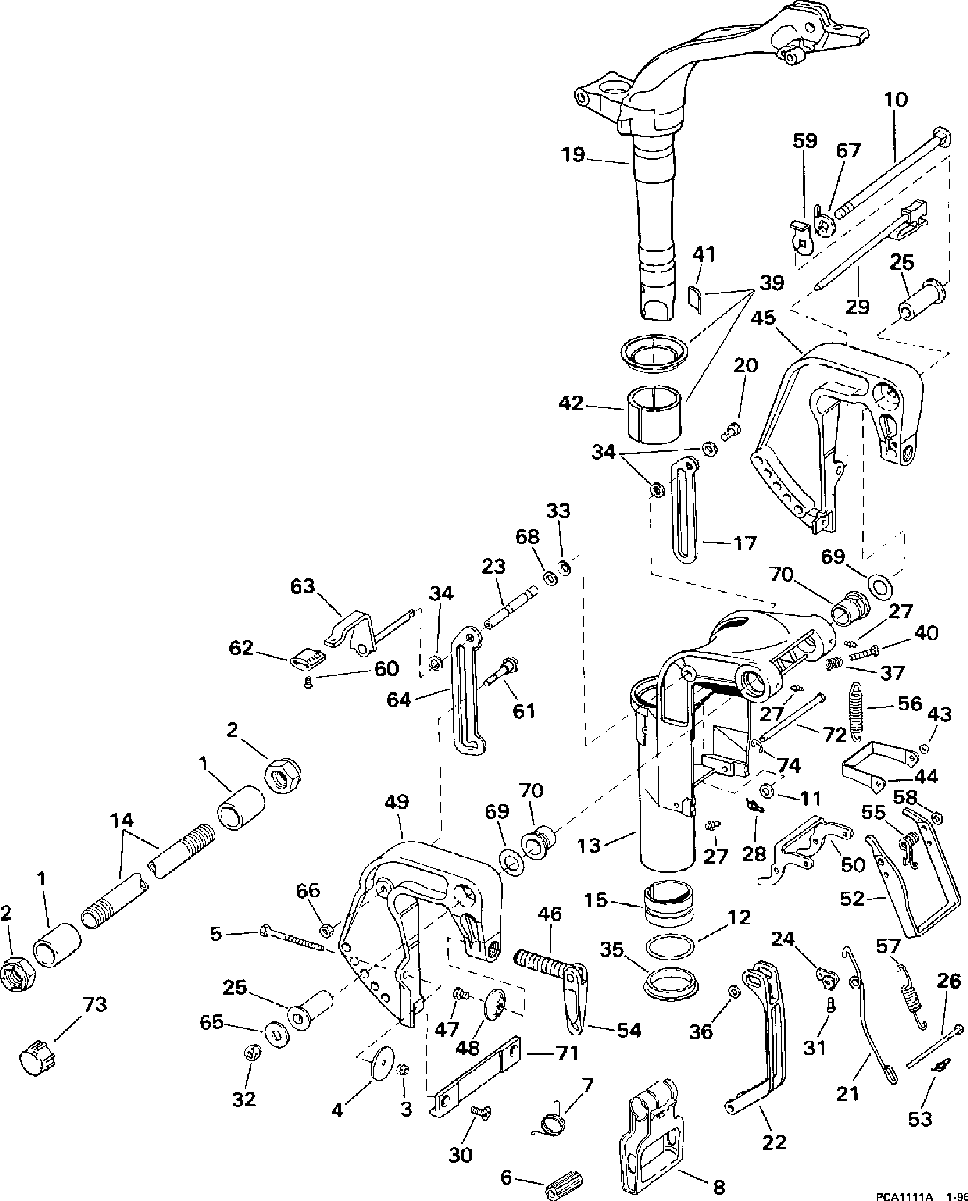

Струбцина

Evinrude L10FRELECM
Evinrude
#oem кодцена
1
0124346
Spacer-tilt Tube ( 9.9 Rel High Thrust Models 15 Re Models)
2
0335554
Nut, Lock ( 9.9 Rel High Thrust Models 15 Re Models)
3
0310702
Nut ( 9.9 Te High Thrust Models 9.9 Rel High Thrust Models 15 Re Models)
4
0315776
Washer Sb ( 9.9 Te High Thrust Models 9.9 Rel High Thrust Models 15 Re Models)
5
0334427
Screw ( 9.9 Te High Thrust Models 9.9 Rel High Thrust Models 15 Re Models)
6
0339024
Spacer-lift Handle ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
7
0338297
Пружина
8
0338298
Handle, Lift
10
0332960
Tilt Bolt ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
11
0343981
Шайба
12
0301917
Кольцо
13
0338887
Bracket, Swivel
14
0351896
Tube, Tilt Sst ( 9.9 Rel High Thrust Models 15 Re Models)
15
0309967
Втулка
17
0328289
Support Bracket
19
0438612
Bracket Ay, Strg
20
0328290
Штифт
21
0320416
Wire Rev Lock Rel
22
0338874
Handle, Carrying
23
0328285
Втулка
24
0319049
Bellcrank
25
0325914
Bushing ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
26
0326943
Штифт
27
0313607
Фитинг
28
0333774
Clip 10pk
29
0432453
Tilt Pin Ay
30
0308684
Винт
31
0319108
Screw-bellcrk
32
0325451
Lock Nut ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
34
0308052
Шайба
35
0309966
Шайба
37
0551113
Пружина
39
0397736
Block, Washer&seal
40
0321531
Screw Strg Adj
41
0332662
Friction Block
42
0332663
Upper Liner
44
0319050
Locking Lvr ( 9.9 Rope Models 15 Rope & Te Models 15 Re Models)
45
0328268
Stern Brkt-port
46
0433675
Kit Ay, Clampscrew
46
0391421
C-screw Kit, Sst ( Optional)
47
0321922
Screw-clmpscrw 5pk
48
0337017
Plate, Swivel
49
0328269
Stern Brkt-stbd
50
0322949
Link-reverse Lock ( 9.9 Rope Models 15 Rope & Te Models 15 Re Models)
50
0393204
Lock Lever & Link ( 9.9 Te High Thrust Models 9.9 Rel High Thrust Models)
52
0338657
Link
54
0398001
Clampscrew Handle
55
0320427
Пружина
56
0338489
Spring ( 9.9 Rope Models 15 Rope & Te Models 15 Re Models)
56
0340219
Spring ( 9.9 Te High Thrust Models 9.9 Rel High Thrust Models)
57
0320428
Пружина
59
0325017
Washer-tilt Pin ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
60
0319227
Винт
61
0319047
Штифт
62
0328048
Ручка
63
0437797
Lever&shaft Ay
64
0338563
Link, Tilt Lock
65
0314099
Washer ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
66
0313022
Гайка
67
0300364
Link ( 9.9 Rope Models 9.9 Te High Thrust Models 15 Rope & Te Models)
68
0303884
Шайба
69
0319699
Ff Washer
70
0319787
Bushing Swiv Brkt
71
0309738
Пластина
72
0319055
Штифт
73
0317894
Cap ( 9.9 Rel High Thrust Models 15 Re Models)
74
0203949
Седло
33
0312977
Шайба
36
0310540
Шайба
43
0310540
Шайба
53
0333774
Clip 10pk
58
0204293
Washer ( 9.9 Rope Models 15 Rope & Te Models 15 Re Models)
