Редуктор Каталог оригинальных запчастей для лодочных моторов Evinrude SE200WTPXG (1998)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1998
SE200WTPXG

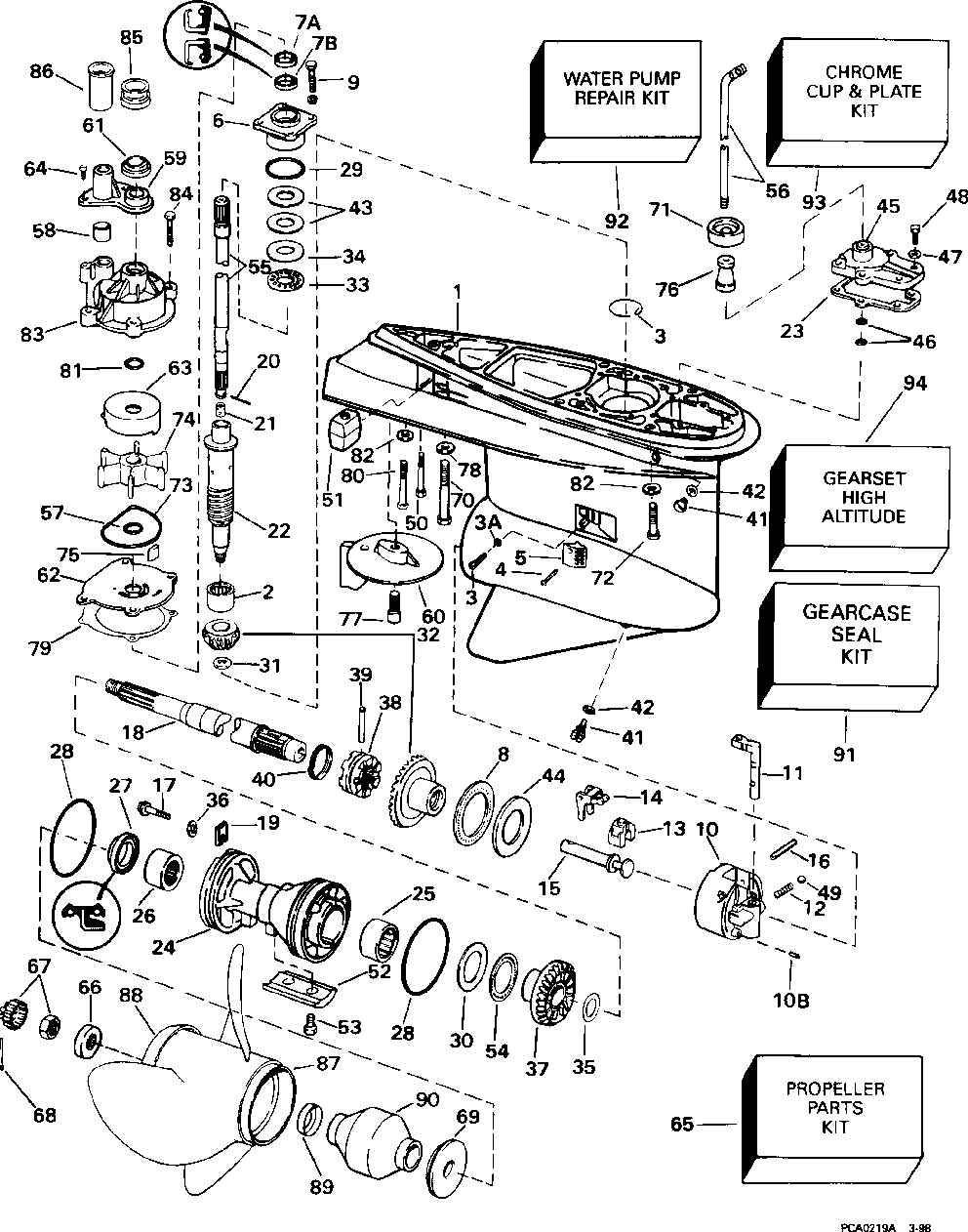

Редуктор
Редуктор

Редуктор

Evinrude SE200WTPXG

oem код

название

цена

439505

5005401

G-case V6/std/offs ( Not Shown Models With Pinion Bearing Retaining Ring)

5007022

Gcase & Brg Ay, "o" ( Models With Pinion Bearing Retaining Ring)

0387817

Roller Brg Ay

0338778

Ring, Retainer ( Models With Pinion Bearing Retaining Ring)

0324852

Retaining Screw ( Models With Pinion Bearing Retaining Screw)

Шайба

Винт

Screen, Water Inlet

Screen, Water Inlet ( Optional)

Ds Brg Hsg&seal Ay

Oil Retainer

Oil Retainer

Thrust Brg-fwd Gr

Винт

Hsg.& Bearing Ay

10B

Штифт

Detent

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Pin-shifter Arm

Screw, Brg Carrier

Propshaft Ay, Serv

Retaining Tab

Pin, Roll

Retainer, Dr Sft

Driveshaft, Lower

Прокладка

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal, Propshaft

Кольцо уплотнительное

Кольцо

Упорная шайба

Nut Pinion

Gearset, V6 Fwd&pin

Thrust Brg Ay

Упорная шайба

Шайба

Шайба

Gear, Reverse .54

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Шайба

Shim-pinion-003

Shim-pinion-004

Shim 005

Упорная шайба

Cover Ay, Shift Rod

Кольцо уплотнительное

Шайба

Винт

Шарик

Screw, Anode

Anode&insert Ay

Анодная пластина

Винт

Подшипник

Upper D/s Kit 20" ( 200wtpl Models Only)

5007672

Driveshaft Ay ( 200wtpx Models Only)

0329864

Shift Rod - 20" ( 200wtpl Models Only)

0329865

Shift Rod, 25" ( 200wtpx Models Only)

0302035

O Ring ( Contents Of S.s. Pump Kit)

0314008

Grommet ( Contents Of S.s. Pump Kit)

0338893

Cover, Impeller Hsg ( Contents Of S.s. Pump Kit)

0338742

Tab, Trim-std

0320943

Grommet ( Contents Of S.s. Pump Kit)

0338552

Plate Water Pump ( Chrome Plated Contents Of Chrome Pump Kit)

0338485

Plate, Water Pump ( Optional Contents Of S.s. Pump Kit)

0338551

Cup Imp Housing ( Chrome Plated Contents Of Chrome Pump Kit)

0338486

Cup, Imp Housing ( Optional Contents Of S.s. Pump Kit)

0306643

Screw ( Contents Of S.s. Pump Kit)

Kt Ay, V6prop Hdwe

Spacer Prop Nut

Prop Nut & Keeper

Cotter Pin 10 Pk

Bushing, Thrust ( Renegade Offshore & All 3-blade)

0128777

Bushing, Thrust ( Renegade Bass & Shooter Only)

0331998

Винт

0321008

Grommet Exh Hsg ( Contents Of S.s. Pump Kit)

0331999

Винт

0331353

Seal ( Contents Of S.s. Pump Kit)

5001593

Kit Ay, Impeller ( Contents Of S.s. Pump Kit)

0331107

Imp Key ( Contents Of S.s. Pump Kit)

0321122

Spacer-shift Rod ( 200wtpx Models Only)

0313715

Винт

0330265

Шайба

0338484

Gasket, Wtr Pmp 5pk ( Contents Of S.s. Pump Kit Contents Of Chrome Pump Kit)

0330263

Винт

0331188

O-ring-thermostat ( Contents Of S.s. Pump Kit)

0330266

Шайба

0435990

Housing Ay, Implr ( 200wtpl Models Only Contents Of S.s. Pump Kit)

0435959

Housing Ay, Implr ( 200wtpx Models Only Contents Of S.s. Pump Kit)

0338601

Grommet ( 200wtpx Models Only Contents Of S.s. Pump Kit)

0354580

Sleeve ( 200wtpx Models Only Contents Of S.s. Pump Kit)

0765188

Prop Ay, Al 14.5x19 ( Refer To Omc Genuine Parts Propeller Chart)

Converging Ring

Гильца

Prop Hub, 15 Spline

Bushing Ay, Prop ( Renegade Offshore & All 3-blade)

0431730

Prop Hub Shtr ( Renegade Bass & Shooter Only)

5006373

Kit Ay, Seal-gc

5001594

Kit Ay, Water Pump ( 200wtpl Models Only Contents Of S.s. Pump Kit)

5001595

Kit Ay, Water Pump ( 200wtpx Models Only Contents Of S.s. Pump Kit)

0435526

Cup & Plate Ay ( Optional)

0438493

Gearset Hi-alt V6 ( Optional)

0354731

Уплотнительное кольцо

5007968

Housing Ay, Implr ( 200wtpx Models Only Contents Of S.s. Pump Kit)

0302325

Screw ( Contents Of S.s. Pump Kit)

439979

5005401

G-case*v6/std/offs ( Not Shown Models With Pinion Bearing Retaining Screw)
