Корпус редуктора-Стандартное вращение Каталог оригинальных запчастей для лодочных моторов Evinrude E300PLEOR (1995)

Главная
Каталог оригинальных запчастей для лодочных моторов
Evinrude
1995
E300PLEOR

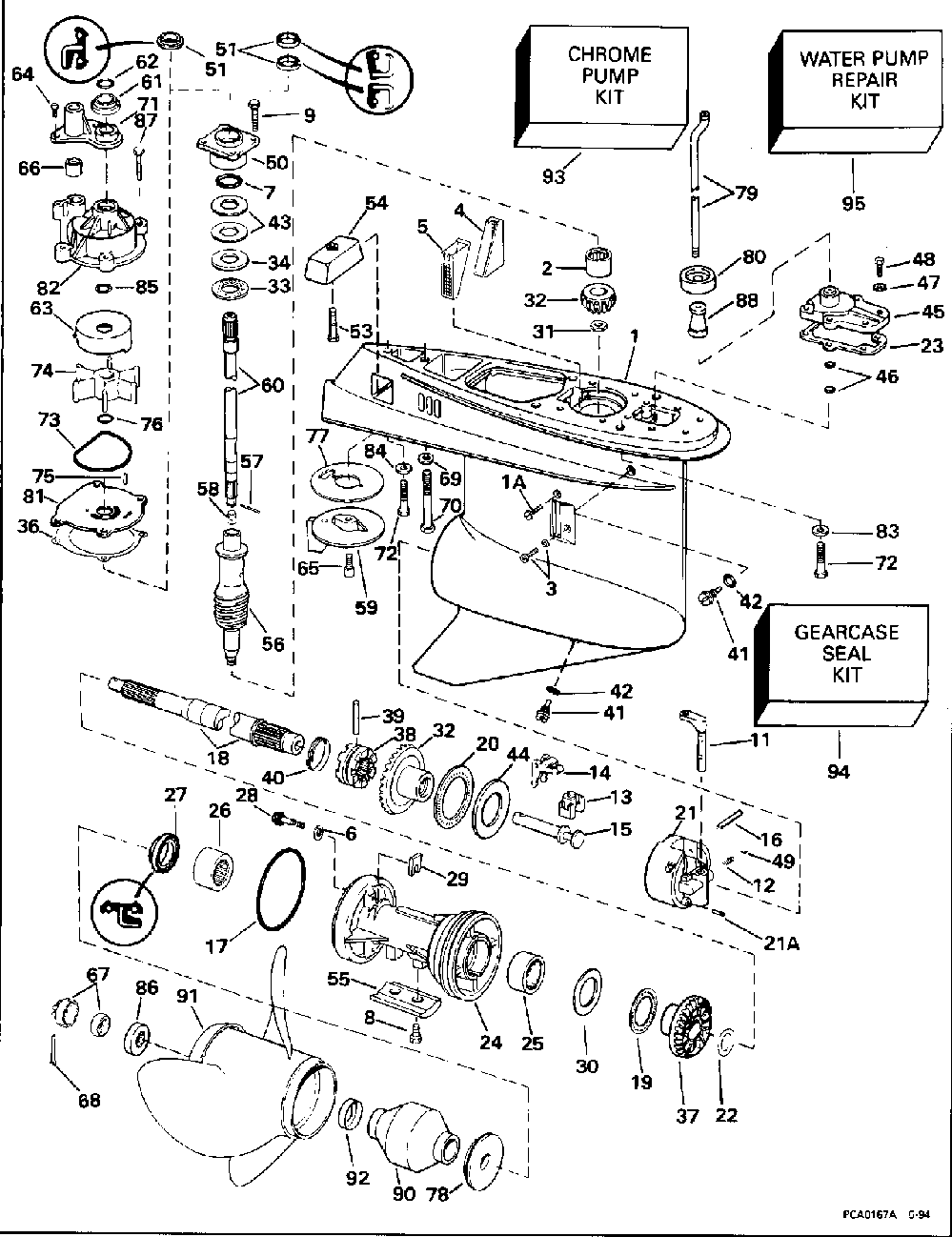

Корпус редуктора-Стандартное вращение
Корпус редуктора-Стандартное вращение

Корпус редуктора-Стандартное вращение

Evinrude E300PLEOR

oem код

название

цена

0123273

Sl-screw-cont Hsg

0391471

Roller Brg

0324852

Retaining Screw

332584

0332584

Washer 5pk ( Not Shown Contents Of Gearcase Seal Kit)

0333234

Screen ( 25 In. Models Only)

0333233

Screen ( 25 In. Models Only)

0328743

Шайба

0314728

O Ring ( Contents Of Gearcase Seal Kit)

Винт

Винт

Detent-shifter

Пружина

Cradle-shift

Shifter-lever

Shaft-shifter

Штифт

O-ring ( Contents Of Gearcase Seal Kit)

5004765

Propshaft Ay, Serv

0382408

Подшипник

0391473

Подшипник

21A

0331880

Штифт

0336565

Шайба

0352165

Gasket ( Contents Of Gearcase Seal Kit)

Hsg Ay, Propshaft

Подшипник игольчатый

Подшипник игольчатый

Seal, Propshaft ( Contents Of Gearcase Seal Kit)

Screw, Brg Carrier

Retaining Tab

Упорная шайба

Nut Pinion

Gearset, Fwd&pin

Thrust Brg Ay

Упорная шайба

Gasket, Wtr Pmp 5pk ( Contents Of Gearcase Seal Kit Contents Of Water Pump Repair Kit)

0336569

Шестерня заднего хода

Shifter-clutch Dog

Штифт

Пружина

Drain Screw

Шайба

Shim-pinion-003

Shim-pinion-004

Shim 005

Cover Ay, Shift Rod

O-ring ( Contents Of Gearcase Seal Kit)

Шайба

Винт

Шарик

Ds Brg Hsg&seal Ay ( Early Production Double Seal)

0329923

Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)

0329922

Oil Retainer ( Contents Of Gearcase Seal Kit Early Production Double Seal)

0341280

Seal, Driveshaft ( Contents Of Gearcase Seal Kit Late Production Single Seal)

Винт

Анодная пластина

Анодная пластина

Driveshaft, Lower

Pin, Roll

Retainer, Dr Sft

Trim Tab, V8 Std

Grommet ( Contents Of Water Pump Repair Kit)

0310585

Кольцо

0338486

Cup, Imp Housing ( Stainless Steel Contents Of Water Pump Repair Kit)

0338551

Cup Imp Housing ( Chrome Plated)

0306643

Screw ( Contents Of Water Pump Repair Kit)

0313715

Винт

0314008

Grommet ( Contents Of Water Pump Repair Kit)

Prop Nut & Keeper

Cotter Pin 10 Pk

Шайба

Винт

Cover, Impeller Hsg ( Contents Of Water Pump Repair Kit)

0331999

Винт

0331353

Seal ( Contents Of Water Pump Repair Kit)

5001593

Kit Ay, Impeller ( Contents Of Water Pump Repair Kit)

0331107

Imp Key ( Contents Of Water Pump Repair Kit)

0302035

O Ring ( Contents Of Water Pump Repair Kit)

Уплотнение

Bushing, Thrust

Bushing, Thrust

Rod, Shift-30" ( 30 In. Models Only)

0321008

Grommet Exh Hsg ( Contents Of Water Pump Repair Kit)

0338485

Plate, Water Pump ( Stainless Steel Contents Of Water Pump Repair Kit)

0338552

Plate Water Pump ( Chrome Plated)

0435990

Housing Ay, Implr ( 20 In. Models Only Contents Of Water Pump Repair Kit)

0435959

Housing Ay, Implr ( 25 In. Models Only 30 In. Models Only Contents Of Water Pump Repair Kit)

0330266

Шайба

0331188

O-ring-thermostat ( Contents Of Water Pump Repair Kit)

0320570

Spacer Prop Nut

0321122

Spacer-shift Rod ( 25 In. Models Only 30 In. Models Only)

Bushing Ay, Prop

Prop Hub, 15 Spline

Prop Hub Shtr

Converging Ring

Гильца

Cup & Plate Ay

Kit Ay, Seal-gc ( Early Production Double Seal)

5001594

Kit Ay, Water Pump ( 20 In. Models Only)

5001595

Kit Ay, Water Pump ( 25 In. Models Only 30 In. Models Only)

0435822

0354731

O-ring ( Contents Of Gearcase Seal Kit)

0431735

0326733

5000617

( 20 In. Models Only)

5000625

( 25 In. Models Only)

0435772

Kit, Up Dshaft 30 ( 30 In. Models Only)

0330028

Shift Rod 20" ( 20 In. Models Only)

0330029

( 25 In. Models Only)

5007968

Housing Ay, Implr ( 25 In. Models Only 30 In. Models Only Contents Of Water Pump Repair Kit)

0326785

Шайба

0302325

Screw ( Contents Of Water Pump Repair Kit)

436770

5000358

( Not Shown)
