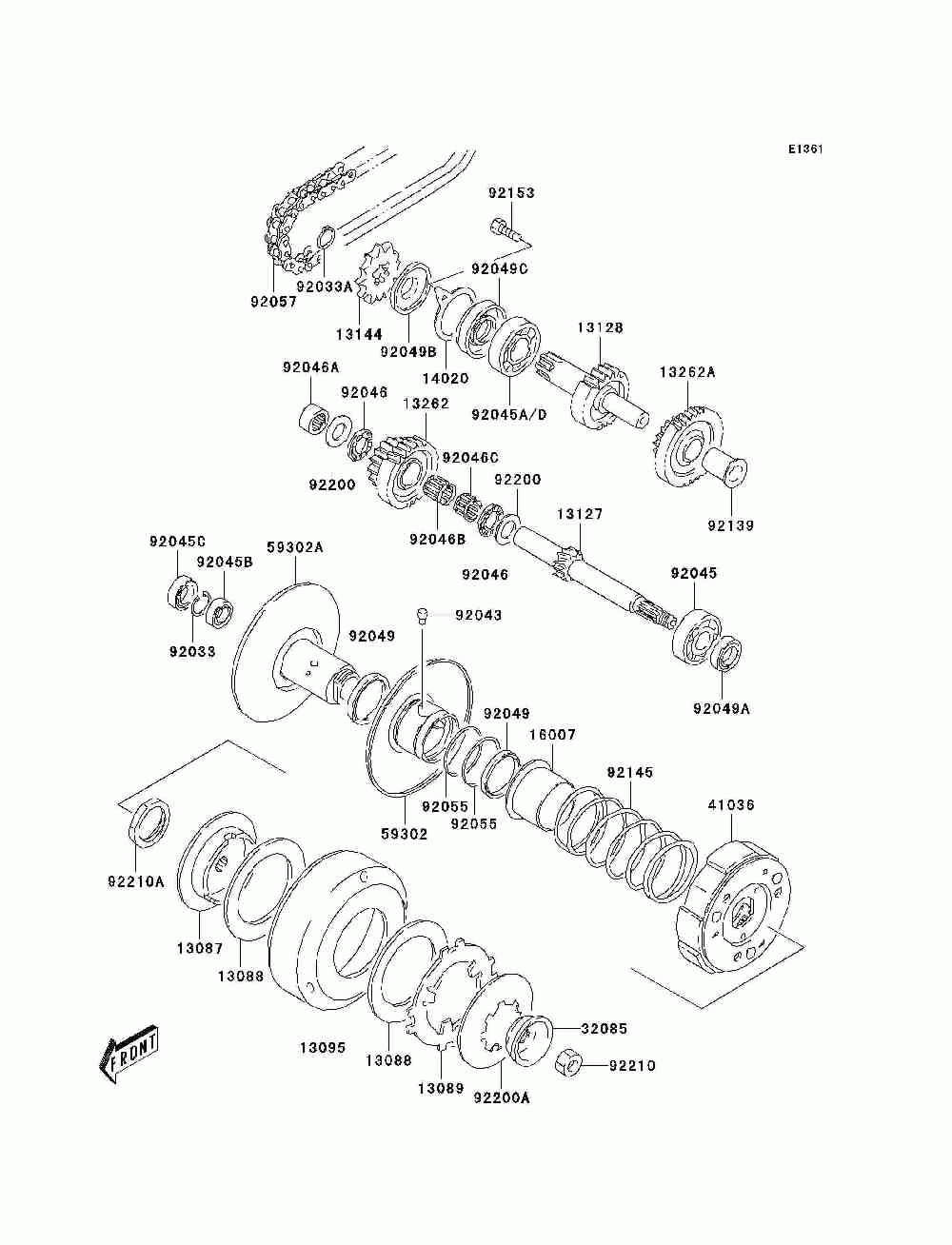

ТРАНСМИССИЯ

Kawasaki KFX80 (KSF80-A3)
Kawasaki
#oem кодцена
13087
13087-S002
Hub-clutch
13088
13088-S002
Plate-friction, Limite
13089
13089-S002
Plate-clutch, Limiter
13095
13095-S005
Корпус
13127
13127-S005
Shaft-transmission In
13128
13128-S007
Shaft-transmission Ou
13144
13144-S004
Sprocket-output, 10t-5
13262
13262-S002
Gear-transmission Spu
13262A
13262-S003
Gear-transmission Spu
14020
14020-S005
Retainer, Drive Shaft
16007
16007-S004
Seat-spring, Movable D
32085
32085-S006
Stopper, Limiter Clutc
41036
41036-S005
Hub-assy
59302
59302-S009
Sheave-comp, Movable D
59302A
59302-S010
Sheave-comp, Fixed Dri
92033
92033-S004
Кольцо
92033A
92033-S020
Кольцо
92043
92043-S030
Pin, Movable Driven
92045
92045-S015
Bearing-ball, 15x42x13
92045A
92045-S017
Bearing-ball, 20x47x14
92045B
92045-S041
Bearing-ball, Fixed Dr
92045C
92045-S042
Bearing-ball, Fixed Dr
92046
92046-S006
Bearing-needle, 15x28x
92046A
92046-S011
Bearing-needle, Shaft
92046B
92046-S012
Bearing-needle, Final
92046C
92046-S013
Bearing-needle, Final
92049
92049-S036
Seal-oil, Movable Driv
92049A
92049-S037
Сальник
92049B
92049-S039
Seal-oil, Drive Shaft
92049C
92049-S045
Seal-oil, Drive Shaft
92055
92055-S020
Ring-o, D:1.5, Id:39.7
92057
92057-S009
Chain, Drive, 36le
92139
92139-S017
Bushing, Idler Drive
92145
92145-S087
Spring, Movable Driven
92153
92153-S126
Болт
92200
92200-S114
Washer, Final Drive Ge
92200A
92200-S115
Шайба
92210
92210-S083
Nut, Clutch Housing
92210A
92210-S084
Nut, Shoe Clutch
92153
92153-S588
Болт
