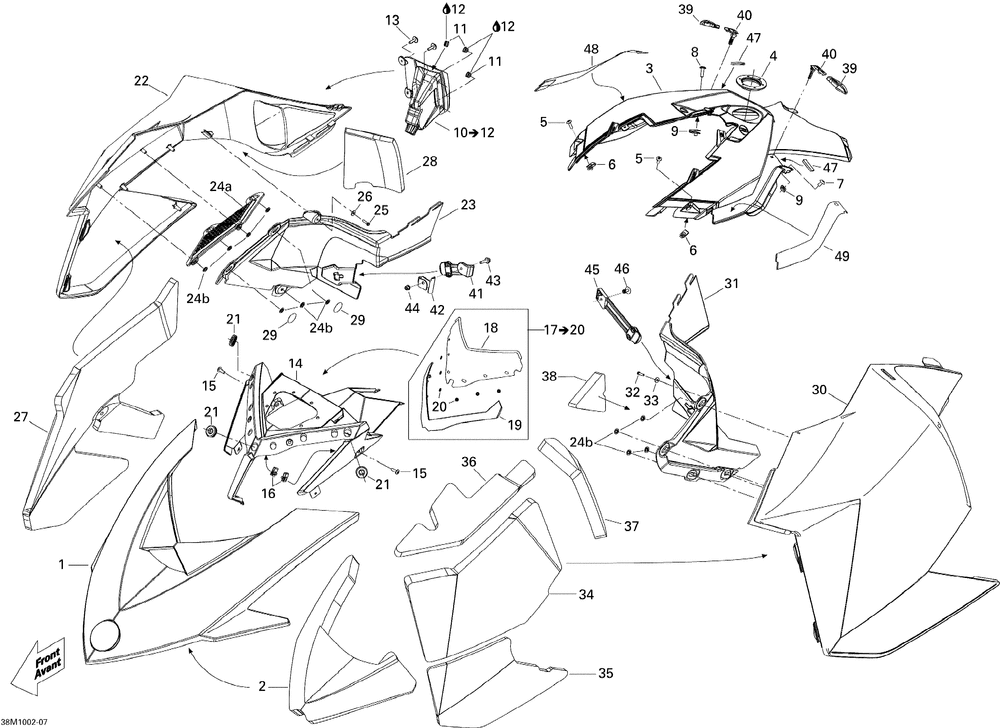

09- hood 600ho etec

Ski-Doo (Bombardier) MX Z X 600HO ETEC
Ski-Doo (Bombardier)
#oem кодцена
1
517304530
Капот (black-black Model )
1
517304531
Capot *hood (white-white Model )
2
517303990
Поролон
3
517303922
Console *console (600ho Etec, Black-black Model )
3
517304115
Console *console (600ho Etec, White-white Model )
4
517304518
Гайка
5
250000128
Винт Torx (отпуск.по 10 шт)
6
250000048
Гайка пружинная M6x1.0
7
250000129
Винт Torx (отпуск.по 10 шт)
10
517304322
Console Droite *console-rh (includes 10 To 12, Manual Starter )
11
275500241
Заглушка
12
413408300
Loctite Bl-max *loctite Bl.max
13
250000113
Screw Plastite Type K-40 M4 X 16 (manual Starter )
14
517303603
Support Ind. *indicator Support (black-black Model )
14
517304415
Support Ind. *indicator Support (white-white Model )
17
517304227
Pare-brise *windshield (includes 17 To 20, Black-black Model )
17
517304226
Pare-brise *windshield (includes 17 To 20, White-white Model )
19
860200089
Суппорт
20
732610072
Гайка
21
517303756
Втулка
22
517304029
Панель прав. (black-black Model )
22
517304210
Panneau Droit *rh.panel (black-black Model, With Electric Starter 600ho Etec )
22
517304419
Panneau Droit *rh.panel (white-white Model, With Electric Starter 600ho Etec )
22
517304422
Panneau Droit *rh.panel (white-white Model )
23
517303671
Панель прав. (black-black Model )
23
517304420
Panneau Droit *rh.panel (white-white Model )
25
241141660
Винт K40 X 16
26
234042600
Шайба
27
517304280
Поролон
28
517303982
Поролон
29
518325560
Rondelle *adhesive Patch
30
517304030
Панель лев. (black-black Model )
30
517304426
Panneau Gauche *lh.panel (white-white Model )
31
517303673
Панель лев. (black-black Model )
31
517304427
Panneau Gauche *lh.panel (white-white Model )
34
517303983
Поролон
35
517303984
Поролон
36
517303985
Поролон
37
517303986
Поролон
38
517303987
Поролон
39
860200239
Embout Loquet *latch (black-black Model )
39
517304435
Embout *end Piece (white-white Model )
40
517303981
Защелка панели
41
517303612
Защелка панели
42
517304221
Суппорт защелки
43
207652044
Винт
44
233251414
Гайка
45
517303808
Защелка панели
46
293150108
Заклепка 3/16
47
517304105
Decalque *console Decal (white-white Model )
48
517304103
Decalque Droit *rh.decal (white-white Model )
49
517304104
Decalque Gauche*lh.decal (white-white Model )
24a
517303622
Решетка
8
250000128
Винт Torx (отпуск.по 10 шт)
9
250000048
Гайка пружинная M6x1.0
15
250000128
Винт Torx (отпуск.по 10 шт)
16
250000048
Гайка пружинная M6x1.0
19
517303757
Суппорт
32
241141660
Винт K40 X 16
33
234042600
Шайба
34
517304887
Поролон
24b
732610072
Гайка
