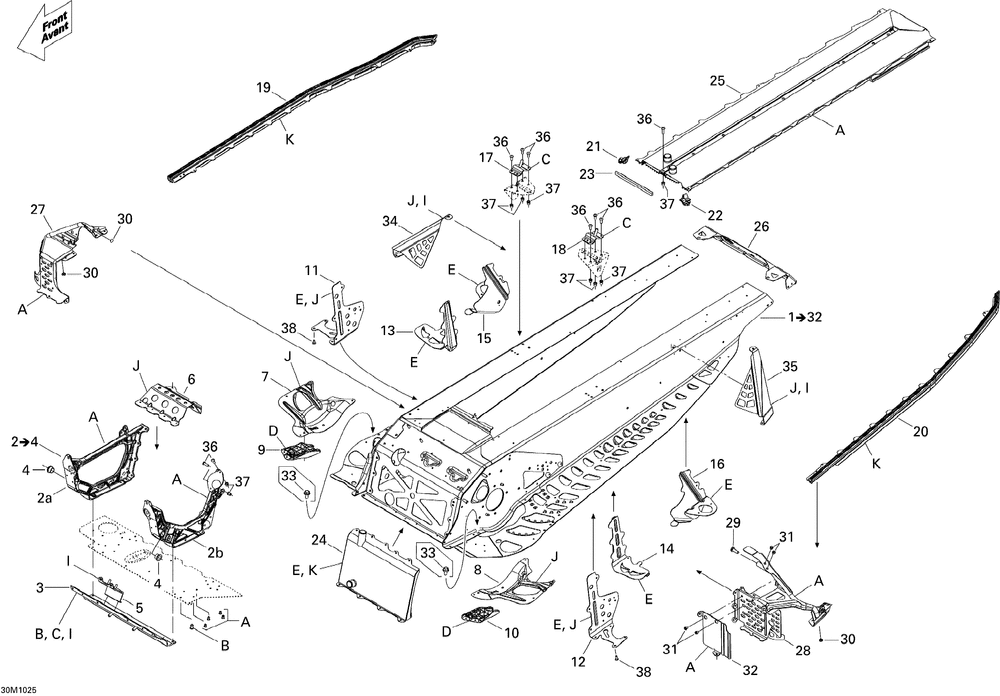

Рама

Ski-Doo (Bombardier) MX Z X 600RS

Рама

#

oem код

название

цена

1

Chassis *frame Service (includes 1 To 32 )

Chassis *frame Service (includes 1 To 32 )

2

Module E *module E (includes 2 To 4 )

Module E *module E (includes 2 To 4 )

3

Traverse Avant *front Member

Traverse Avant *front Member

4

Втулка уплотнительная

Втулка уплотнительная

5

Support Mag *mag Support

Support Mag *mag Support

6

Traverse Centr.*cross-link

Traverse Centr.*cross-link

7

Renfort Dr *reinforcement

Renfort Dr *reinforcement

8

Renfort Ga *reinforcement

Renfort Ga *reinforcement

9

Deflecteur Dr. *rh Deflector

Deflecteur Dr. *rh Deflector

A

Rivet Stavex *stavex Rivet

Rivet Stavex *stavex Rivet

B

Rivet Hemlock *rivet-hemlock 6.5mm

Rivet Hemlock *rivet-hemlock 6.5mm

C

Заклепка

Заклепка

D

Заклепка 3/16

Заклепка 3/16

E

Заклепка

Заклепка

F

Rivet Henrob *rivet-henrob

Rivet Henrob *rivet-henrob

G

Rivet Henrob *henrob Rivet

Rivet Henrob *henrob Rivet

H

Заклепка

Заклепка

I

Rivet Hemlok *hemlok Rivet

Rivet Hemlok *hemlok Rivet

J

Заклепка

Заклепка

K

Magna-lok 6 *magna-lok 6

Magna-lok 6 *magna-lok 6

L

Monobolt 6.4 X *monobolt 6.4

Monobolt 6.4 X *monobolt 6.4

10

Deflecteur Ga. *lh Deflector

Deflecteur Ga. *lh Deflector

11

Attache Droite *rh Retainer

Attache Droite *rh Retainer

12

Attache Gauche *lh.support

Attache Gauche *lh.support

13

Renfort Droite *rh Reinforce.

Renfort Droite *rh Reinforce.

14

Renfort Droite *lh Reinforce.

Renfort Droite *lh Reinforce.

15

Attache Dr *rh Support

Attache Dr *rh Support

16

Attache Ga *lh Support

Attache Ga *lh Support

17

Embase Arrire *rear Base

Embase Arrire *rear Base

18

Embase Arrire *rear Base

Embase Arrire *rear Base

19

Rouleau Droit *roller-rh

Rouleau Droit *roller-rh

20

Rouleau *roller-lh

Rouleau *roller-lh

21

Joint Droit *seal Rh

Joint Droit *seal Rh

22

Joint Gauche *seal Lh

Joint Gauche *seal Lh

23

Joint Etanche *neoprene Seal

Joint Etanche *neoprene Seal

24

Radiateur Avant*front Radiator

Radiateur Avant*front Radiator

25

Radiateur Arr.s*rear Rad. Weld

Radiateur Arr.s*rear Rad. Weld

26

Capuchon *rear Cap

Capuchon *rear Cap

27

Etrier Droit *rh.stirup

Etrier Droit *rh.stirup

28

Etrier Ga *lh.stirup

Etrier Ga *lh.stirup

29

Винт

Винт

2a

Longeron Dr *rh Member

Longeron Dr *rh Member

2b

Longeron Ga *lh Member

Longeron Ga *lh Member

30

Dard 5-6 *dart 5-6

Dard 5-6 *dart 5-6

31

Вставка

Вставка

32

Plaque Anti *plate

Plaque Anti *plate

33

Винт

Винт

34

Raidisseur Dr *rh Stiffener

Raidisseur Dr *rh Stiffener

35

Raidisseur Ga *lh Stiffener

Raidisseur Ga *lh Stiffener

36

Винт

Винт

37

Гайка

Гайка

38

Винт M6 X 16

Винт M6 X 16

4

Изолирующая втулка

Изолирующая втулка
