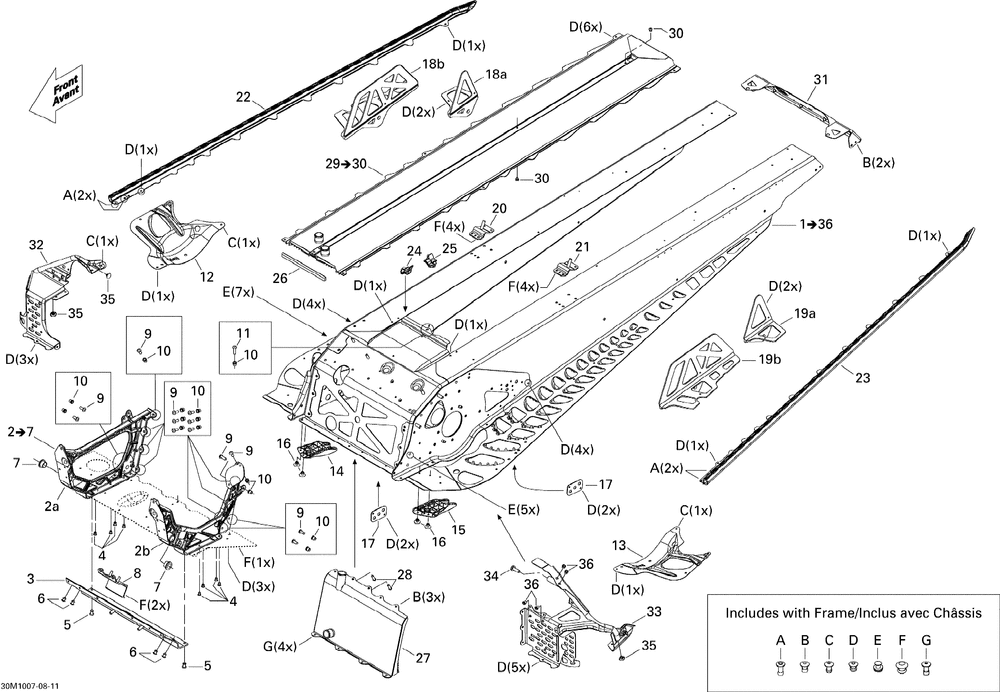

09- frame backcountry

Ski-Doo (Bombardier) Renegade BackCountry 800R PTEK
Ski-Doo (Bombardier)
#oem кодцена
1
415129462
Chassis *frame Service (includes 1 To 36 )
2
518326290
Module E *module E (includes 2 To 7 )
3
518326198
Traverse Avant *front Member
4
293150144
Rivet Stavex *stavex Rivet
5
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
6
293150119
Заклепка
7
505070954
Втулка уплотнительная
8
518325943
Support Mag *mag Support
9
207662044
Винт
A
390402300
Заклепка 3/16
B
390909200
Заклепка
C
390909100
Заклепка
E
293150146
Rivet Henrob *henrob Rivet
F
293150174
Rivet Hemlok *hemlok Rivet
G
293150179
Magna-lok 6 *magna-lok 6
10
233261414
Гайка
12
518324874
Renfort Dr *reinforcement
13
518324875
Renfort Ga *reinforcement
14
518325782
Deflecteur Dr. *rh Deflector
15
518325783
Deflecteur Ga. *lh Deflector
16
293150104
Заклепка 3/16
17
518201321
Plaque Renfort *plate-reinf.
20
518325973
Embase Arrire *rear Base
21
518325974
Embase Arrire *rear Base
22
518325377
Rouleau Droit *roller-rh
23
518325378
Rouleau *roller-lh
24
518325653
Joint Droit *seal Rh
25
518325654
Joint Gauche *seal Lh
26
293200105
Joint Etanche *neoprene Seal
27
518326486
Radiateur Avant*front Radiator
28
250300027
Goujon Sertir*clinch Stud
29
518325667
Radiateur Arr.s*rear Rad. Weld (includes 29 To 30 )
2a
518325922
Longeron Dr *rh Member
2b
518325923
Longeron Ga *lh Member
31
518325421
Capuchon *rear Cap
32
518326216
Etrier Droit *rh.stirup
33
518326239
Etrier Ga *lh.stirup
34
250000248
Винт
35
293730042
Dard 5-6 *dart 5-6
36
293450268
Вставка
18a
518326050
Attache Droite *rh.bracket
19a
518326051
Кронштейн левый
7
505072690
Изолирующая втулка
D
293150144
Rivet Stavex *stavex Rivet
11
207662044
Винт
30
293150144
Rivet Stavex *stavex Rivet
