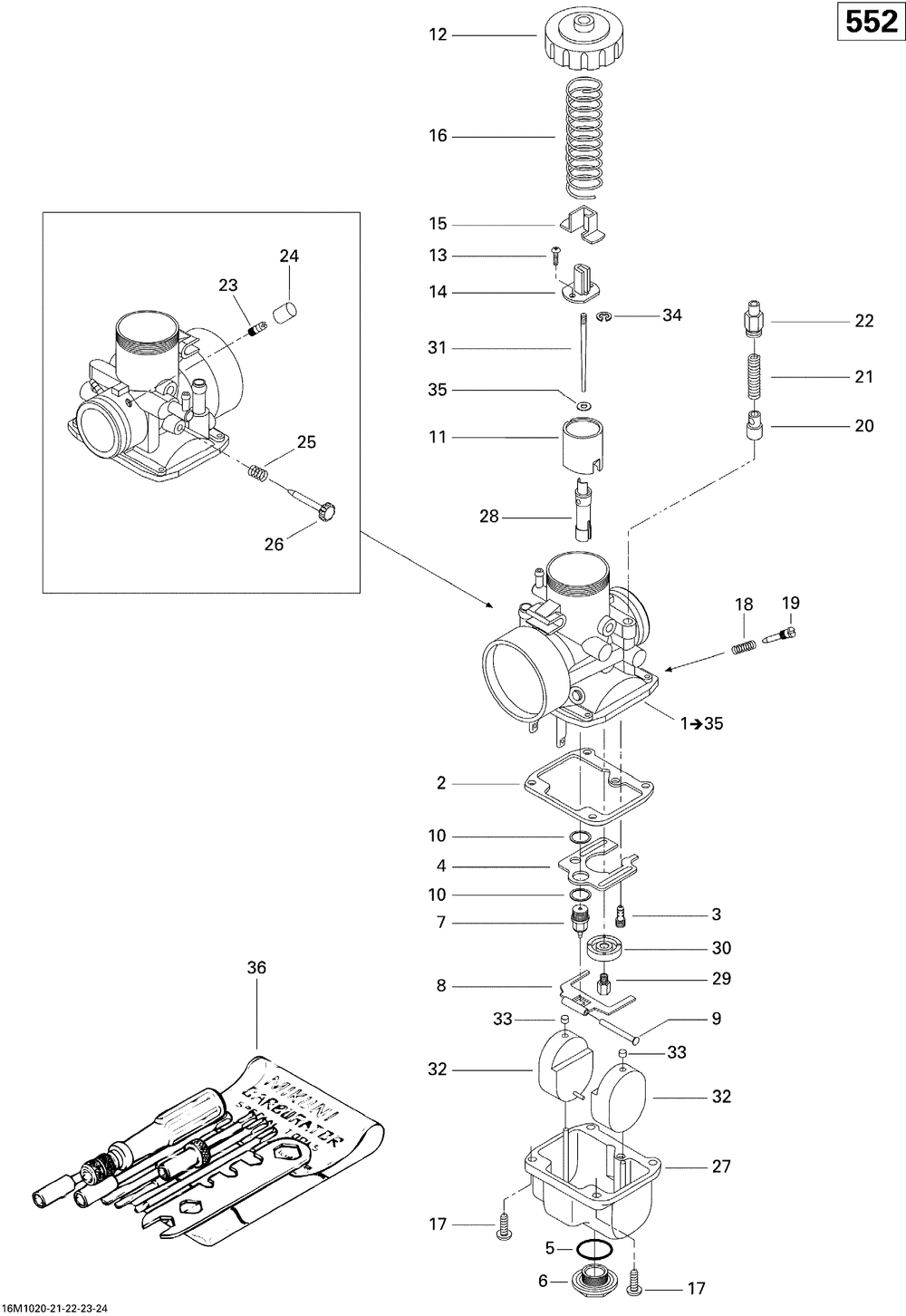

Карбюратор

Ski-Doo (Bombardier) Renegade Sport 550F
Ski-Doo (Bombardier)
#oem кодцена
1
403138810
Carb.vm-30 *carb-vm-30 (pto Side, Includes 1 To 35 )
1
403138801
Carb.vm-30 *carb-vm-30 (mag Side, Includes 1 To 35 )
2
404104200
Прокладка
3
404102700
Gicleur Ralenti*jet-pilot 35 (pto Side )
5
404107300
Кольцо
6
404107400
Vis Bouchon *screw-drain Plug
7
404147500
Pointeau Vs 1.2*valve Needle
8
404107600
Levier Flotteur*lever-float
9
404103300
Палец крепления рычага
10
404101600
Rondelle Siege *washer-seat
11
404128400
Tiroir Acc.2.5 *piston-val.2.5
12
404103700
Крышка
13
404121300
Vis W.rondelle*screw-with Washer
14
404161987
Joint *packing
15
404122100
Крышка
16
404154800
Пружина
17
404102000
Screw-w/lock *screw-w/lockwasher
18
404101800
Пружина
19
404102300
Screw-air
20
404162130
Plongeur Ass. *plunger-assy (pto Side )
21
404162131
Ressort *spring (pto Side )
22
404162132
Guide *guide Holder (pto Side )
23
404153400
Raccord *nipple
24
404156600
Крышка
25
404101700
Пружина
26
404109700
Vis *screw-idle Speed
28
404162124
Aiguille *needle
29
404118900
Gicleur Mj 230 *jet-main 230 (pto Side )
29
404119000
Gicleur Mj 190 *jet-main 190 (mag Side )
31
404162113
Aiguille *needle 6bfy46
33
404105800
Крышка
34
404152400
Rondelle E *ring-e
35
404117000
Joint Tampon *packing
36
404112000
Комплект инструментов
27
404162133
Corps Flotte *body-float (pto Side )
