Электрика (494)

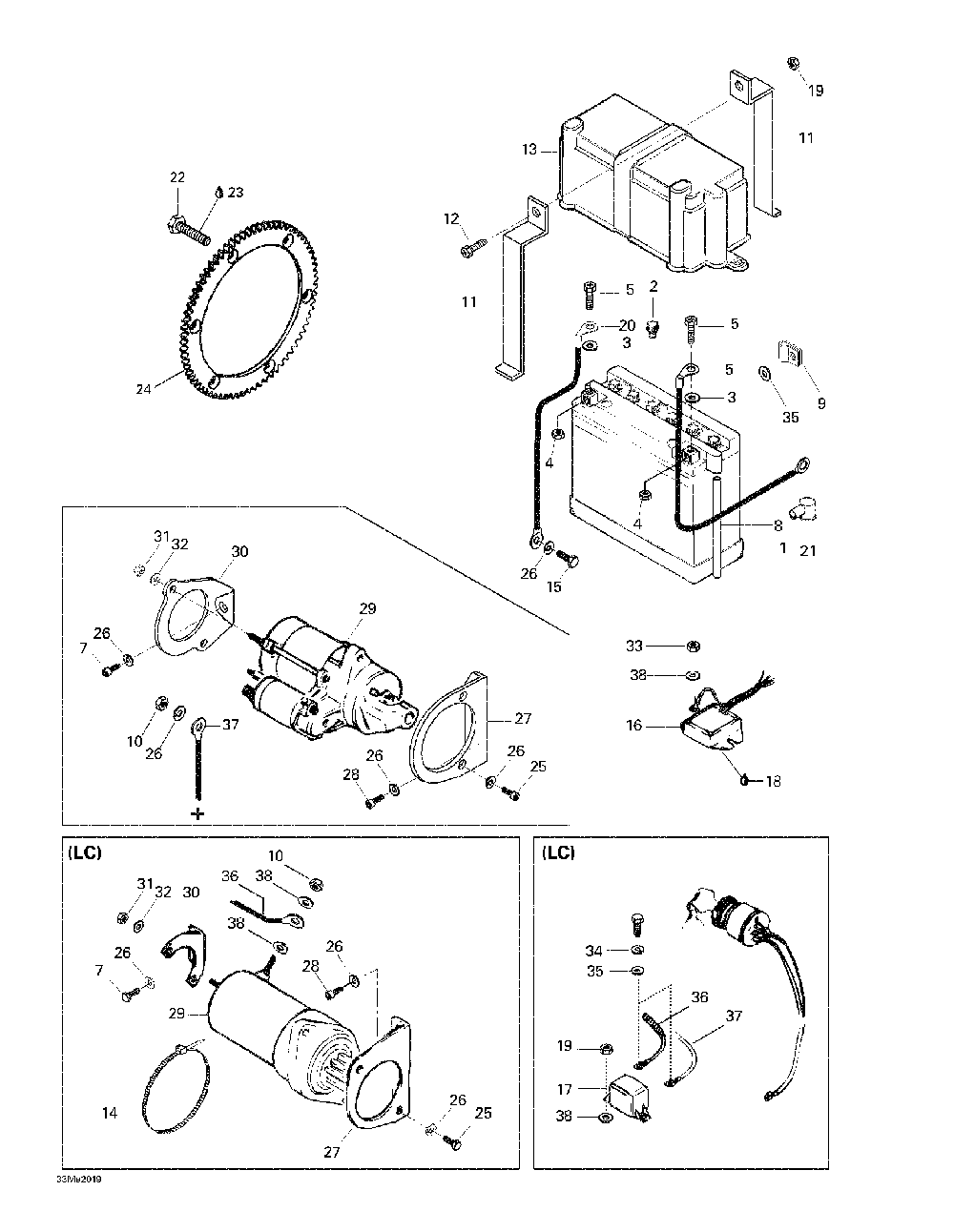

Ski-Doo (Bombardier) Skandic Wide Track
Ski-Doo (Bombardier)
#oem кодцена
M40066
Screw Skandic Wt. Skandic Swt.
M33003
Nut Skandic Wt. Skandic Swt.
M40327
Vis M6z12 *screw-m6x12 Skandic Wt. Skandic Swt.
605349434
Cable Batterie *battery Wire Skandic Wt. Skandic Swt.
420951415
Attache Demar. *bracket-start. Skandic Wt. Skandic Swt.
410212400
Demarreur *starter Skandic Wt. Skandic Swt.
420951426
Supp.demar.mag.*supp.-star.mag Skandic Wt. Skandic Swt.
M20008
Rondelle *washer Skandic Wt. Skandic Swt.
1
410301201
Batterie M2218y*battery (dry) Includes 1 - 5.
2
410300800
Bouchon Batt. *cap-battery
3
391302100
Шайба
4
232061414
Гайка
5
207161644
Винт
6
570022000
Couvercle Batt.*cover-battery
7
207181644
Screw-hex.cap Din.933 Skandic Wt Lc.
9
M27025
Porte Fil *wire-holder
10
232561414
Nut-stop Elastic Din.985 Skandic Wt Lc.
11
M5442811
Laniere *strip-steel
12
207162544
Винт
13
414227300
Clip - Spring Skandic Wt.
14
414115200
Tie-rap 180 Mm Skandic Wt Lc.
16
515175546
Regu.tension As*regulator-volt
17
420992817
Relais Demar. *relay-starter Skandic Wt Lc.
18
413707500
Graisse Tube *grease-tube
19
M33200
Гайка M6
20
M5443514
Fil De Masse *wire-ground Skandic Wt Lc.
21
570151000
Защитный колпачек
22
236281684
Винт torx
23
293800005
Смазка Loctite 271
24
417222858
Зубчатое колесо
25
207182044
Винт
26
234181401
Шайба
27
M539431
Attache Demar. *bracket-start. Skandic Wt Lc.
28
205082044
Винт
29
410207500
Demarreur *starter Skandic Wt Lc.
30
M539432
Supp.demar.mag.*supp.-star.mag Skandic Wt Lc.
31
232551414
Гайка с тефлоном
32
234051410
Washer-flat Din.125a Skandic Wt Lc.
34
M20013
Washer-lock Skandic Wt Lc.
36
M5440815
Fil De Masse *wire-ground Skandic Wt Lc.
37
M5443515
Fil *wire Skandic Wt Lc.
38
M20009
Шайба
15
M40066
Screw Skandic Wt Lc.
19
233261414
Гайка
24
415043100
Cour.lancement *gear-ring 86th
33
232561414
Гайка с тефлоном
35
M20008
Rondelle *washer Skandic Wt Lc.
