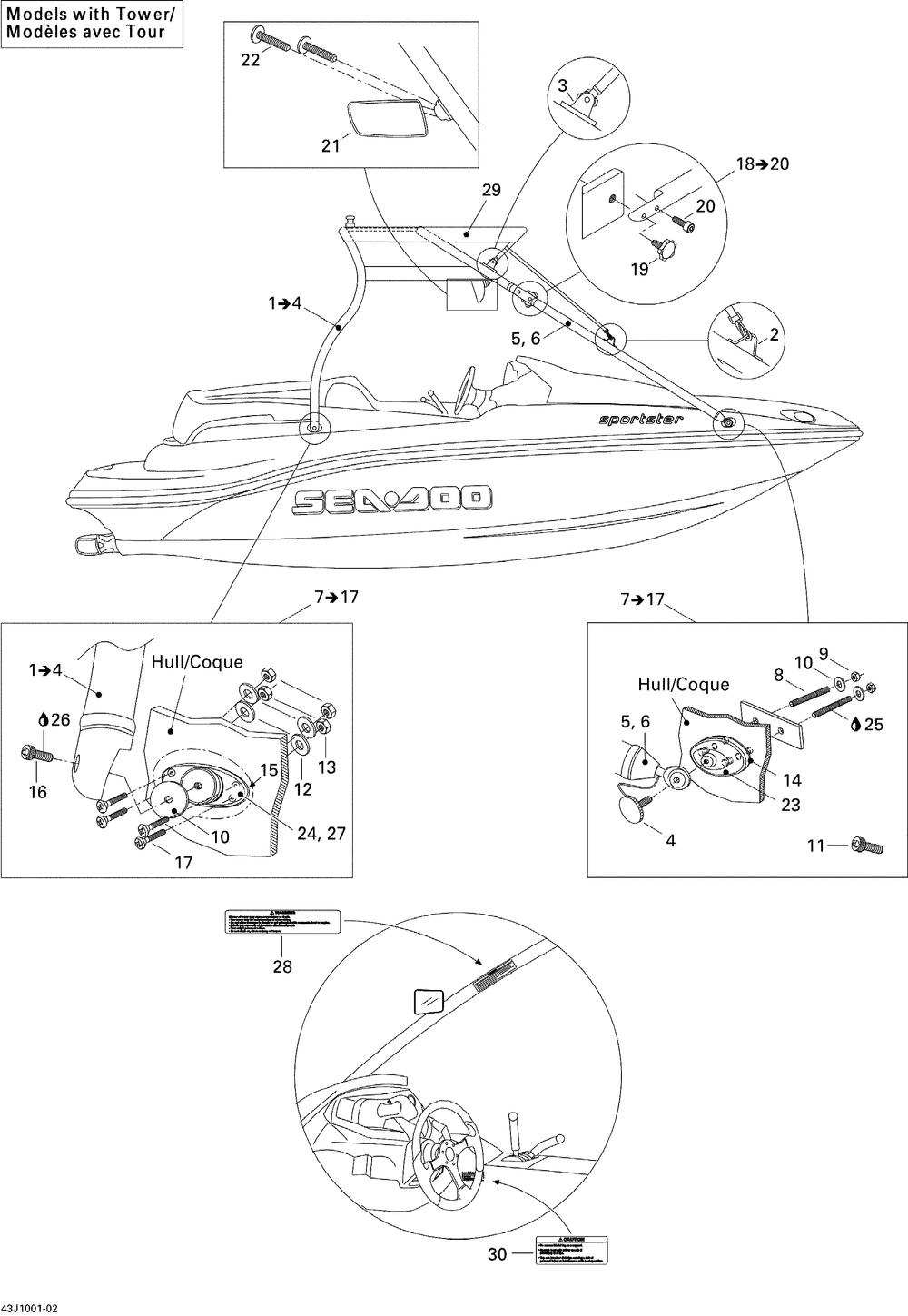

09- tower and bimini top

Sea-Doo (Bombardier) 150 Speedster 155 (1503NA)
Sea-Doo (Bombardier)
#oem кодцена
2
204071845
Oeil Courroie*eye-strap
3
204071846
Support-bimini *bracket-bimini
4
204071847
Bouton Noir *knob-black
8
204100152
"stud-threaded 1/2""-13"
9
204100131
"ecrou Frein *nut-lock-1/2"""
10
204100132
Washer-fender/ss-304
11
204100014
"screw-hex 1/4""-20 X 2 1/2"" Ss-304"
12
204100139
Washer-fender/s.s.
13
212000005
Nut-stop Elastic Ms-17830
14
204130272
Joint Etanche*gasket-front/vinyl
15
204130273
Joint Etanche*gasket-rear/vinyl
16
204100190
"screw-socket Hd.1/2-13 X 1-1/2"""
17
204100240
"screw-drilling Ov.hd.ph. 8-18 X 1"""
19
204071433
Bouton Cannel.*knob-fluted
20
204100135
"screw-hex 3/8""-16 X 1-1/2"" Ss-304"
21
204071420
Miroir A Ski *mirror-ski
22
204100129
"screw-ctsk.ov.hd.ph.10-32 X 1"""
23
204950143
Supp.tour*support-tower/front
25
293800005
Смазка Loctite 271
26
293800060
Фиксатор резьбы loctite-243
28
204902068
Etiquet.avert*label-warning/tower
29
204950213
Toit Bimini Ass.*top-bimini Assy.
30
204901331
Etiquet.avert*label-warning/bimini
