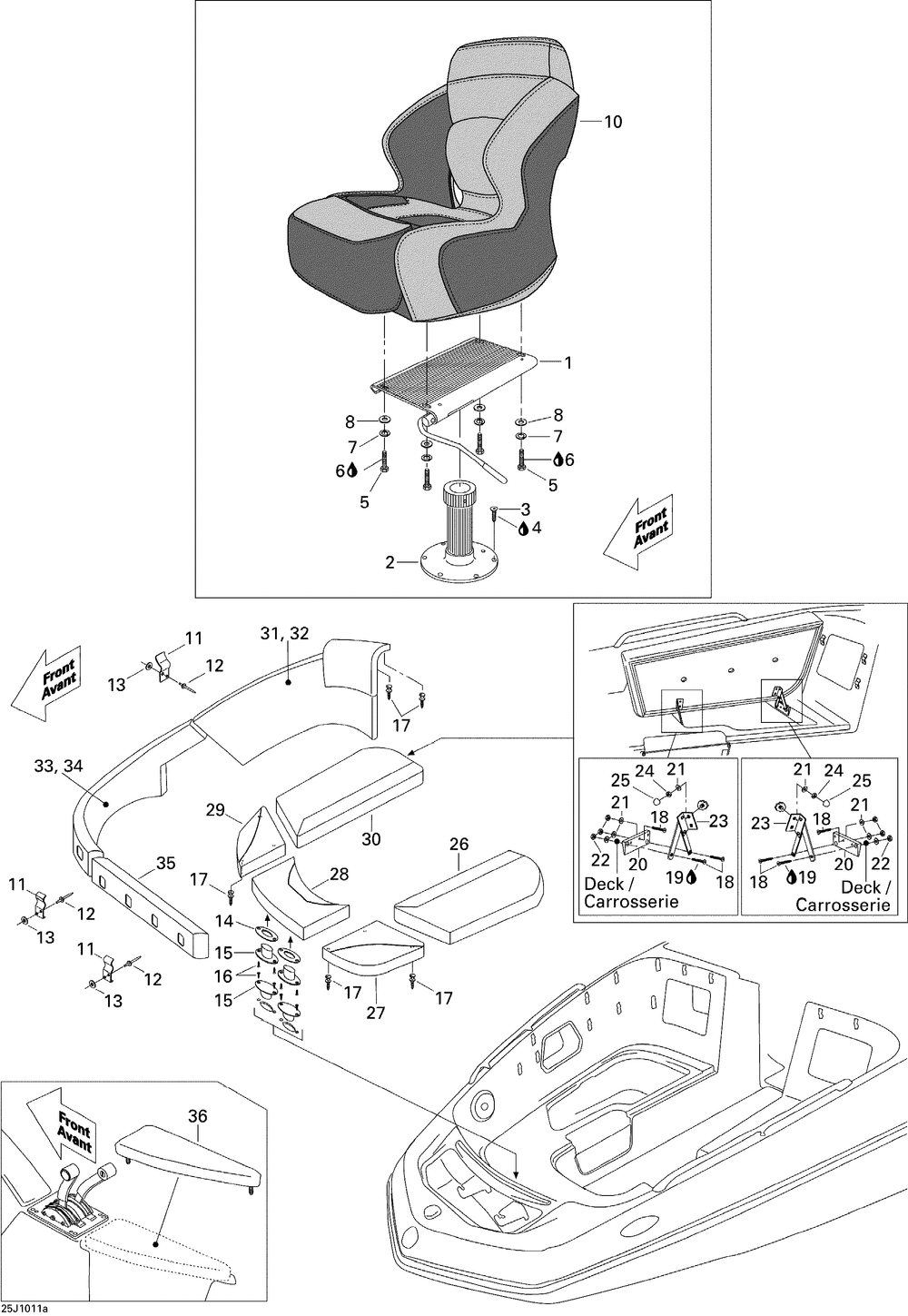

09- seat, front view

Sea-Doo (Bombardier) 230 Challenger 310, 2x155 1503NA
Sea-Doo (Bombardier)
#oem кодцена
1
204613742
Base Pivotant.*base-swivel/slide
2
269001903
Pedestal-seat/fixed-welded
3
204100201
"screw-ctsk.ov.hd.ph. 1/4-20 X 1-1/4"""
4
293800060
Фиксатор резьбы loctite-243
5
204100134
"screw-hex 1/4""-20 X 3/4"""
7
211200025
"rondelle Frein *washer-lock 1/4"""
8
234082600
Шайба
10
204614447
Sige-baquet *seat-bucket Assy.
11
204613998
Support-siege *support-seat
12
293150043
Заклепка 3/16
13
234061600
Шайба
14
204130219
Втулка
15
204614513
Fermer Magnt.*catch-magnetic/door
16
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
17
204130264
"dard -1"" *dart 1""/ Double Head"
18
205364060
Screw-socket Hd.ctsk.din.7991-a2
20
204614766
Cale Charn.*shim-hinge/bow Cushion
21
234062600
Шайба
22
232561600
Гайка стопорная эластичная 985-A2
23
204614745
Charn/support*hinge/bracket Set
24
211100026
Nut-hexagonal 1/4-20
25
204130008
Bouchon-plast.*cap-plastic/white
