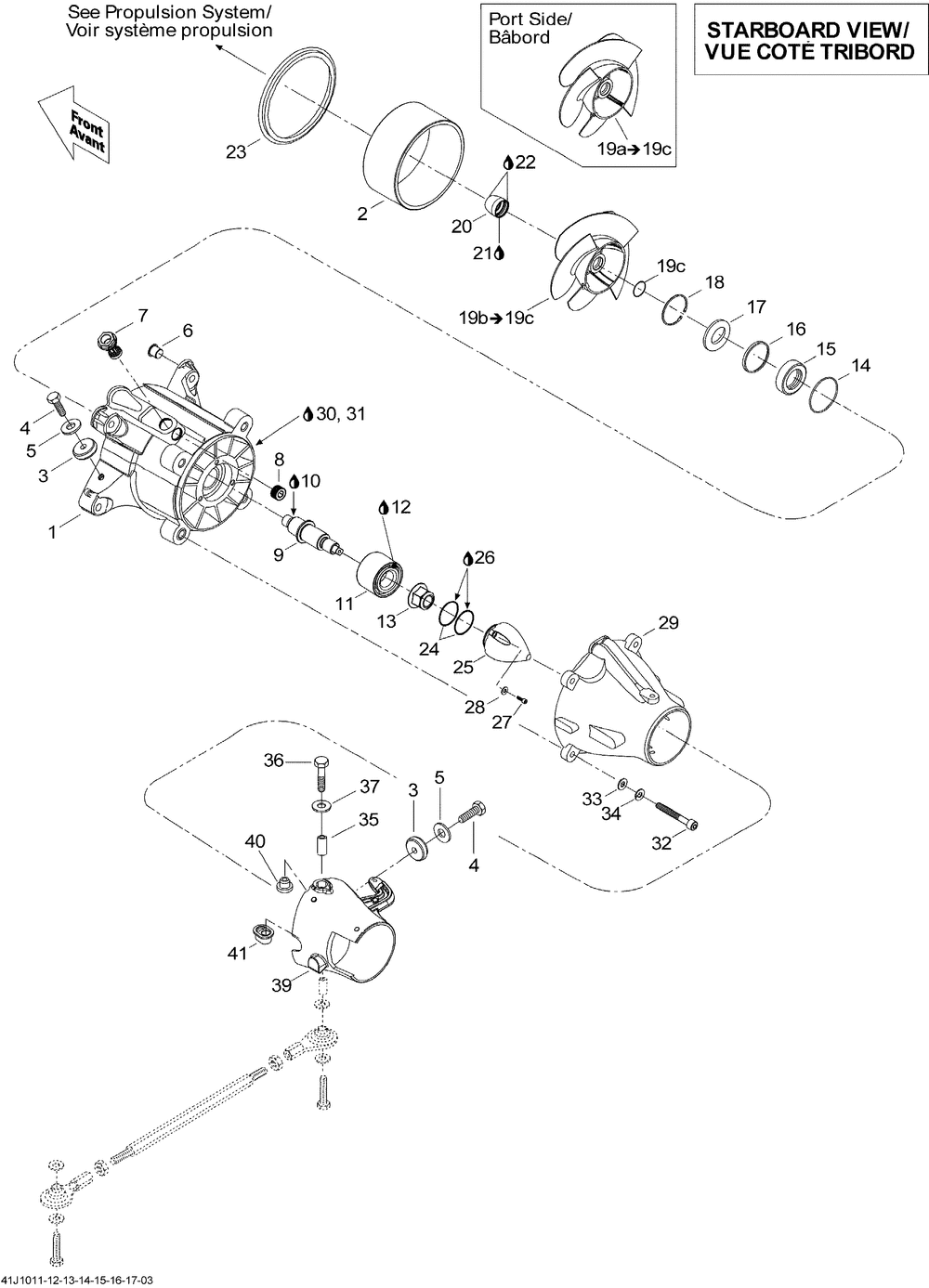

Водомет

Sea-Doo (Bombardier) 230 Challenger 310, 2x155 1503NA
Sea-Doo (Bombardier)
#oem кодцена
1
267000417
Carter Helice *housing-impel.
2
267000419
Компенсационное кольцо
3
271001487
Anode Zinc *anode Zinc
4
207362060
Винт
5
234061600
Шайба
6
267000093
Втулка
7
267000282
Шайба
8
267000469
Bouchon Plast. *plastic Plug
9
267000388
Arbre Helice *shaft-impeller
10
293800070
Смазка
11
267000030
Roulement Ang. *angle Bearing
12
293550032
Graisse Asalco *ball Bearing Grease
13
250100104
Гайка
14
293300090
Кольцо
15
293200086
Сальник
16
271001393
Втулка
17
293200089
Сальник
18
293370038
Стопорное кольцо
20
267000206
Prot.helice *boot-impeller
21
293800050
Локтайт-577
22
293550010
Graisse Synth. *grease-synth.
23
293200087
Неопреновый сальник
24
293300086
Кольцо
25
267000428
Couvercle Turb.*cover-impeller
27
205562060
Винт
29
204160302
Venturi Noir*venturi-black
30
293800041
Appret Loctite *primer-loctite
31
293800038
Локтайт-518
32
250000464
Винт
33
293050001
Шайба
34
234181601
Шайба Din.127b-a2
35
271000122
Manchon *sleeve
36
211000047
Screw-special M8
39
204160293
Buse Direct.*nozzle-steering/blk-port
39
204160296
Buse Direct.*nozzle-steering/blk-stbd.
40
293900001
Douille Venturi*bushing-ventur
41
293900010
Douille Plast. *bushing-plast.
19a
267000434
Helice Stlss As*impeller Assy (includes 19a To 19c, Port Side )
19a
267000449
Helice Stlss As*impeller Assy (includes 19a To 19c, Port Side )
19b
267000431
Helice Stlss As*impeller Assy (includes 19b To 19c, Starboard )
19b
267000447
Helice Stlss As*impeller Assy (includes 19b To 19c, Starboard )
19c
293300114
Кольцо
