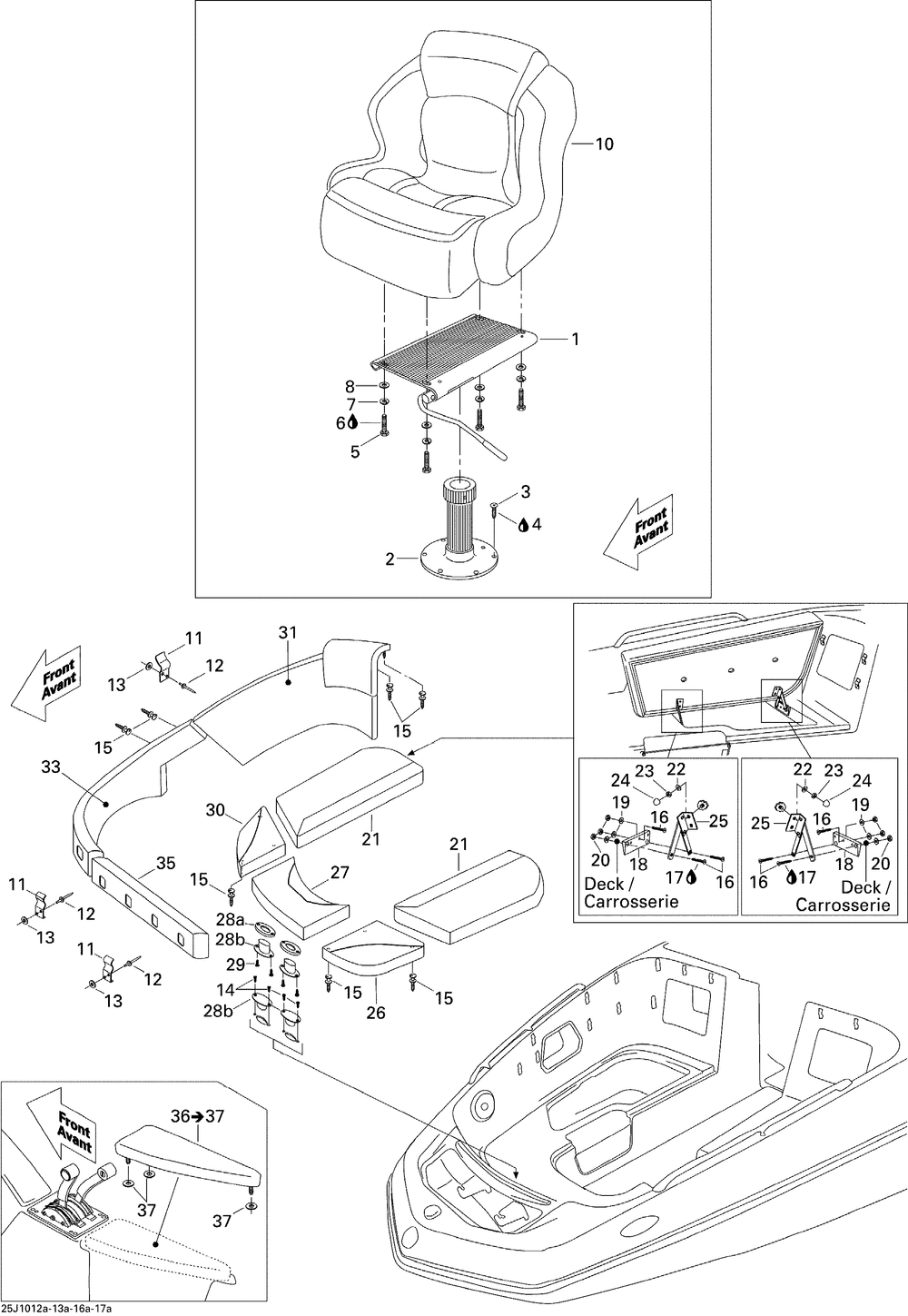

09- seat, front view

Sea-Doo (Bombardier) 230 Wake SE 510, 2x255 1503HO
Sea-Doo (Bombardier)
#oem кодцена
1
204613742
Base Pivotant.*base-swivel/slide
2
269001903
Pedestal-seat/fixed-welded
3
204100201
"screw-ctsk.ov.hd.ph. 1/4-20 X 1-1/4"""
4
293800060
Фиксатор резьбы loctite-243
5
204100134
"screw-hex 1/4""-20 X 3/4"""
7
211200025
"rondelle Frein *washer-lock 1/4"""
8
234082600
Шайба
10
204614548
Sige-baquet *seat-bucket Assy.
11
204613998
Support-siege *support-seat
12
293150043
Заклепка 3/16
13
234061600
Шайба
14
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
15
204130264
"dard -1"" *dart 1""/ Double Head"
16
205364060
Screw-socket Hd.ctsk.din.7991-a2
18
204614766
Cale Charn.*shim-hinge/bow Cushion
19
234062600
Шайба
20
232561600
Гайка стопорная эластичная 985-A2
23
211100026
Nut-hexagonal 1/4-20
24
204130008
Bouchon-plast.*cap-plastic/white
25
204614745
Charn/support*hinge/bracket Set
31
204614988
Doss.proue*backrest-bow/port
28a
204130219
Втулка
28b
204614513
Fermer Magnt.*catch-magnetic/door
