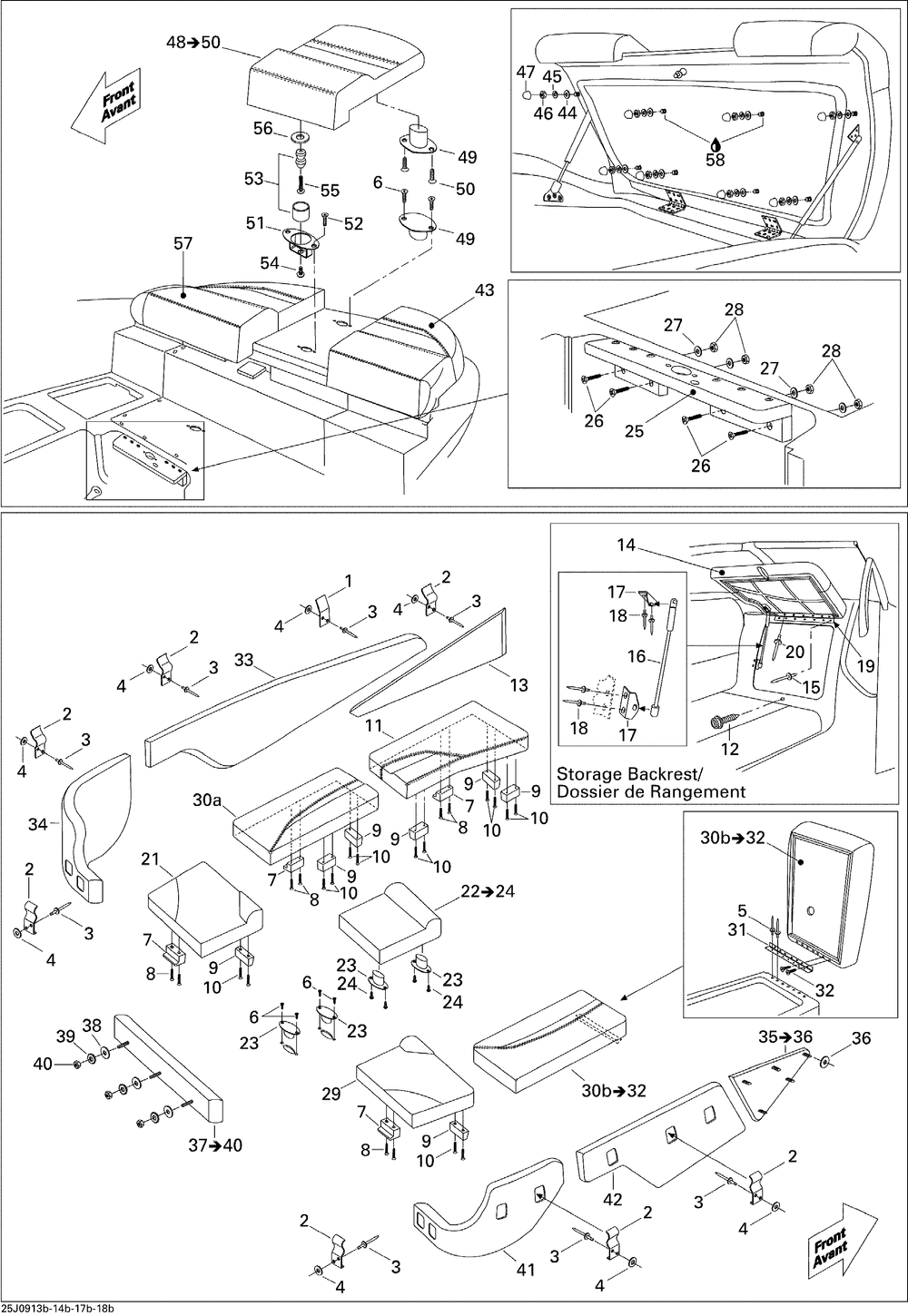

09- seat, rear view

Sea-Doo (Bombardier) 230 Challenger SP, 2 x 155 NA
Sea-Doo (Bombardier)
#oem кодцена
204614552
Couss.ass.*cushion Assy/port
204614553
Couss.ass.*cushion Assy/stbd (includes 30b To 32 )
1
204611531
Pince-retenue *clip-retaining
2
204613998
Support-siege *support-seat
3
293150043
Заклепка 3/16
4
234061600
Шайба
5
293150011
Заклепка 3/16
6
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""
7
204611940
Loq.base Siege*catch-seat Base
8
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2"""
9
204611805
Loquet Base*catch-seat Base
10
204100219
"screw-pan Hd.#10-32 X 1-1/4"" Ss"
11
204614576
Couss.ass.*cushion Assy/spotter
12
202000159
"screw-stud Tapp. 3/8"" Ss"
13
204614578
Dossier-plat.*backrest-gunnel/spotter
14
204614580
Doss.rangem.*backrest-storage/spotter
16
204072218
Amortisseur*shock-gas
17
204073074
Supp.amort.*bracket-shock/rework
19
204613980
Charnire Doss.*hinge-backrest
21
204614547
Couss.ass.*cushion Assy/rear-port
22
204614550
Couss.ass.*cushion Assy/rear-center (includes 22 To 24 )
23
204614513
Fermer Magnt.*catch-magnetic/door
25
204614709
Support-siege*support-seat Assy
26
208564060
Винт
27
234062600
Шайба
28
232561600
Гайка стопорная эластичная 985-A2
29
204614960
Couss.ass.*cushion Assy/rear-stbd
33
204614554
Dossier-plat.*backrest-gunnel/port
34
204614555
Dossier-arr.*backrest-rear Corner
35
204614557
Dossier-plat.*backrest-gunnel/front (includes 35 To 36 )
37
204614558
Dossier-arr.*backrest-rear/center (includes 37 To 40 )
38
234461608
Washer-lock Serrated Din.6798a-a2
39
204100060
Nut-jam Hexagonal 1/4-20 Ss
41
204614559
Dossier-arr.*backrest-rear Corner
42
204614560
Dossier-plat.*backrest-gunnel/stbd
43
204614574
Coussin Pont*cushion-sundeck/port
44
234082600
Шайба
45
211200025
"rondelle Frein *washer-lock 1/4"""
46
211100026
Nut-hexagonal 1/4-20
47
204130008
Bouchon-plast.*cap-plastic/white
48
204614575
Coussin Pont*cushion-sundeck/center (includes 48 To 50 )
51
204614762
Support *bracket-door Holder
53
204614760
Reten.porte*holder-door Assy/rubber
54
204100122
Screw-pan Hd. 10-24 Unc X .50 Ss
55
204100236
"screw-hex.hd.machine #10 X 1"""
56
211200033
Шайба
57
204614573
Coussin Pont*cushion-sundeck/stbd.
58
293800060
Фиксатор резьбы loctite-243
