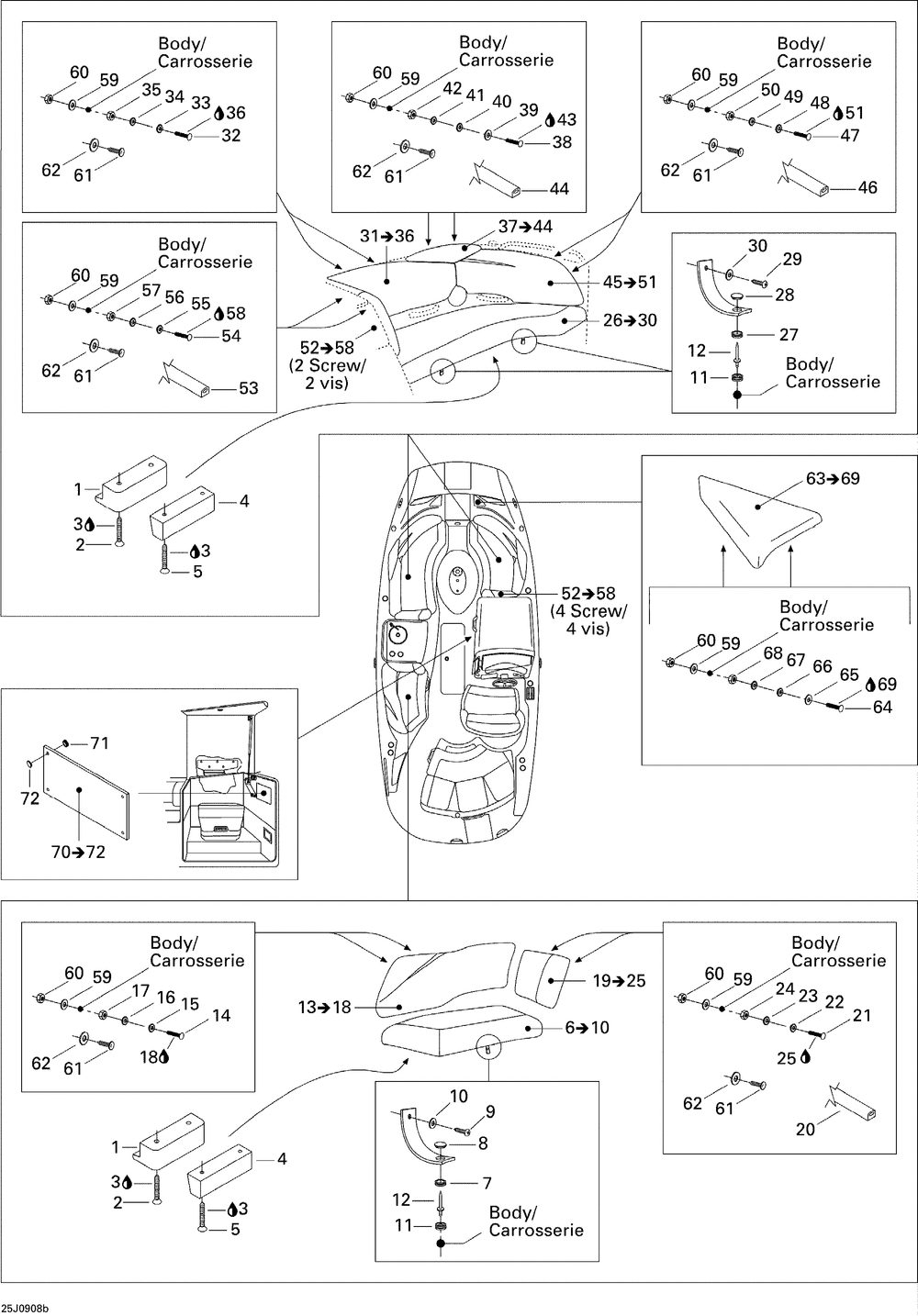

Сидение 2 Оригинальные запчасти для катеров Sea-Doo (Bombardier) Islandia SE 2 x 215 SCIC (2009)

Сидение 2

Sea-Doo (Bombardier) Islandia SE 2 x 215 SCIC

oem код

название

цена

204611940

Loq.base Siege*catch-seat Base

204100039

"screw-ctsk.fl.hd.ph. 1/4x20x2"""

293800060

Фиксатор резьбы loctite-243

204611805

Loquet Base*catch-seat Base

204100081

"screw-pan Hd.#8 X 1 1/4"" Ss"

204613702

Coussin Ass.*cushion Assy/keeper (includes 14 To 23 )

204000083

Att.press.base *snap-base

204000085

Att.press.couv.*snap-cover

204100054

"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4"""

211200019

Washer-flat 1/4 Ss-316

204000084

Att.press.inf. *snap-bottom

293150026

Заклепка

204613704

Couss.doss.*cushion-backrest Assy. (includes 13 To 18 )

204000130

Bolt-elevator

211200054

Шайба стопорная Din.6797a-a2

234461608

Washer-lock Serrated Din.6798a-a2

204100060

Nut-jam Hexagonal 1/4-20 Ss

204613711

Couss.doss.*pad-backrest Assy. (includes 19 To 25 )

293200032

Anneau Etanche *seal-tray

204614545

Coussin Assem.*cushion Assy/port (includes 26 To 30 )

204613713

Coussin Assem.*cushion Assy/stbd. (includes 26 To 30 )

204613729

Dossier Assem.*backrest Assy/port (includes 31 To 36 )

204613717

Dossier Ass.*backrest Assy/stbd.

204613733

Appui-tete Assem.*headrest Assy. (includes 37 To 44 )

204613721

Appui-tete Assem.headrest Assy.

293050001

Шайба

204613731

Dossier Assem.*backrest Assy/port (includes 45 To 51 )

204613719

Dossier Assem.*backrest Assy/stbd. (includes 45 To 51 )

204613727

Coussin.doss.*pad-backrest Assy. (includes 52 To 58 )

204613715

Couss.doss.*pad Assy/backrest (includes 52 To 58 )

Washer-fender/s.s.

Nut-hexagonal 1/4-20

Dard *dart

"rondelle-nylon *washer-nylon 5/16"""

204613735

Couss.assem.*pad Assy/walk-thru (includes 63 To 69 )

204613723

Couss.assem.*pad Assy/bow-stbd (includes 63 To 69 )

204613737

Acces-barre*access-helm Assy. (includes 70 To 72 )
