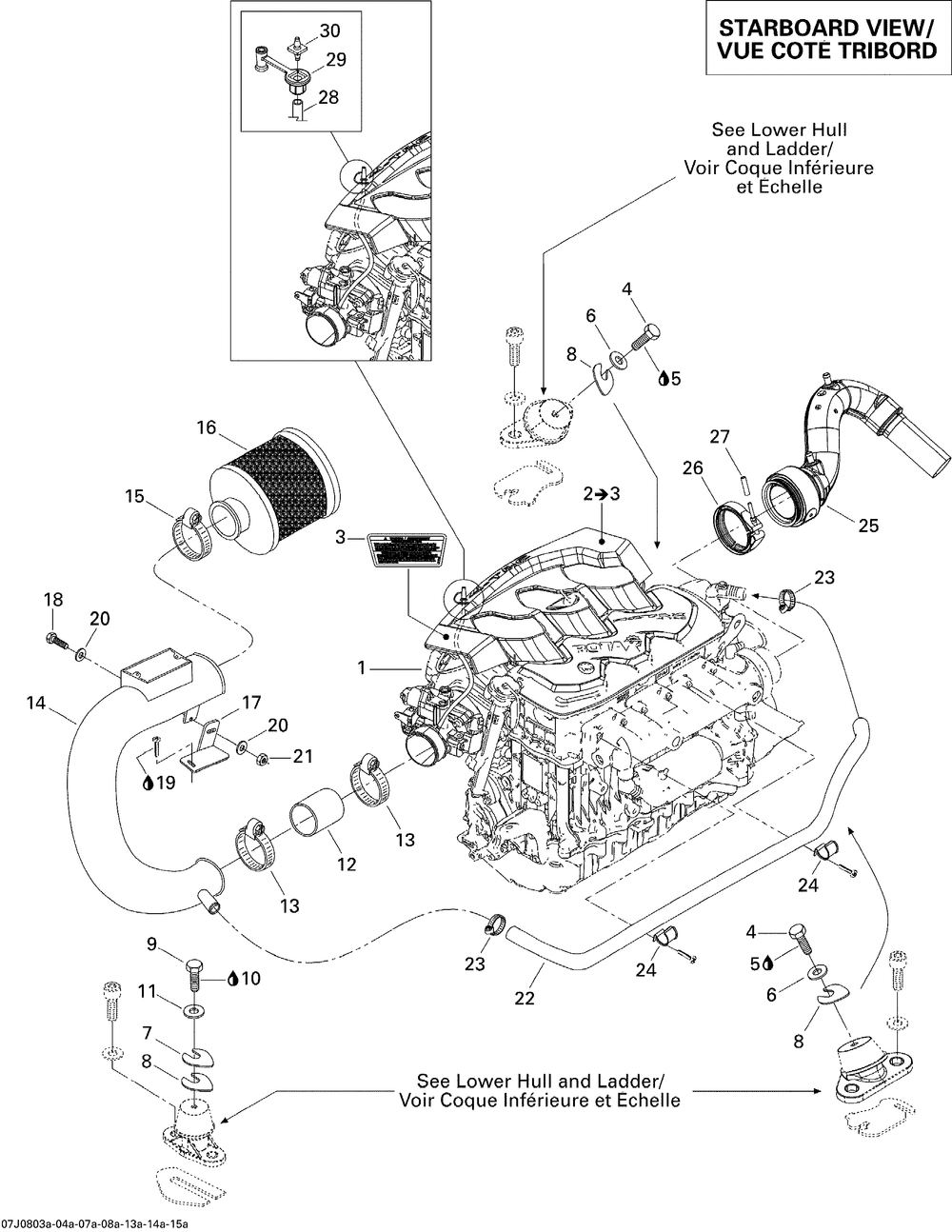

01- engine and air intake silencer edition 1

Sea-Doo (Bombardier) Speedster 200 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
420150315
Moteur 1503na Semi*block-long 1503 Na/dt
2
270000677
Couvercle Ass`e*cover Ass`y (includes 2 To 3 )
3
219902674
Avertissement *warning
4
207182560
Винт
5
293800060
Фиксатор резьбы loctite-243
6
234082600
Шайба
7
270000025
Cale Epaisseur *shim-1.3mm
8
270000024
Cale Epaisseur *shim-0.4mm
12
204250400
Шланг - впускной
13
293650061
Хомут
14
204250421
Chambre D Admis.*tube-intake
15
293650179
Хомут
16
204250401
Filtre Air *filter-air
17
204250407
Support D Admis.*bracket-intake
18
207162060
Винт
19
293800021
Loctite 495 *loctite-495
20
211200055
Washer-flat Ss/neoprene
21
232561600
Гайка стопорная эластичная 985-A2
22
270000681
Boyau Forme *hose-formed
23
293650051
Collet A Vis *gear Clamp
24
275500664
Проставка
25
274001030
Conduit Echap. *exhaust Pipe
26
274000959
Bride *exhaust Clamp
27
415080200
Шланг
28
270000469
Boyau 3mm *hose-3mm
29
293830115
Oeillet Cap. *grommet Cap
30
293710107
Raccord *connector
