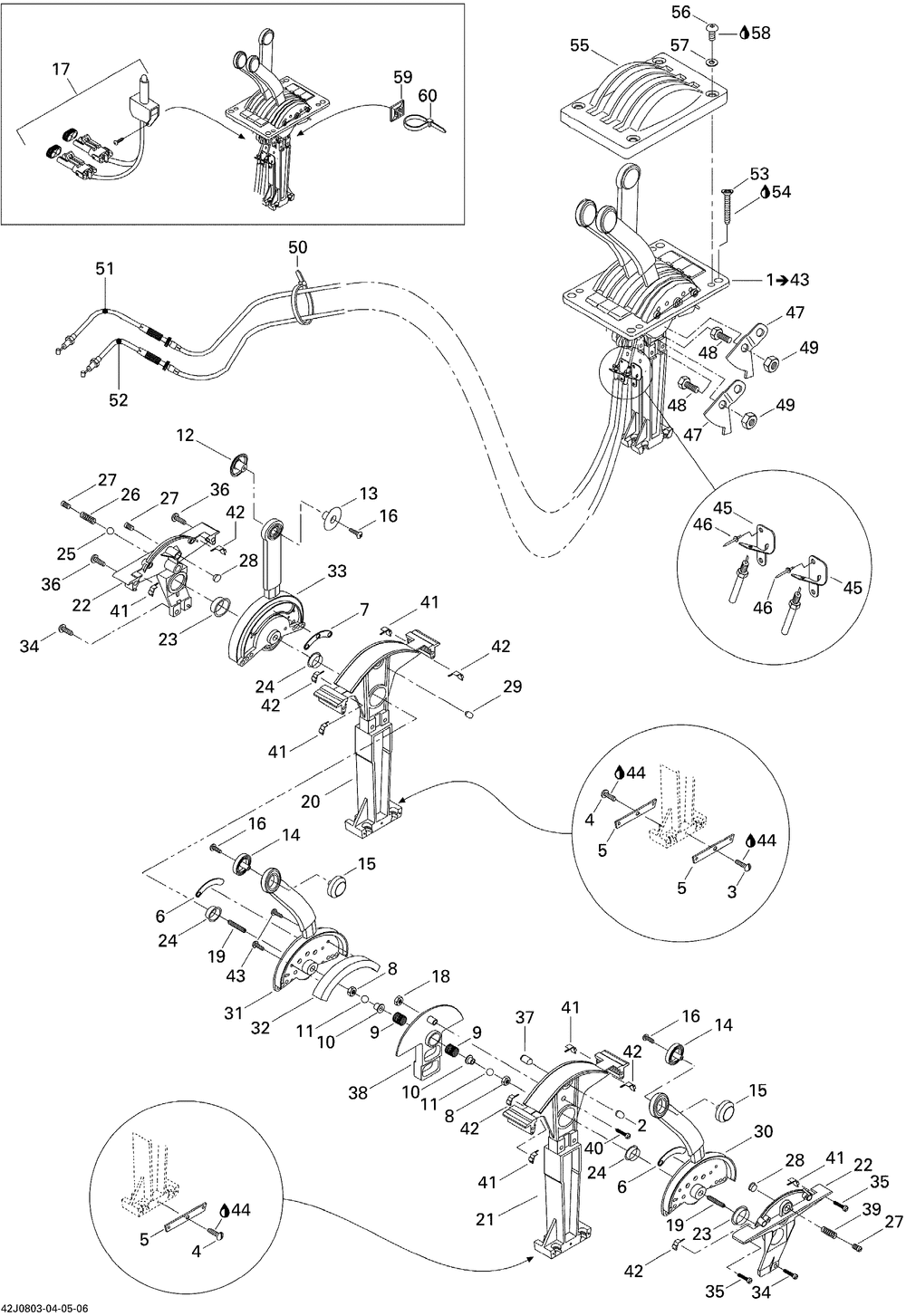

Ручное управления

Sea-Doo (Bombardier) Speedster 200 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
204390383
Controle Ultra.*control-ultraflex (includes 1 To 43 )
2
277000708
Goupille Accel.*pin-lev.thrott
3
204130093
Vis M5 X 14 *screw M5 X 14 / Uni.5725
4
204130092
Vis M5 X 16 *screw M5 X 16 / Din.7985
5
204130091
Пластина
6
277000707
Entretoise Lev.*spacer-lev.thr
7
277000408
Entretoise Lev.*spacer-lev.shi
8
277000425
Ecrou M6 *nut-uni 7473
9
204130089
Пружина
10
204130088
Coussinet *bushing
13
277000418
Demi-cap.ouvert*half-cap Shift
14
277000416
Demi-cap.ouvert*half-cap Throt
15
277000415
Demi-cap.filete*half-cap Throt
16
277000419
Vis M3.5 X 25 *screw-uni 6954
17
204130094
Inter.neutre*switch-neutral
18
232551600
Гайка
19
204130090
Vis M6 X 20 *screw M6 X 20 / Uni 5929
20
204130086
Cadre Gauche *frame-left
21
204130087
Cadre Droit *frame-right
23
277000397
Coussinet *bush
24
277000398
Coussinet *bush
25
277000399
Шарик
26
277000400
Пружина
27
277000402
Vis Capuchon *screw-cap
28
277000403
Ajout Friction *insert-frict.
29
277000704
Pivot Blocage *pivot-blocking
30
277000655
Levier Accel. *lever-throttle
31
277000409
Levier Accel.ga*lever-throt.lh
33
277000414
Levier Transm. *lever-shift
34
277000420
Vis M5 X 60 *screw-uni 7687
35
204100016
Vis M5 X 20 *screw-uni 7687
36
277000422
Vis M5 X 70 *screw-uni 7687
37
277000705
Goupille Accel.*pin-lev.thrott
38
277000706
Entretoise Cadr*spacer-frame
39
277000401
Пружина
40
277000412
Vis M5 X 25 *screw-uni 6107
42
277000424
Obturateur Ga. *seal-water Lh.
44
293800060
Фиксатор резьбы loctite-243
45
277000504
Support Cable *support-cable
46
293150026
Заклепка
47
204390045
Maille Cable *link-throttle
48
207151660
Винт
50
414115200
Стяжка 180мм
51
204390385
Cable Acceler.*cable-throttle/lh (port Side )
52
204390386
Cable Acceler.*cable-throttle/rh (starboard )
53
205353060
Screw-socket Hd.ctsk.din.7991-a2
54
293800070
Смазка
55
204390124
Recouvrement *plate-control
56
208641060
Винт
57
234040600
Шайба DIN.433A2 (отпуск.по 10 шт)
58
293800040
Loctite 425 *loctite-425
59
293750015
Ancrage Tie Rap*mount-tie Rap
60
293750001
Стяжка 94 мм
