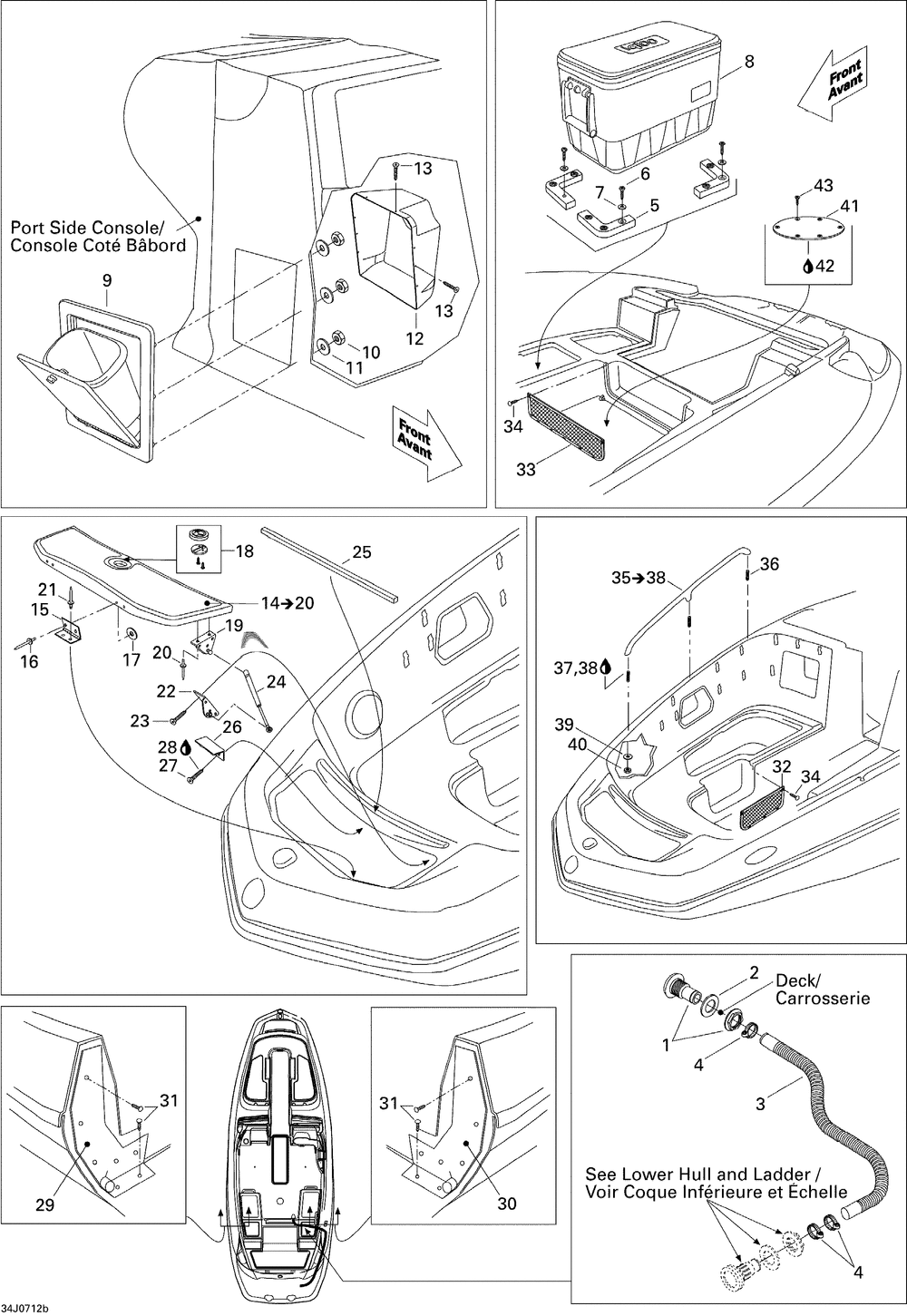

Кузов 2

Sea-Doo (Bombardier) Challenger 230 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
204130163
Raccord-drain*fitting-drain ( )
2
293250039
Joint Etanche *gasket ( )
3
204070560
Boyau Bilgeflex*hose-bilgeflex ( )
4
293650074
Bride Serrage *clamp-norma ( )
5
204072718
Kit-montage *kit-cooler Mount ( )
6
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
7
234041600
Washer-flat Din.125a-a2 ( )
8
204072662
Glacire-23l.*cooler-25 Quart ( )
9
204072969
Rangem.ordure*storage-trash ( )
10
204100034
Nut-stop Elastic 10-24 Ss ( )
11
234052600
Washer-flat Din.9021b-a2 ( )
12
204072973
Doublure Ordure*liner-trash ( )
13
250000092
Screw-tapp.ctsk.fl.hd.ph.7982c-a2 ( )
14
204072664
Couver.ancre*lid-anchor Assy. (includes 14 To 20 )
15
204072601
Charniere Porte*hinge-ski Door ( )
16
293150037
Rivet Avdel *rivet-avdel 3/16 ( )
17
234051600
Washer-flat Din.125a-a2 ( )
18
204072838
Loquet D Acier*latch-stainless ( )
19
204071700
Supp.amort.*bracket-shock/angled ( )
20
293150088
Rivet-pop 3/16 *rivet-pop 3/16 ( )
23
209641360
Screw-tapp.pan Hd.ph.din.7981b-a2 ( )
24
204073017
Amortisseur*shock-gas ( )
25
293200020
Anneau Etanche *seal-tray ( )
26
204070060
Gache *keeper ( )
27
208641260
Screw-pan Hd.ph.din.7985a-a2 ( )
28
293800060
Loctite 243
29
204072504
Joint Mur Bruit*seal-soundwall ( )
30
204072505
Joint Mur Bruit*seal-soundwall ( )
31
293730006
Dard Noir *dart-black ( )
35
204072537
Basting.proue*bow Rail Assy-stbd. (includes 35 To 38 )
35
204072535
Basting.proue*bow Rail Assy-port (includes 35 To 38 )
36
204100050
Goujon Filete *stud-threaded ( )
37
293800005
Loctite 271 *loctite-271 ( )
38
293800041
Appret Loctite *primer-loctite ( )
39
234002600
Washer-flat Din.9021b-a2 ( )
40
204100032
Nut-stop Elastic 3/8-16 ( )
41
204072909
Ajout Table *insert-table ( )
43
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
