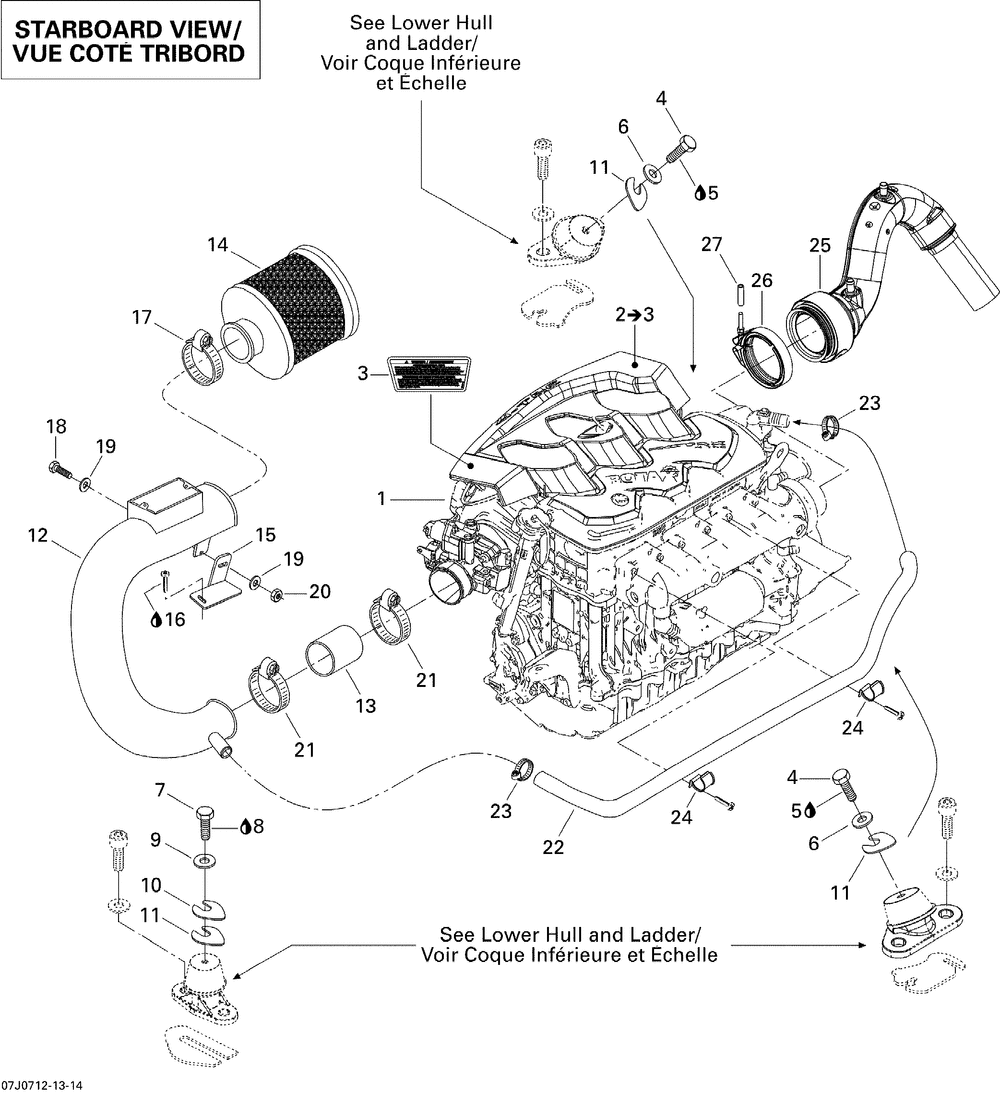

Двигатель

Sea-Doo (Bombardier) Challenger 230 155NA
Sea-Doo (Bombardier)
#oem кодцена
2
270000677
Couvercle Ass`e*cover Ass`y (includes 2 To 3 )
3
219902674
Avertissement *warning ( )
4
207182560
Screw-hex.cap Din.933a2 ( )
5
293800060
Loctite 243
6
234082600
Washer-flat Din.9021b-a2 ( )
10
270000025
Cale Epaisseur *shim-1.3mm ( )
11
270000024
Cale Epaisseur *shim-0.4mm ( )
12
204250399
Chambre D Admis.*tube-intake ( )
13
204250400
Boyau Admission*hose-intake ( )
14
204250401
Filtre Air *filter-air ( )
15
204250407
Support D Admis.*bracket-intake ( )
16
293800021
Loctite 495 *loctite-495 ( )
17
293650179
Bride Serrage *clamp-tridon ( )
18
207162060
Screw-hex.cap Din.933a2 ( )
19
211200055
Washer-flat Ss/neoprene ( )
20
232561600
Nut-stop Elastic Din.985-a2 ( )
21
293650061
Bride Serrage *clamp-tridon ( )
22
270000681
Boyau Forme *hose-formed ( )
23
293650051
Collet A Vis *gear Clamp ( )
24
275500664
Attache *retainer ( )
25
274001030
Conduit Echap. *exhaust Pipe ( )
26
274000959
Bride *exhaust Clamp ( )
27
415080200
Boyau Polyure *polyurethane Hose ( )
