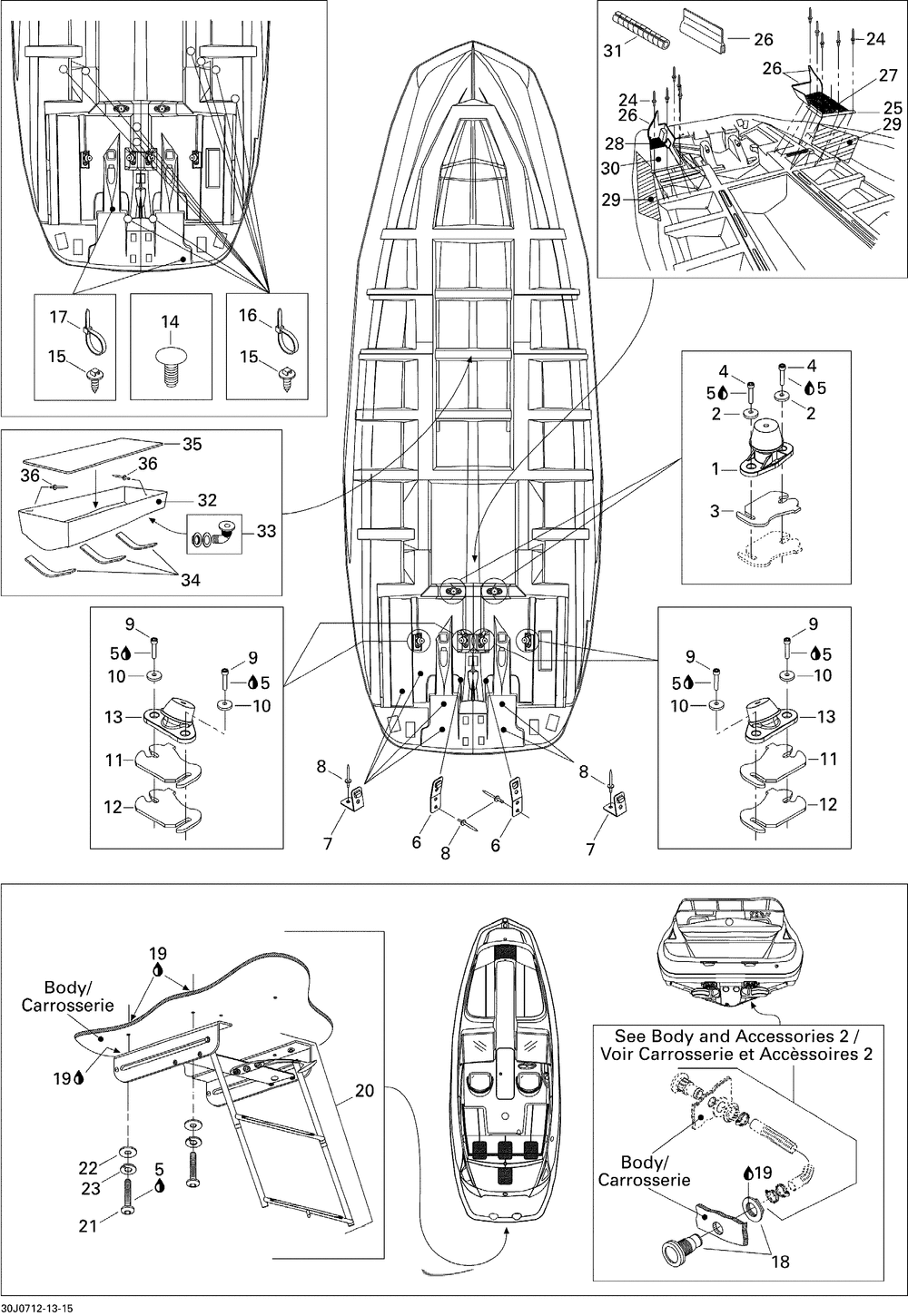

09- lower hull and ladder

Sea-Doo (Bombardier) Challenger 230 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
270000690
Tampon Ancrage *mount-rubber ( )
2
250200018
Rondelle Coniq.*washer-cone ( )
3
204250048
Cale Epaisseur *shim-0.3mm ( )
4
205084560
Screw-socket Hd.din.912a2 ( )
5
293800060
Loctite 243
6
293850030
Pince Courroie *clip-strap ( )
7
204060017
Pince Courroie *clip-strap ( )
8
293150037
Rivet Avdel *rivet-avdel 3/16 ( )
9
205084060
Screw-socket Hd.din.912a2 ( )
11
270000445
Cale Epaisseur *shim-0.3mm ( )
12
270000446
Cale Epaisseur *shim-1.3mm. ( )
13
270000669
Tampon Ancrage *mount-rubber ( )
14
293730006
Dard Noir *dart-black ( )
15
293730040
Dard D Ancrage *dart-mount ( )
16
414115200
Tie-rap 180 Mm ( )
17
293750008
Tie Rap 350mm *tie-rap 350mm ( )
18
204061102
Soupape Dalot *valve-scupper ( )
20
204061122
Echelle *ladder-two Step ( )
21
205405060
Screw-socket Bn.hd.iso.7380a2 ( )
22
234001600
Washer-flat Din.125a-a2 ( )
23
234101601
Washer-lock Helical Din.127b-a2 ( )
26
204130079
Anneau Etanche*trim-lok ( )
27
204061139
Doubl.range.*liner-storage/port-stern ( )
29
204061140
Tapis-rangem.*carpet-storage/stern ( )
31
204550028
Enveloppe Isol.*slit-conduit ( )
33
204071166
Raccord-drain*fitting-drain ( )
34
202000024
Neoprene *neoprene ( )
35
204061138
Doublure-tapis*liner-mat ( )
