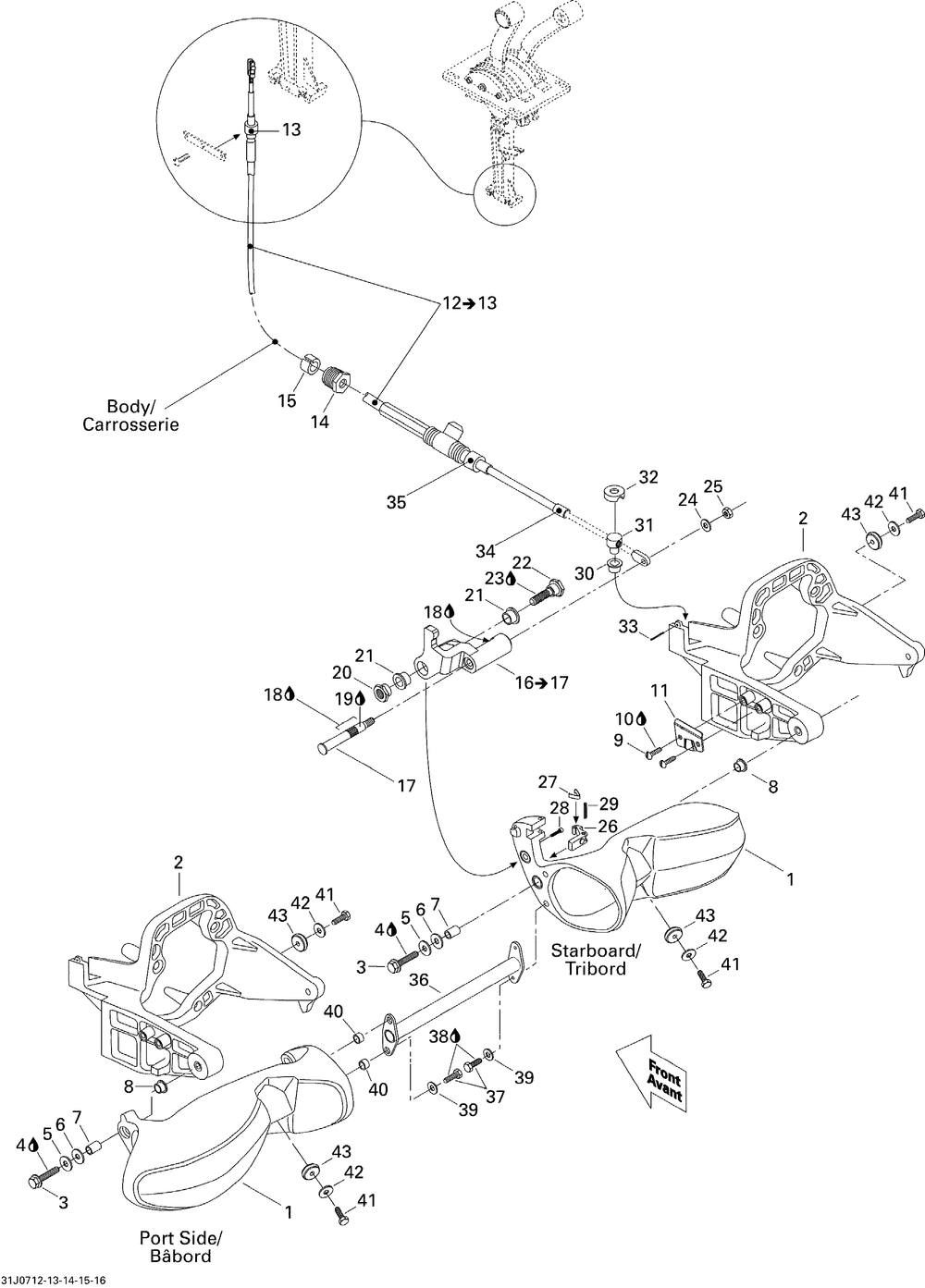

Задний ход

Sea-Doo (Bombardier) Challenger 230 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
204170218
Vanne Renver.*gate-reverse/stbd. ( )
1
204170217
Vanne Renver.*gate-reverse/port ( )
2
204170214
Supp. Vanne*support-gate ( )
3
204100163
Screw-hex.flange 5/16-18x1.56 ( )
4
293800060
Loctite 243
5
234082600
Washer-flat Din.9021b-a2 ( )
6
204100128
Rondel.nylon *washer-nylon ( )
7
204170177
Manchon *sleeve ( )
8
204130237
Douille *bushing ( )
9
204100122
Screw-pan Hd. 10-24 Unc X .50 Ss ( )
11
271000485
Cran D Arret *pawl-stop ( )
12
204160218
Cable Renverse*cable-reverse (includes 12 To 13 )
13
277000846
Embout Grand *boot-large ( )
14
277000784
Barrure Cable *lock-cable ( )
15
204130041
Passe-fils *grommet-rubber ( )
16
204170230
Levier Goupille*lever-pin Assy. (includes 16 To 17 )
17
204130037
Goupille *pin-s.s. ( )
18
293800041
Appret Loctite *primer-loctite ( )
19
413711400
Герметик Loctite-648
20
204100123
Nut-shoulder 5/16-18 Unc S.s. ( )
21
204130036
Douille *bushing ( )
22
204100124
Vis Epaulem.*screw-shoulder 5/16-18 ( )
23
293800005
Loctite 271 *loctite-271 ( )
24
234052600
Washer-flat Din.9021b-a2 ( )
25
204100034
Nut-stop Elastic 10-24 Ss ( )
26
204170220
Crochet Acier*hook-s.s. / Cast ( )
27
271000431
Ressort *spring ( )
28
204100127
"screw-socket Hd.1/4""-20 X 3/8""-ss" ( )
29
211400009
Pin-roll Spring Tension 1/8 ( )
31
204130038
Douille Lait.*bushing-brass ( )
32
204170212
Douille *bushing-reverse Cable ( )
33
204130040
Goupille Fend.*pin-cotter ( )
34
277000849
Embout Petit *boot-small ( )
36
204170245
Tige Renverse*tie Rod-reverse ( )
37
207142060
Screw-hex.cap Din.933a2 ( )
39
234042600
Washer-flat Din.9021b-a2 ( )
40
204170026
Douille Ecart. *bushing-spacer ( )
41
207362060
Винт Din.933a2 (отпуск.по 10шт)
42
234061600
Washer-flat Din.125a-a2 ( )
43
271001487
Anode Zinc *anode Zinc ( )
