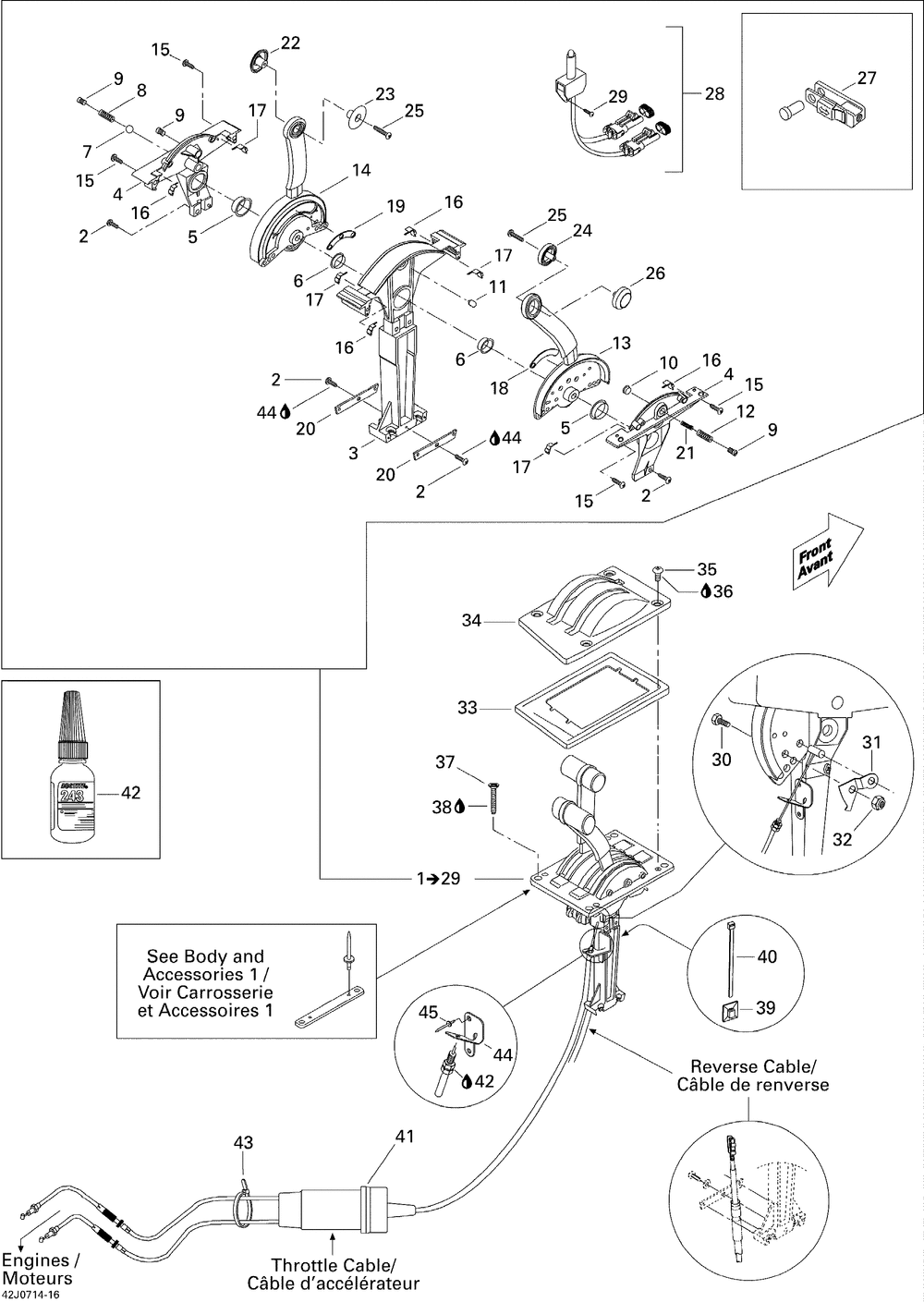

Ручное управления

Sea-Doo (Bombardier) Challenger 230 WAKE 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
204390494
Contr.ultraf*control-ultraflex (includes 1 To 29 )
2
204130092
Vis M5 X 16 *screw M5 X 16 / Din.7985 ( )
3
204390224
Cadre Usine *frame-machined ( )
5
277000397
Coussinet *bush ( )
6
277000398
Coussinet *bush ( )
7
277000399
Bille *ball ( )
9
277000402
Vis Capuchon *screw-cap ( )
10
277000403
Ajout Friction *insert-frict. ( )
11
277000404
Pivot Blocage *pivot-blocking ( )
12
277000401
Ressort *spring ( )
13
204390499
Levier Accl*lever-throttle ( )
14
204390501
Levier-transm.*lever-shifter ( )
15
204100016
Vis M5 X 20 *screw-uni 7687 ( )
18
277000707
Entretoise Lev.*spacer-lev.thr ( )
19
277000408
Entretoise Lev.*spacer-lev.shi ( )
20
204390227
Plaque Retenue *plate-retaining ( )
22
277000417
Demi-cap.filete*half-cap Shift ( )
23
277000418
Demi-cap.ouvert*half-cap Shift ( )
24
277000416
Demi-cap.ouvert*half-cap Throt ( )
25
277000419
Vis M3.5 X 25 *screw-uni 6954 ( )
26
277000415
Demi-cap.filete*half-cap Throt ( )
27
204390226
Clevis L26 *clevis L26 ( )
28
204390464
Inter.neutre *switch-neutral/dual ( )
29
208630660
Screw-pan Hd.ph.din.7985a-a2 ( )
30
207151660
Screw-hex.cap Din.933a2 ( )
31
204390045
Maille Cable *link-throttle ( )
32
232551600
Nut-stop Elastic Din.985a2 ( )
33
204390482
Base-plaque *base-control Plate ( )
34
204390523
Ajout-comm.*insert-control Plate ( )
35
208641060
Screw-pan Hd.ph.din.7985a-a2 ( )
36
293800040
Loctite 425 *loctite-425 ( )
37
205353060
Screw-socket Hd.ctsk.din.7991-a2 ( )
38
293800070
Loct.anti Grip.*loct-antiseize ( )
39
293750015
Ancrage Tie Rap*mount-tie Rap ( )
40
293750001
Tie Rap 94mm *tie-rap 94mm ( )
41
204390469
Cable Accelerat*throttle Cable ( )
42
293800060
Loctite 243
43
414115200
Tie-rap 180 Mm ( )
44
277000504
Support Cable *support-cable ( )
45
293150026
Rivet-pop 1/8 *rivet-pop 1/8 ( )
