1. Главная
  2. Оригинальные запчасти для катеров
  3. Sea-Doo (Bombardier)
  4. 2007
  5. Challenger 230WAKE 215 SCIC
  6. Двигатель

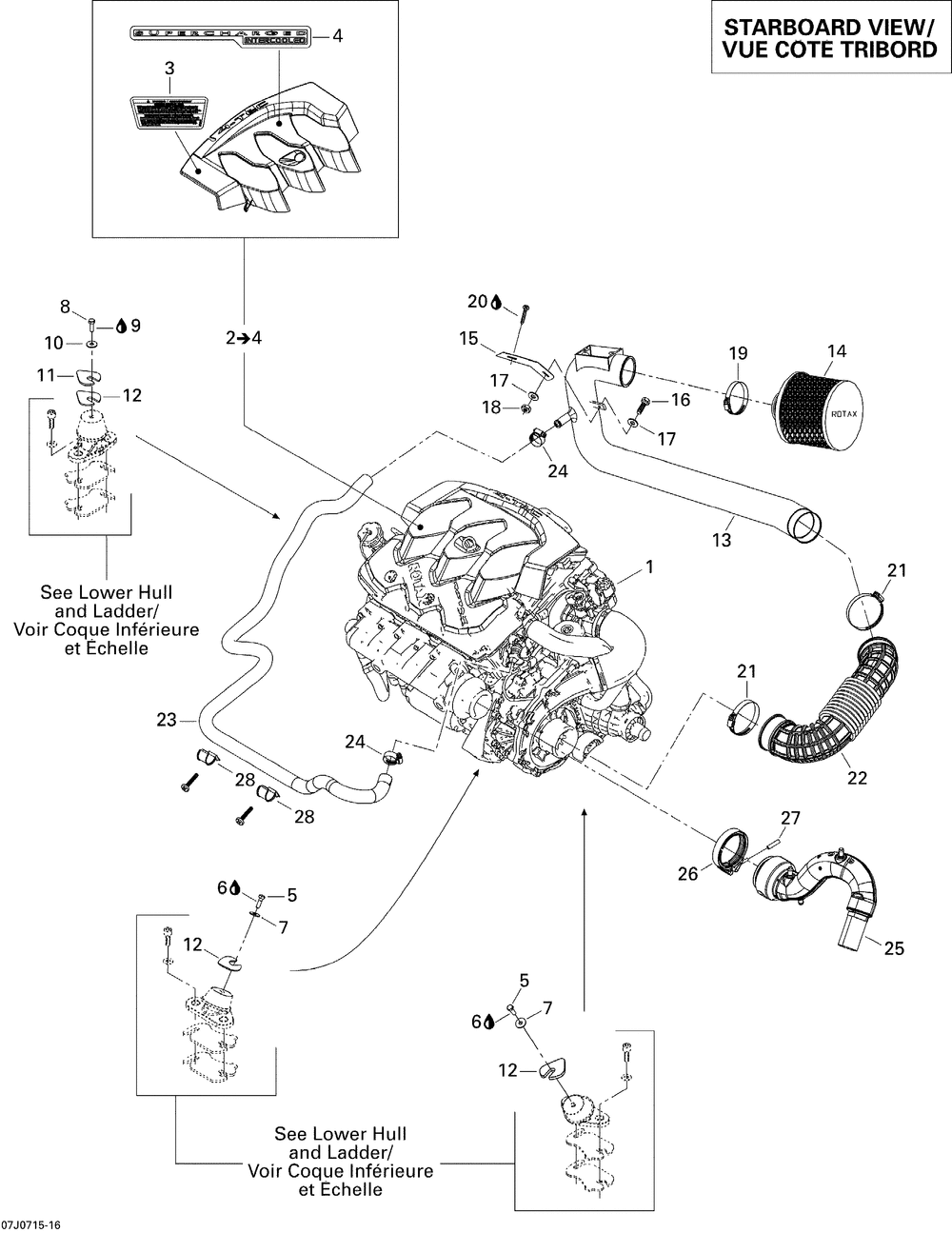

Двигатель

Sea-Doo (Bombardier) Challenger 230WAKE 215 SCIC
Sea-Doo (Bombardier)
#oem кодцена
3
219902674
Avertissement *warning ( )
4
219902676
Decalque Moteur*engine Decal ( )
5
207182560
Screw-hex.cap Din.933a2 ( )
6
293800060
Loctite 243
7
234082600
Washer-flat Din.9021b-a2 ( )
11
270000025
Cale Epaisseur *shim-1.3mm ( )
12
270000024
Cale Epaisseur *shim-0.4mm ( )
13
204250397
Chambre D Admiss.*tube-intake ( )
14
204250466
Filtre Air *filter-air ( )
15
204250404
Support D Admis.*bracket-intake ( )
16
207162060
Screw-hex.cap Din.933a2 ( )
17
211200055
Washer-flat Ss/neoprene ( )
18
232561600
Nut-stop Elastic Din.985-a2 ( )
19
293650179
Bride Serrage *clamp-tridon ( )
20
293800021
Loctite 495 *loctite-495 ( )
21
293650061
Bride Serrage *clamp-tridon ( )
22
273000188
Boyau Admission*hose-intake ( )
23
270000655
Boyau Forme *hose-formed ( )
24
293650051
Collet A Vis *gear Clamp ( )
25
274001049
Conduit Echap. *exhaust Pipe ( )
26
274000959
Bride *exhaust Clamp ( )
27
415080200
Boyau Polyure *polyurethane Hose ( )
28
275500664
Attache *retainer ( )
