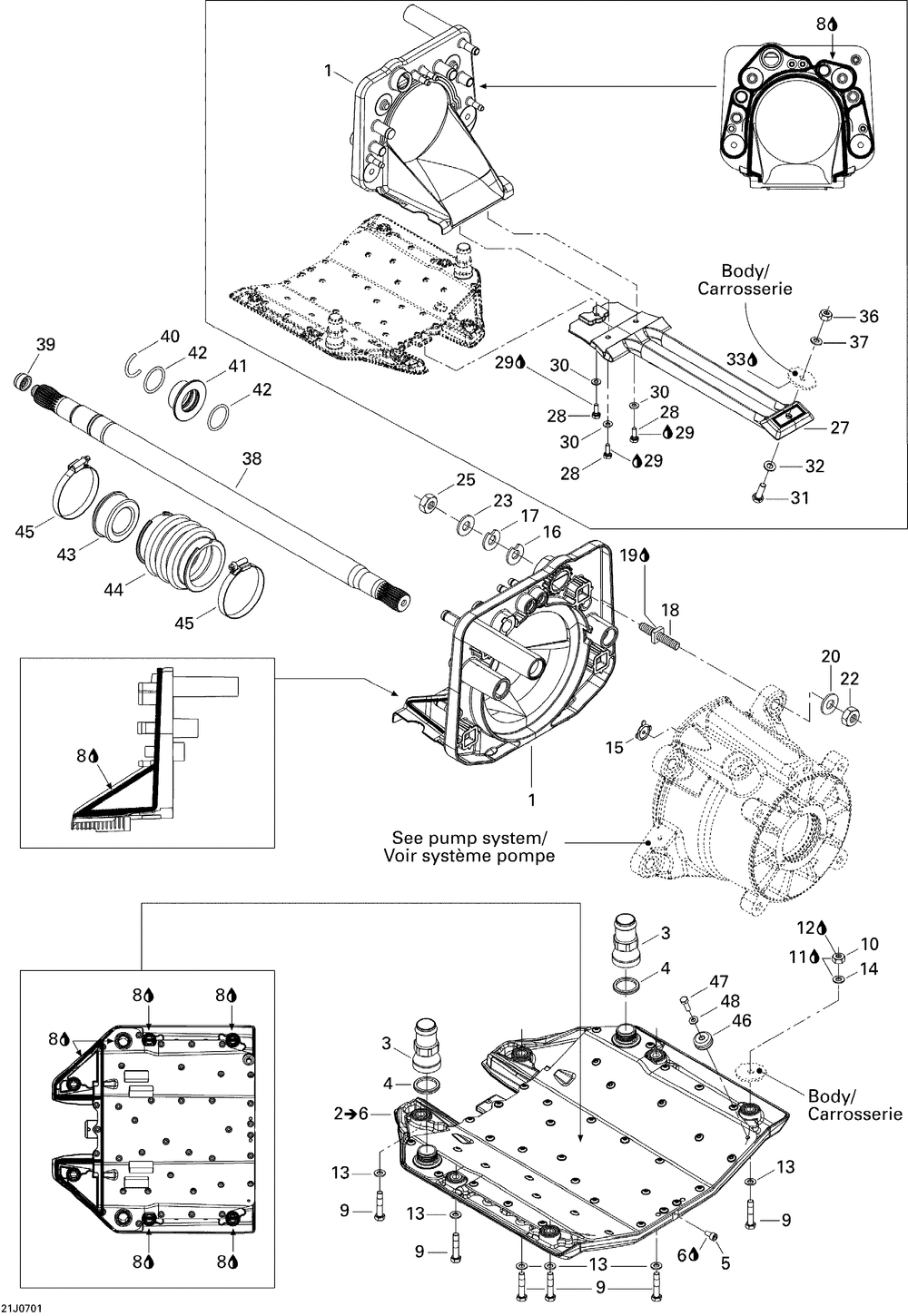

Вал водомета

Sea-Doo (Bombardier) Speedster 150 155NA
Sea-Doo (Bombardier)
#oem кодцена
1
204120314
Supp.pompe*support-pump/machined ( )
2
204120312
Plaque-promen.*plate-ride Assy. (includes 2 To 6 )
3
293710111
Raccord Droit *fitting-strait ( )
4
293300121
Кольцо
5
250500005
Plug-drain M6x12 Din.912a2 Ss-304 ( )
6
293800013
Scellant Tuyau *sealant-pipe ( )
8
219701421
Instant Gasket *instant Gasket ( )
9
207084060
Screw-hex.cap Din.931a2 ( )
10
232581600
Nut-stop Elastic Din.985a2 ( )
12
293800060
Loctite 243
13
234081600
Washer-flat Din.125a-a2 ( )
14
234082600
Washer-flat Din.9021b-a2 ( )
15
291001887
Reducteur *reducer ( )
16
272000053
Cale Epaisseur *shim ( )
17
204120067
Cale Epaisseur *shim-0.9mm ( )
18
250300022
Goujon Carre *stud-square ( )
19
293800038
Loctite 518 *loctite-518 ( )
20
211200051
Rondelle *washer-flat ( )
22
232501200
Nut-stop Elastic Din.985 ( )
23
234002600
Washer-flat Din.9021b-a2 ( )
27
271001560
Grille Pompe *grate-pump ( )
28
207161660
Screw-hex.cap Din.933a2 ( )
29
293800005
Loctite 271 *loctite-271 ( )
30
234061600
Washer-flat Din.125a-a2 ( )
31
207184060
Screw-hex.cap Din.933a2 ( )
38
271001534
Arbre Transm. *drive Shaft ( )
39
272000173
Bouchon *plug ( )
40
271001575
"pince En ""c"" *clip ""c""" ( )
41
272000176
Bague Supp.flot*support Ring ( )
42
293300044
Кольцо
43
272000177
Bague Carbone *carbon Ring ( )
44
272000183
Soufflet *bellow ( )
45
293650077
Bride Serrage *clamp-norma ( )
46
271001487
Anode Zinc *anode Zinc ( )
47
207362060
Винт Din.933a2 (отпуск.по 10шт)
