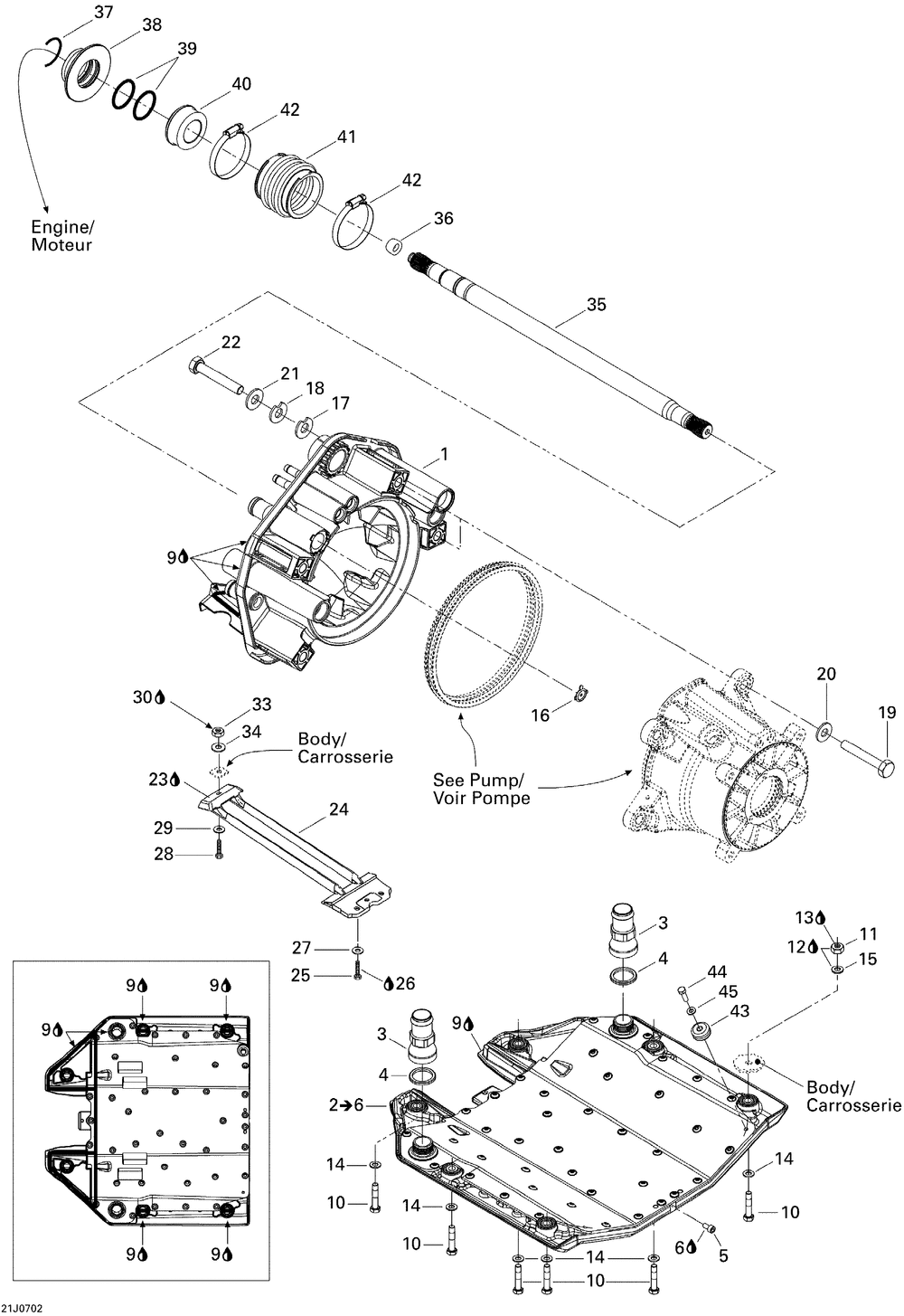

Вал водомета

Sea-Doo (Bombardier) Speedster 150 215IC
Sea-Doo (Bombardier)
#oem кодцена
1
204120315
Supp.pompe*support-pump/machined ( )
2
204120312
Plaque-promen.*plate-ride Assy. (includes 2 To 6 )
3
293710111
Raccord Droit *fitting-strait ( )
4
293300121
Кольцо
5
250500005
Plug-drain M6x12 Din.912a2 Ss-304 ( )
6
293800013
Scellant Tuyau *sealant-pipe ( )
9
219701421
Instant Gasket *instant Gasket ( )
10
207084060
Screw-hex.cap Din.931a2 ( )
11
232581600
Nut-stop Elastic Din.985a2 ( )
13
293800060
Loctite 243
14
234081600
Washer-flat Din.125a-a2 ( )
15
234082600
Washer-flat Din.9021b-a2 ( )
16
291001887
Reducteur *reducer ( )
17
272000053
Cale Epaisseur *shim ( )
18
204120067
Cale Epaisseur *shim-0.9mm ( )
19
250000188
Screw-hex.cap Din.931a2 S.grip ( )
20
211200051
Rondelle *washer-flat ( )
21
234002600
Washer-flat Din.9021b-a2 ( )
22
250000189
Screw-hex.cap Din.931a2 S.grip ( )
24
204120294
Grille Pompe *grate-pump ( )
25
207161660
Screw-hex.cap Din.933a2 ( )
26
293800005
Loctite 271 *loctite-271 ( )
27
234061600
Washer-flat Din.125a-a2 ( )
28
207184060
Screw-hex.cap Din.933a2 ( )
35
204120279
Arbre Transm. *drive Shaft ( )
36
272000173
Bouchon *plug ( )
37
271001433
"pince En ""c"" *""c"" Clip" ( )
38
271001434
Bague Supp.flot*support Ring ( )
39
293300107
Кольцо
40
271001420
Bague Carbone *carbon Ring ( )
41
271001422
Soufflet *bellow ( )
42
293650079
Bride Serrage *clamp-norma ( )
43
271001487
Anode Zinc *anode Zinc ( )
44
207362060
Винт Din.933a2 (отпуск.по 10шт)
