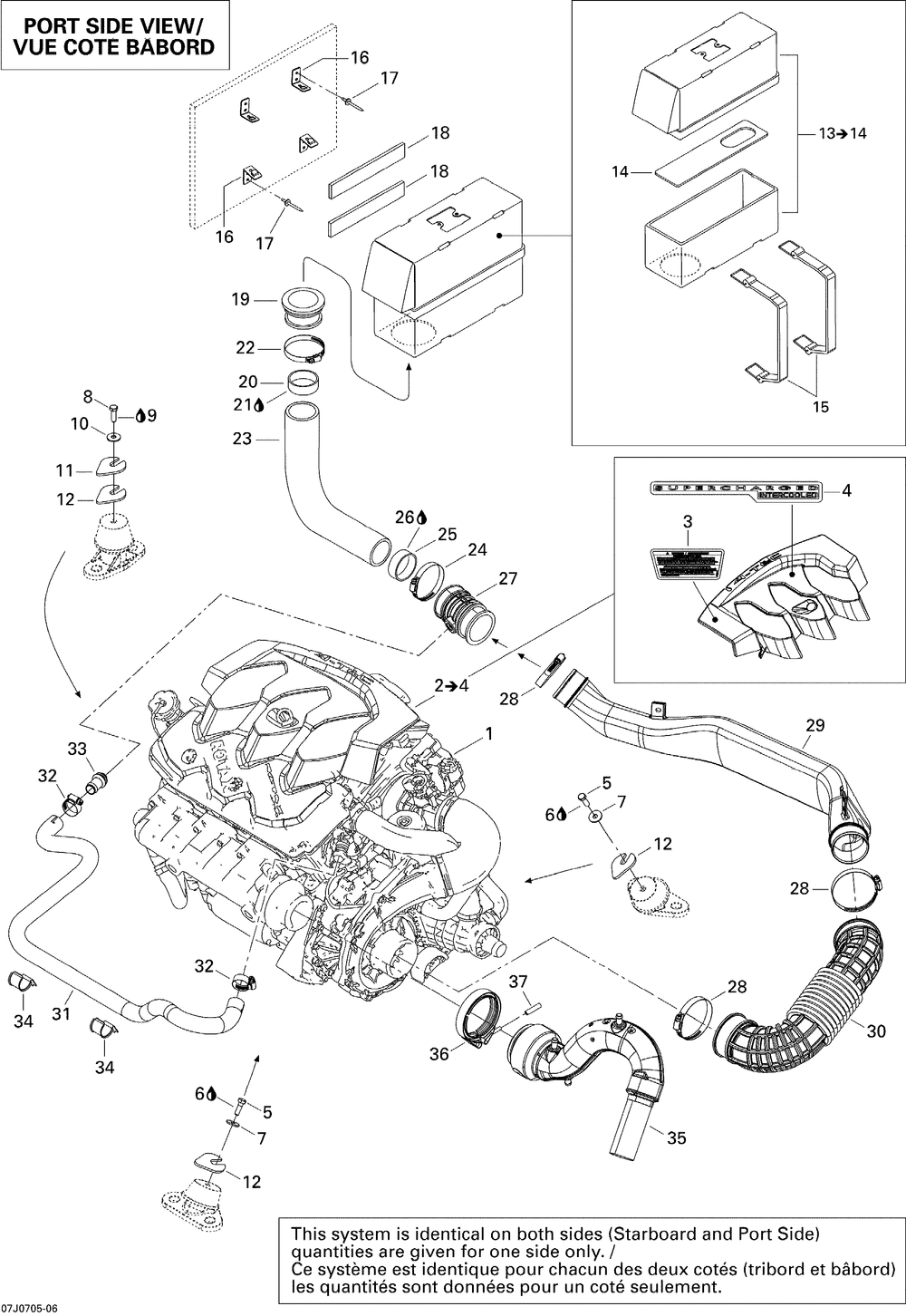

Опора двигателя и глушитель воздухозаборника

Sea-Doo (Bombardier) Speedster WAKE 215IC
Sea-Doo (Bombardier)
#oem кодцена
3
219902674
Avertissement *warning ( )
4
219902676
Decalque Moteur*engine Decal ( )
5
207182560
Screw-hex.cap Din.933a2 ( )
6
293800060
Loctite 243
7
234082600
Washer-flat Din.9021b-a2 ( )
11
270000025
Cale Epaisseur *shim-1.3mm ( )
12
270000024
Cale Epaisseur *shim-0.4mm ( )
13
204250409
Silenc.adm.*silencer-air Assy. (includes 13 To 14 )
14
204250324
Separ.silenc.*divider-air Silencer ( )
15
293850077
Sangle Retenue *strap-rubber ( )
16
204060017
Pince Courroie *clip-strap ( )
17
293150088
Rivet-pop 3/16 *rivet-pop 3/16 ( )
18
202000024
Neoprene *neoprene ( )
19
508000254
Adapt.adm. *adaptator-intake ( )
20
204250275
Support *support ( )
21
293800021
Loctite 495 *loctite-495 ( )
22
293650179
Bride Serrage *clamp-tridon ( )
23
204340435
Boyau D Admis.*hose-intake ( )
27
204250276
Adapt.boyau *adaptor-hose/engine ( )
29
273000185
Boyau Admission*intake Hose ( )
30
273000188
Boyau Admission*hose-intake ( )
31
270000655
Boyau Forme *hose-formed ( )
32
293650051
Collet A Vis *gear Clamp ( )
33
273000234
Breather ( )
34
275500664
Attache *retainer ( )
35
274001049
Conduit Echap. *exhaust Pipe ( )
36
274000959
Bride *exhaust Clamp ( )
37
415080200
Boyau Polyure *polyurethane Hose ( )
