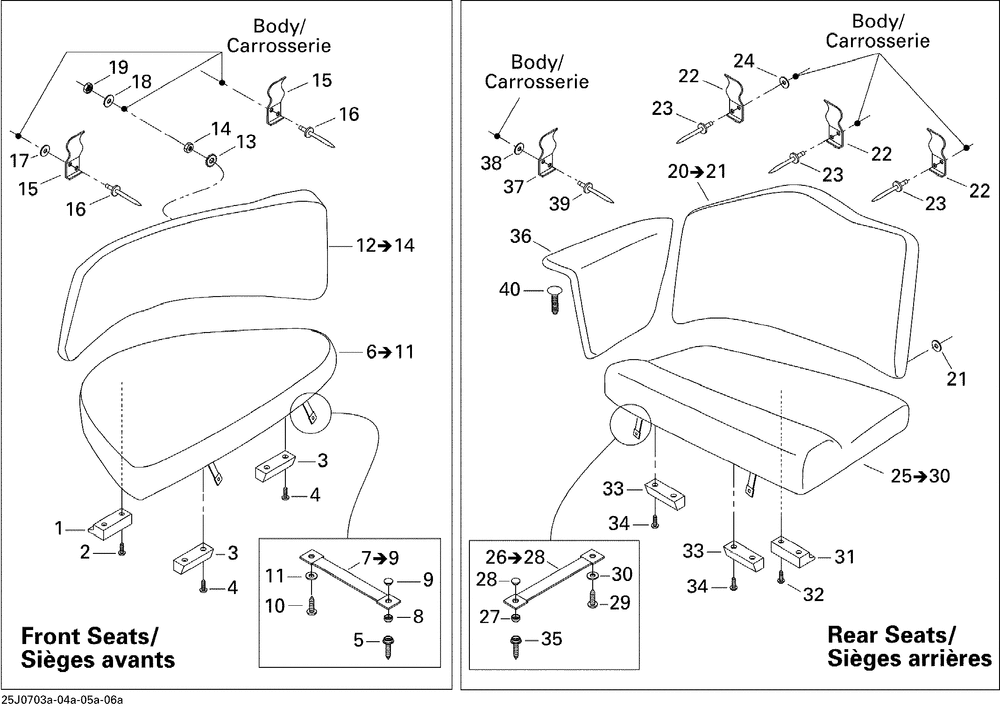

Сидение 1

Sea-Doo (Bombardier) Speedster WAKE 215IC
Sea-Doo (Bombardier)
#oem кодцена
1
204611940
Loq.base Siege*catch-seat Base ( )
2
204100039
"screw-ctsk.fl.hd.ph. 1/4x20x2""" ( )
3
204611805
Loquet Base*catch-seat Base ( )
4
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
5
202000159
"screw-stud Tapp. 3/8"" Ss" ( )
6
204613378
Siege Avant Ass*seat-front Assy. (includes 6 To 11 )
6
204613391
Siege Avant Ass.*seat-front Assy. (includes 6 To 11 )
8
204000083
Att.press.base *snap-base ( )
9
204611609
Att.press.couv.*snap-cover ( )
10
204100054
"screw-tapp.ctsk.fl.hd.ph.#8 X 3/4""" ( )
11
211200019
Washer-flat 1/4 Ss-316 ( )
12
204613387
Dossier Ass.*backrest Assy. (includes 12 To 14 )
12
204613389
Dossier Ass.*backrest Assy. (includes 12 To 14 )
13
234461608
Washer-lock Serrated Din.6798a-a2 ( )
14
204100060
Nut-jam Hexagonal 1/4-20 Ss ( )
15
204610288
Support Siege *support-seat ( )
16
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
17
234052400
Washer-flat Din.7349 ( )
18
204100139
Washer-fender/s.s. ( )
19
211100026
Nut-hexagonal 1/4-20 ( )
20
204613393
Dossier Arr.*backrest-rear/stbd. (includes 20 To 21 )
20
204613395
Dossier Arr.*backrest-rear/port (includes 20 To 21 )
21
234062600
Washer-flat Din.9021b-a2 ( )
25
204613397
Siege Arriere*seat-rear Assy/port (includes 25 To 30 )
25
204613399
Siege Arriere*seat-rear Assy/stbd. (includes 25 To 30 )
36
204613401
Appui-bras *armrest-stbd. ( )
36
204613403
Appui-bras *armrest-port ( )
40
293730021
Dard *dart ( )
