Корпус

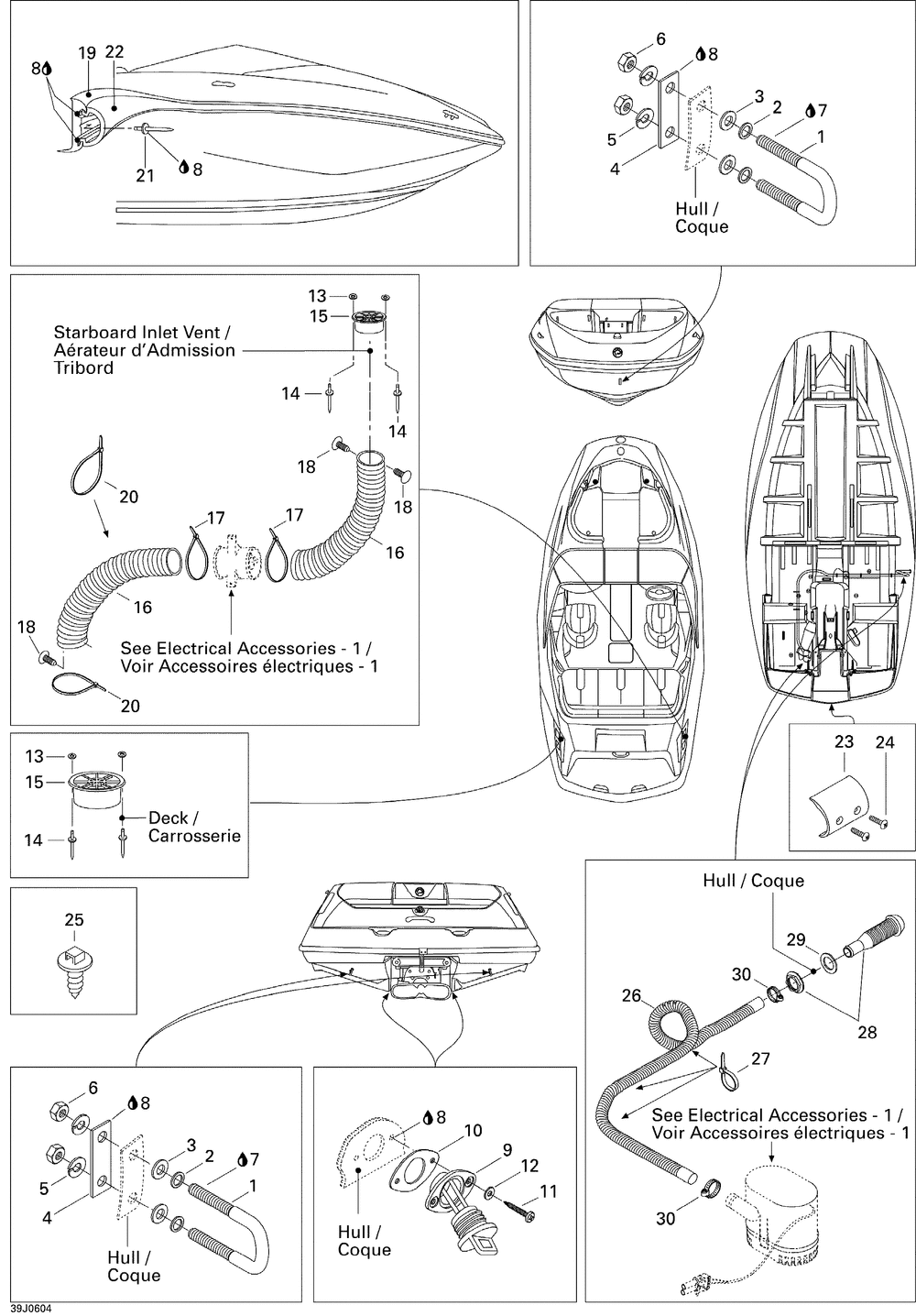

Sea-Doo (Bombardier) Challenger CS TOWER, Edition 1
Sea-Doo (Bombardier)
#oem кодцена
1
292000063
Bride En U *u-clamp ( )
2
293050001
Rondelle Plate *flat Washer ( )
3
211200029
Washer-flat Plastic ( )
4
291000307
Plaque Retenue *plate-retainer ( )
5
234181601
Washer-lock Helical Din.127b-a2 ( )
6
232081600
Nut-hexagonal Din.934a2 ( )
7
293800005
Loctite 271 *loctite-271 ( )
9
292000187
Bouchon Purge *plug-drain ( )
10
293250030
Joint Etanche *gasket ( )
11
209642560
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
12
234041600
Washer-flat Din.125a-a2 ( )
13
211200039
Washer-flat Din.125a ( )
14
293150088
Rivet-pop 3/16 *rivet-pop 3/16 ( )
15
204050637
"grille D Arat.*grill-vent/4"" Black" ( )
16
204050476
Boyau Ventilat.*hose-vent ( )
17
293750008
Tie Rap 350mm *tie-rap 350mm ( )
18
293730006
Dard Noir *dart-black ( )
19
204050606
Pare-chocs*bumper-charc.gray ( )
21
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
22
204050607
Moulure *trim-bumper/charc.gray ( )
23
204050630
Cache-joint *cover-bumper/charc.gray ( )
24
209943260
Screw-tapp.ctsk.ov.hd.din.7983c-a2 ( )
26
291001206
Boyau Bilgeflex*hose-bilgeflex ( )
28
293710015
Raccord *fitting ( )
29
293250006
Joint Etanche *gasket ( )
30
293650016
Bride Serrage *clamp-tridon ( )
