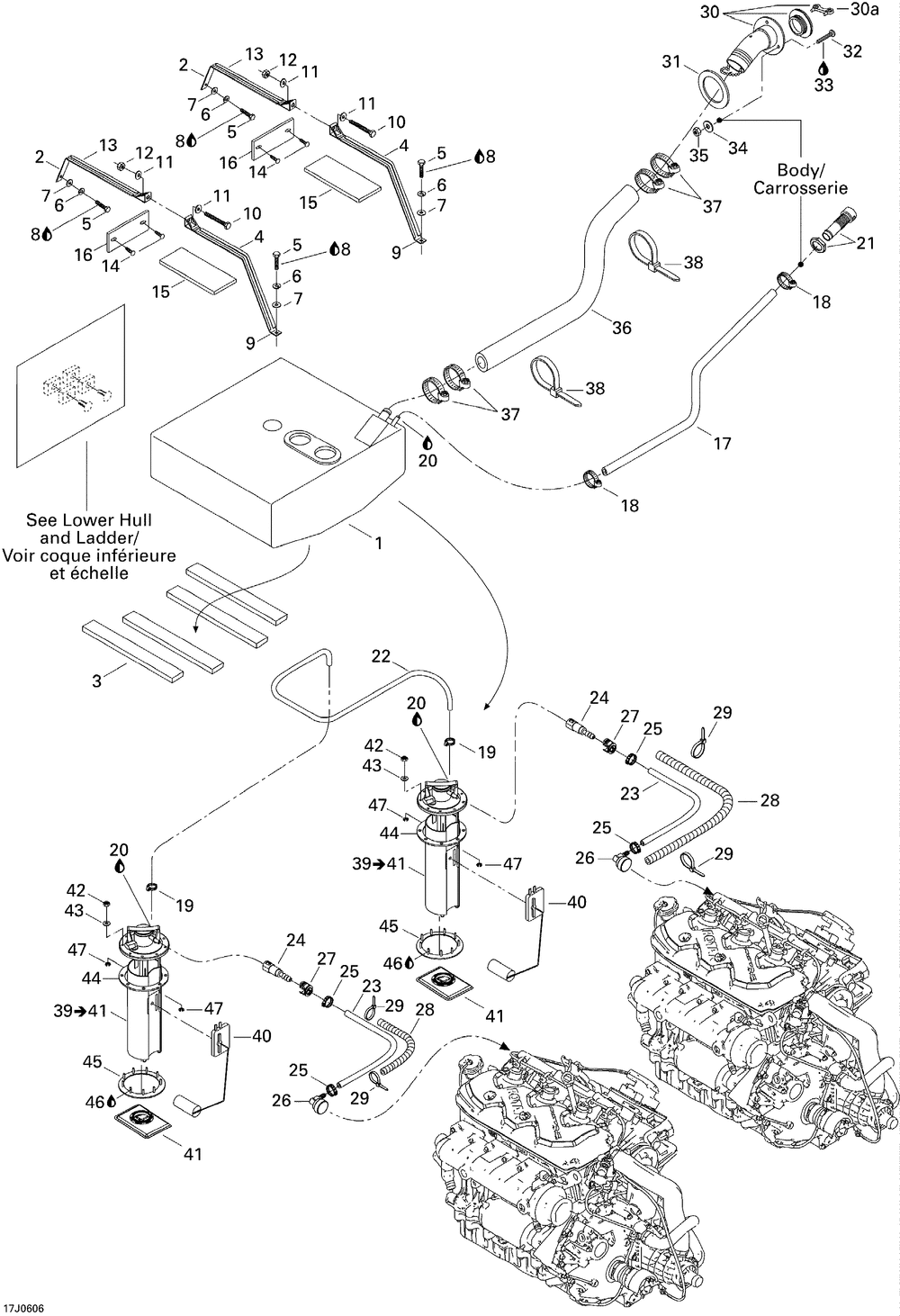

Топливная система

Sea-Doo (Bombardier) Islandia 220
Sea-Doo (Bombardier)
#oem кодцена
1
204560361
Reserv.ess.*tank-fuel Assy. ( )
2
204560235
Sangle Metal.*strap-metal ( )
3
204560115
Tampon Protect.*pad-protector ( )
5
207183060
Screw-hex.cap Din.933a2 ( )
6
234181601
Washer-lock Helical Din.127b-a2 ( )
7
234082600
Washer-flat Din.9021b-a2 ( )
8
293800005
Loctite 271 *loctite-271 ( )
9
204560181
Sangle Res.ess.*strap-fuel Tank ( )
10
207188060
Screw-hex.cap Din.933a2 ( )
12
232581600
Nut-stop Elastic Din.985a2 ( )
13
293830044
Tampon Protect.*pad-protector ( )
14
293730006
Dard Noir *dart-black ( )
15
204560191
Tampon Sangle *pad-strap/fuel Tank ( )
16
204060702
Tamp.caout.*pad-rubber/muffler ( )
17
275500205
Boyau 16mm. *hose-16mm. ( )
18
293650069
Bride Serrage *clamp-norma ( )
19
293650170
Collet A Vis *gear Clamp ( )
21
204560126
Aerateur Essen.*vent-fuel ( )
22
204560178
"boyau *hose-1/4""" ( )
23
275500626
"boyau 5/16"" *hose-5/16""" ( )
24
275500428
Boitier Connec.*connector-box ( )
25
293650011
Collet A Sertir*crimp Clamp ( )
26
293710105
Raccord Coude90*fitting-elbow ( )
27
275500429
Barette Connec.*connector-stopper ( )
28
204550028
Enveloppe Isol.*slit-conduit ( )
29
293750002
Tie Rap 142mm *tie-rap 142mm ( )
30
204560180
Goulot Remplis.*neck-filler ( )
31
204560188
Entretoise *spacer ( )
32
208553060
Screw-ctsk.ov.hd.ph.din.966a-a2 ( )
34
234051600
Washer-flat Din.125a-a2 ( )
35
232551600
Nut-stop Elastic Din.985a2 ( )
36
204560294
Boyau Remp.ext.*hose-fill Neck/soft ( )
37
293650174
Bride Serrage *clamp-norma ( )
38
414115200
Tie-rap 180 Mm ( )
39
270600087
Module P.essen.*module-fuel P. (includes 39 To 41 )
40
270600051
Levier Capteur *lever-sensor ( )
41
219700368
Filtreur Bosch *bosch Filter ( )
42
232551200
Nut-stop Elastic Din.985 ( )
43
234052400
Washer-flat Din.7349 ( )
44
293250088
Joint Etanche *gasket ( )
45
275500679
Anneau En C *c Ring 9 Stud ( )
46
293800038
Loctite 518 *loctite-518 ( )
47
293370002
Circlip-sstl.5mm.din.6799 ( )
30a
219700344
Clef *key ( )
