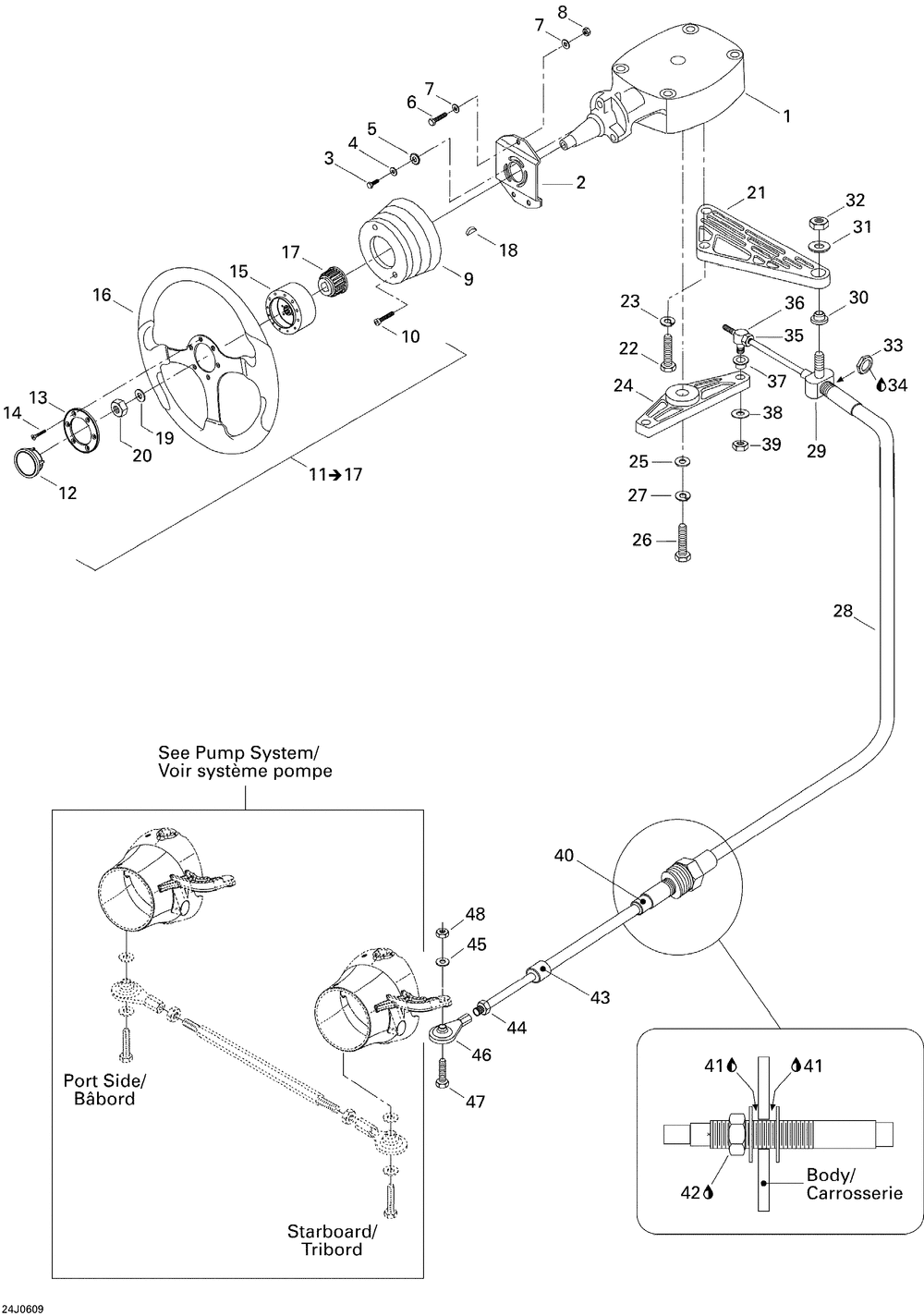

Рулевая система

Sea-Doo (Bombardier) Speedster 200 Twin 4-TEC SCIC, Edition 1
Sea-Doo (Bombardier)
#oem кодцена
1
204390244
Gouvernail Ass.*helm-assy. ( )
2
277000383
Supp.gouvernail*supp-helm ( )
3
211000050
Screw-hex.s.grip #2353 Yellow ( )
4
234062600
Washer-flat Din.9021b-a2 ( )
5
234481608
Washer-lock Serrated Din.6798a-a2 ( )
6
207163060
Screw-hex.cap Din.933a2 ( )
7
234061600
Washer-flat Din.125a-a2 ( )
8
232561600
Nut-stop Elastic Din.985-a2 ( )
9
204390030
Collier Noir *collar-black ( )
10
204390059
Vis Fil.coupant*screw-thread ( )
12
204390327
Capuch.centre*cap-center ( )
13
204390423
Bague Centre*ring-center ( )
14
204390329
Sac De Vis *pack-screw ( )
15
204390443
Moyeu Nylon*hub-nylon/steering ( )
16
204390424
Volant Direct.*wheel-steering ( )
17
204390444
Ajout Moyeu*insert-hub/steering ( )
18
277000384
Clavette *key-woodruff ( )
19
211200006
Washer-flat Stlss 1/2 ( )
20
211100021
Nut-locking ( )
21
277000458
Support Cable *support-cable ( )
23
211200025
"rondelle Frein *washer-lock 1/4""" ( )
24
204390040
Bras *arm ( )
26
211000054
Screw-hex.s.grip #2353 Yellow ( )
28
204390382
Cable Direct. *cable-steering ( )
29
277000461
Pivot 3/8 *pivot-3/8 ( )
30
293350014
Douille Epaul. *flange Bushing ( )
31
234001600
Washer-flat Din.125a-a2 ( )
32
211100024
Nut-locking ( )
33
204390053
Nut-hex.jam ( )
34
293800060
Loctite 243
35
277000439
Ecrou 5/16-24 *nut-5/16-24 ( )
36
277000456
Pivot Teleflex *pivot-teleflex ( )
37
204130095
Douille *bushing ( )
38
211200019
Washer-flat 1/4 Ss-316 ( )
39
212000005
Nut-stop Elastic Ms-17830 ( )
40
277000440
Env.etanche *swivel-seal ( )
43
277000441
Racleur *wiper-terminal ( )
46
204120074
Joint Rotule *ball Joint ( )
47
207063560
Screw-hex.cap Din.931a2 ( )
