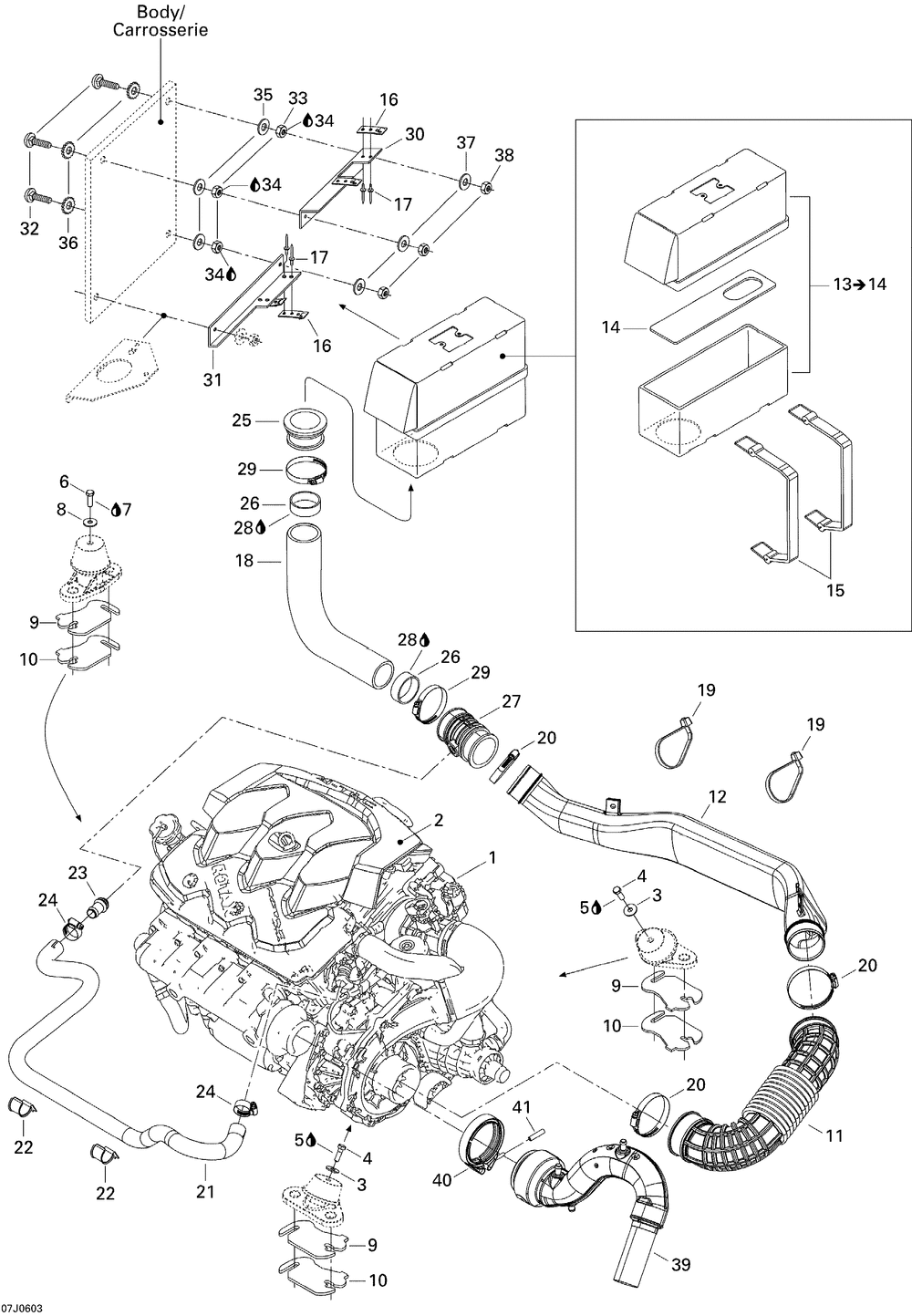

Опора двигателя и глушитель воздухозаборника

Sea-Doo (Bombardier) Sportster 4-TEC SCIC, Edition 2
Sea-Doo (Bombardier)
#oem кодцена
3
234082600
Washer-flat Din.9021b-a2 ( )
4
207182560
Screw-hex.cap Din.933a2 ( )
5
293800060
Loctite 243
9
270000446
Cale Epaisseur *shim-1.3mm. ( )
10
270000445
Cale Epaisseur *shim-0.3mm ( )
11
273000188
Boyau Admission*hose-intake ( )
12
273000185
Boyau Admission*intake Hose ( )
13
204250409
Silenc.adm.*silencer-air Assy. (includes 13 To 14 )
14
204250324
Separ.silenc.*divider-air Silencer ( )
15
293850077
Sangle Retenue *strap-rubber ( )
16
293850024
Pince Courroie *clip-strap ( )
17
204000081
Rivet-pop 3/16 *rivet-pop 3/16 ( )
18
204340435
Boyau D Admis.*hose-intake ( )
19
293750008
Tie Rap 350mm *tie-rap 350mm ( )
20
293650179
Bride Serrage *clamp-tridon ( )
21
270000655
Boyau Forme *hose-formed ( )
22
275500664
Attache *retainer ( )
23
273000195
Reniflard *breather ( )
24
293650051
Collet A Vis *gear Clamp ( )
25
508000254
Adapt.adm. *adaptator-intake ( )
26
204250275
Support *support ( )
27
204250276
Adapt.boyau *adaptor-hose/engine ( )
28
293800021
Loctite 495 *loctite-495 ( )
29
293650064
Bride Serrage *clamp-tridon ( )
30
204250285
Supp.silen.adm.*bracket-air Silenc/top ( )
31
204250284
Supp.silen.adm.*bracket-air Silenc/bttm. ( )
32
204000130
Bolt-elevator ( )
33
211100026
Nut-hexagonal 1/4-20 ( )
34
293800005
Loctite 271 *loctite-271 ( )
35
234081600
Washer-flat Din.125a-a2 ( )
36
234381608
Washer-lock Toothed Din.6797a-a2 ( )
37
234062600
Washer-flat Din.9021b-a2 ( )
38
212000005
Nut-stop Elastic Ms-17830 ( )
39
274001049
Conduit Echap. *exhaust Pipe ( )
40
274000959
Bride *exhaust Clamp ( )
41
415080200
Boyau Polyure *polyurethane Hose ( )
