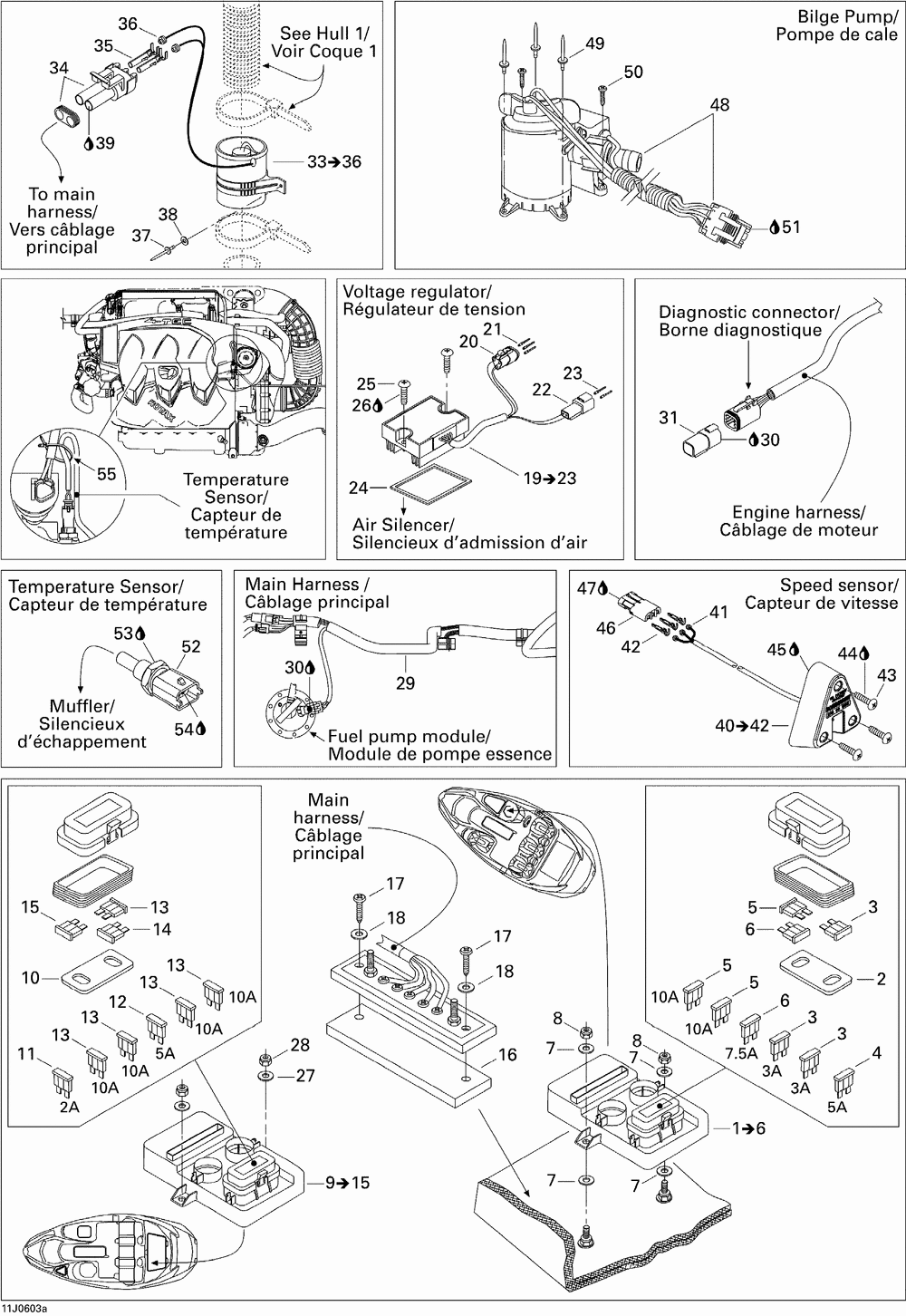

Электрика 1

Sea-Doo (Bombardier) Sportster 4-TEC SCIC, Edition 2
Sea-Doo (Bombardier)
#oem кодцена
1
204470771
Interface *interface-single Engine (includes 1 To 6 )
2
278001719
Cous.fusible *foam-support ( )
3
278001196
Fusible 3 Amp. *fuse-3 Amp. ( )
4
278000344
Fusible 5 Amp. *fuse-5 Amp. ( )
5
278001197
Fusible 10 Amp.*fuse-10 Amp. ( )
6
278000704
Fusible 7.5amp.*fuse-7.5 Amp. ( )
7
234062600
Washer-flat Din.9021b-a2 ( )
8
232561600
Nut-stop Elastic Din.985-a2 ( )
9
204470770
Bloc Fusible*block-fuse (includes 9 To 15 )
11
278001442
Fusible 2 Amp. *fuse-2 Amp. ( )
15
410917200
Fusible 30 Amp *fuse 30 Amp ( )
16
204471076
Ajout D Alum.*tapping-ground Buss Bar ( )
17
208641060
Screw-pan Hd.ph.din.7985a-a2 ( )
18
234041600
Washer-flat Din.125a-a2 ( )
19
278001969
Regulateur *regulator (includes 19 To 23 )
20
409207400
Logement Femel.*housing-female ( )
21
278000632
Cosse Femelle *terminal-femal ( )
22
409206900
Logement Male *housing-male ( )
23
515175567
Cosse Femelle *terminal-femal ( )
24
293250123
Joint Etanche *seal-rh. ( )
25
208663060
Screw-pan Hd.ph.din.7985a-a2 ( )
26
293800005
Loctite 271 *loctite-271 ( )
29
204471063
Harnais-acces.*harness-accessory ( )
30
293550004
Graisse Dielect*grease-dielect Dc4 ( )
31
278002148
Capuchon *connect-cap ( )
33
204470108
Ventilateur Ass*fan-assy. (includes 33 To 36 )
34
278000220
Bloc 2 Circ.mal*housing-tab(m) ( )
35
278000223
Cosse Femelle *terminal-femal ( )
36
278000218
Joint De Fil *seal-wire ( )
37
293150088
Rivet-pop 3/16 *rivet-pop 3/16 ( )
38
234052600
Washer-flat Din.9021b-a2 ( )
40
278001993
Capteur Vitesse*sensor-speed (includes 40 To 42 )
41
710000048
Joint De Fil *seal-wire ( )
42
278000222
Cosse Male *terminal-male ( )
43
211000021
Screw-tri.plask Pan.hd.phil. ( )
46
278000281
Bloc 3 Circ.fem*housing-tab ( )
48
204470562
Pompe Cale *pump-bilge ( )
49
293150029
Rivet-pop 5/32 *rivet-pop 5/32 ( )
50
250000090
Screw-tapp.pan Hd.ph.din.7981c-a2 ( )
52
278001016
Capteur Temp. *sensor-liquid ( )
53
293800038
Loctite 518 *loctite-518 ( )
55
293750002
Tie Rap 142mm *tie-rap 142mm ( )
