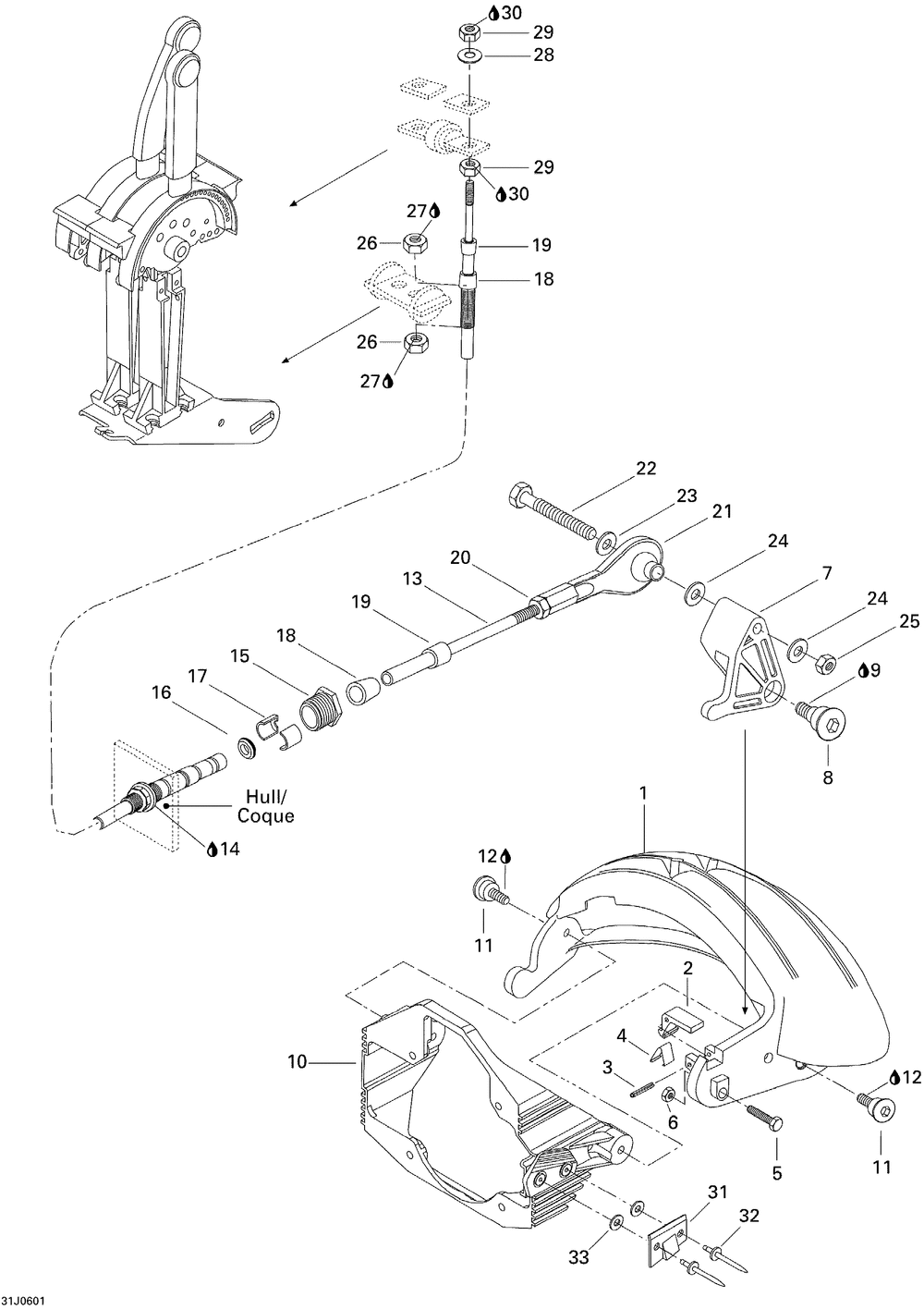

Задний ход

Sea-Doo (Bombardier) Sportster LE DI
Sea-Doo (Bombardier)
#oem кодцена
1
271000947
Vanne Renverse *gate-reverse ( )
2
271000430
Levier Crochet *lever-hook ( )
3
211400009
Pin-roll Spring Tension 1/8 ( )
4
271000431
Ressort *spring ( )
5
207162060
Screw-hex.cap Din.933a2 ( )
6
232561600
Nut-stop Elastic Din.985-a2 ( )
7
271000583
Levier De Cable*lever-cable ( )
8
211000077
Screw-shoulder M8 ( )
9
293800060
Loctite 243
10
271000778
Support Vanne *support-gate ( )
11
211000007
Screw ( )
13
204170044
Cable Renv.dr. *cable-reverse/rh ( )
15
277000052
Barrure Cable *lock-cable ( )
16
211100009
Rondelle Caout.*washer-rubber ( )
17
277000055
Demi-bague *half-ring ( )
18
277000473
Embout Grand *boot-large ( )
19
277000466
Embout Petit *boot-small ( )
20
212100005
Nut-hexagonal ( )
21
204170062
Joint Rotule *joint-ball ( )
22
207066060
Screw-hex.cap Din.931a2 ( )
23
234062600
Washer-flat Din.9021b-a2 ( )
24
234061600
Washer-flat Din.125a-a2 ( )
26
212100006
Nut-jam Hexagonal ( )
28
211200019
Washer-flat 1/4 Ss-316 ( )
31
271000485
Cran D Arret *pawl-stop ( )
32
293150043
Rivet-pop 3/16 *rivet-pop 3/16 ( )
33
211200035
Washer-flat ( )
