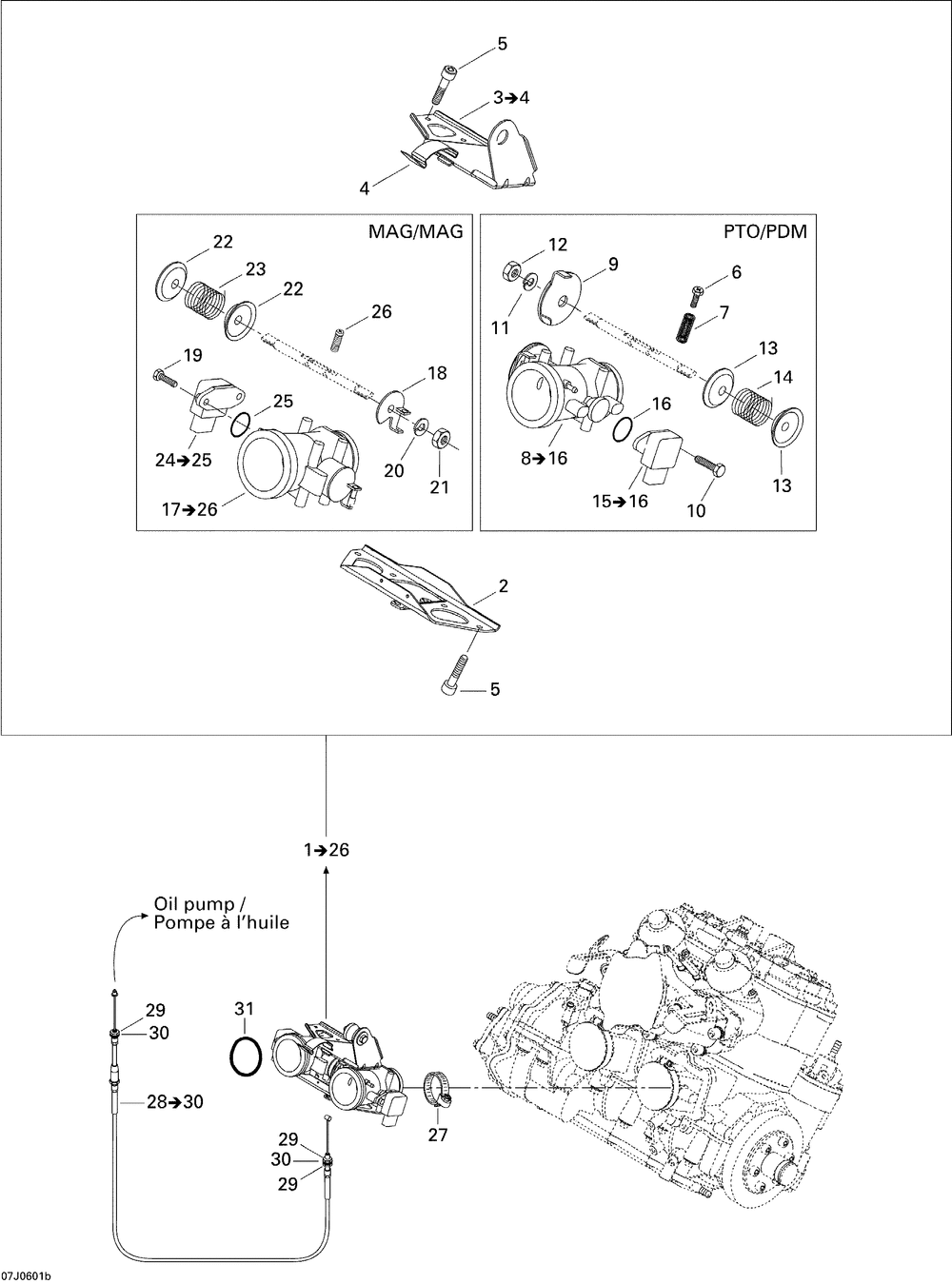

Двигатель 2

Sea-Doo (Bombardier) Sportster LE DI
Sea-Doo (Bombardier)
#oem кодцена
1
270600058
Throttle Body Twin Bore (includes 1 To 26 )
2
270600069
Support Inf. *support-lower ( )
3
270600070
Support Ass. *support-ass Y (includes 3 To 4 )
4
270600073
Attache Ressort*bracket-latch ( )
5
205051060
Screw-socket Hd.din.912a2 ( )
6
270600074
Vis Ajustement *adjuster-screw ( )
7
270600075
Ressort *spring ( )
8
270600076
Carter Accelera*body-throttle (includes 8 To 16 )
9
270600077
Levier Acc.ass.*lever-throt.as ( )
10
270600078
Screw-potentiometer M4 ( )
11
234161601
Washer-lock Helical Din.127b-a2 ( )
12
232061600
Nut-hexagonal Din.934a2 ( )
13
270600079
Guide Ressort *spring-guide ( )
14
270600080
Ressort *spring ( )
15
270000251
Capteur Acceler*sensor-throttl (includes 15 To 16 )
16
270000544
Кольцо
17
270600081
Carter Accelera*body-throttle (includes 17 To 26 )
18
270600082
Levier Capteur *lever-pick-up ( )
23
270600083
Ressort *spring ( )
26
270600084
Vis De Palentie*idle-screw ( )
27
293650079
Bride Serrage *clamp-norma ( )
28
270000546
Cable Injection*cable-inject. (includes 28 To 30 )
29
232160600
Nut-jam Hexagonal Din.439b-a2 ( )
30
234061600
Washer-flat Din.125a-a2 ( )
31
293250065
Кольцо
