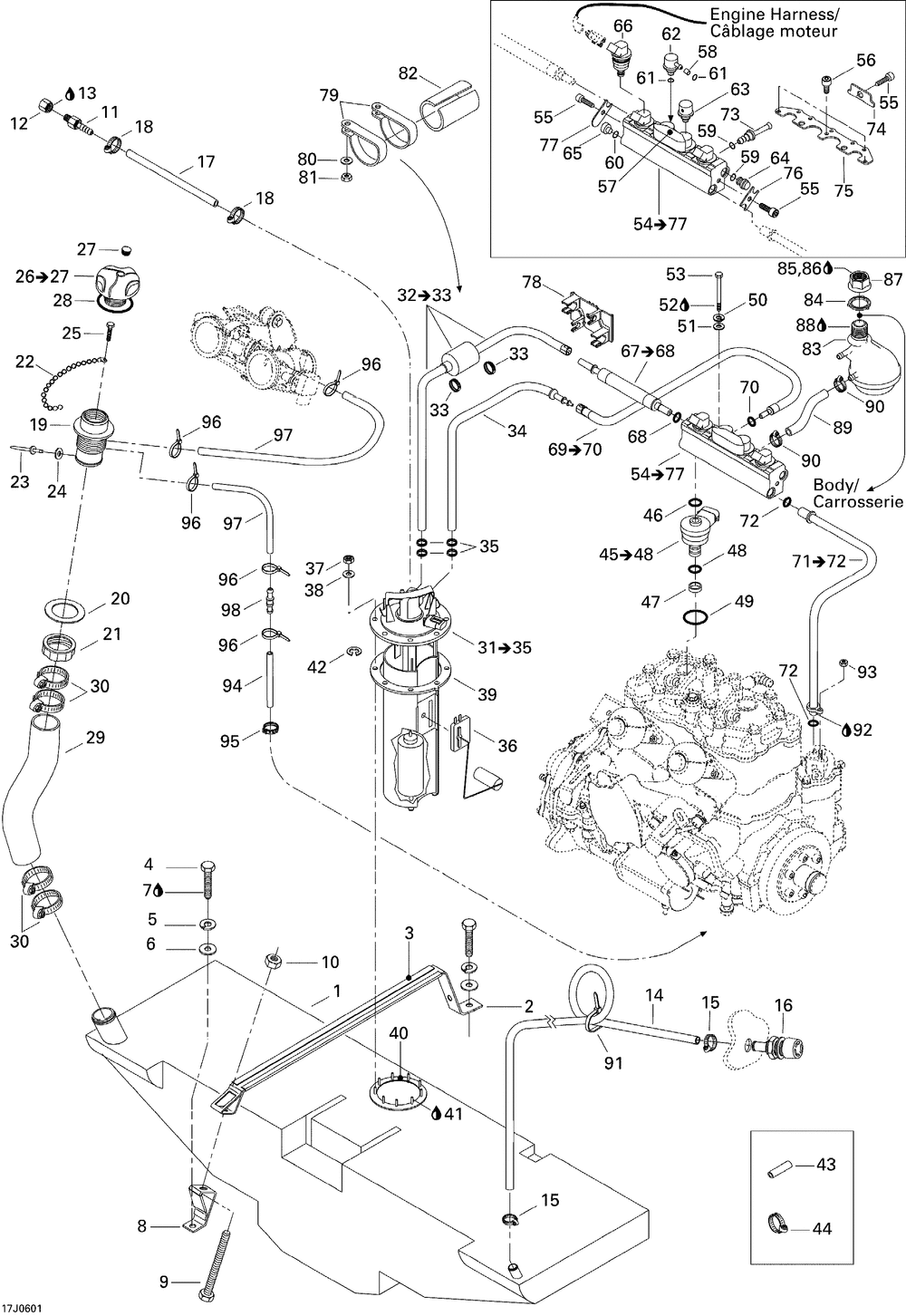

Топливная система

Sea-Doo (Bombardier) Sportster LE DI
Sea-Doo (Bombardier)
#oem кодцена
1
204560326
Reserv.ess.*tank-fuel Assy. ( )
2
204560181
Sangle Res.ess.*strap-fuel Tank ( )
3
204560185
Tampon Protect.*pad-protector ( )
4
207183060
Screw-hex.cap Din.933a2 ( )
5
234181601
Washer-lock Helical Din.127b-a2 ( )
6
234082600
Washer-flat Din.9021b-a2 ( )
7
293800005
Loctite 271 *loctite-271 ( )
8
275500252
Attache Reserv.*bracket-tank ( )
9
207183560
Screw-hex.cap Din.933a2 ( )
10
232581600
Nut-stop Elastic Din.985a2 ( )
11
204560265
Coupleur *coupler-hose/pipe ( )
12
204560263
Capuch.tuyau*cap-pipe ( )
13
293800013
Scellant Tuyau *sealant-pipe ( )
14
275500205
Boyau 16mm. *hose-16mm. ( )
15
293650069
Bride Serrage *clamp-norma ( )
16
275500206
Aerateur *vent-boat ( )
17
275500549
Boyau 1/4 *hose-1/4 ( )
18
293650121
Bride Serrage *clamp-norma ( )
19
275500247
Goulot Remplis.*neck-filler ( )
20
293250029
Joint Etanche *gasket ( )
21
211100012
Nut-neck Filler Fuel ( )
22
275500015
Chaine Bouchon *chain-cap Oil ( )
23
293150057
Rivet-pop 1/8 *rivet-pop 1/8 ( )
24
234032600
Washer-flat Din.9021b-a2 ( )
25
241140060
Screw-pt.hex.flange K40 X 10 ( )
26
275500430
Bouchon Ess.sub*cap-fuel Sub. (includes 26 To 27 )
27
293000034
Capuchon Press.*cap-snap Black ( )
28
293250017
Joint Etanche *gasket ( )
29
219700374
Boyau Remp.ext.*hose-fill Neck/soft ( )
30
293650081
Bride Serrage *clamp-norma ( )
31
204560289
Module Essen.*module-fuel Assy. (includes 31 To 35 )
32
204560290
Boyau Aliment.*hose-supply Assy. (includes 32 To 33 )
33
293650030
Collet A Sertir*crimp Clamp ( )
34
204560291
Boyau Retour*return-hose Assy. ( )
36
204560266
Retrav.levier*level-sensor/rework ( )
37
232551200
Nut-stop Elastic Din.985 ( )
38
234052400
Washer-flat Din.7349 ( )
39
293250088
Joint Etanche *gasket ( )
40
275500679
Anneau En C *c Ring 9 Stud ( )
41
293800038
Loctite 518 *loctite-518 ( )
42
293370002
Circlip-sstl.5mm.din.6799 ( )
43
204560177
"boyau *hose-5/16""" ( )
44
293650070
Bride Serrage *clamp-norma ( )
45
275500633
Injecteur D Air*injector-air (includes 45 To 48 )
46
293300084
Кольцо
47
270600030
Bague Injecteur*injector Ring ( )
48
293300076
Кольцо
49
293300083
Кольцо
51
234081600
Washer-flat Din.125a-a2 ( )
52
293800060
Loctite 243
53
207087060
Screw-hex.cap Din.931a2 ( )
54
204560300
Distributeur *distributor-fuel Assy. (includes 54 To 77 )
55
205061260
Screw-socket Hd.din.912a2 ( )
56
205051260
Screw-socket Hd.din.912a2 ( )
59
293300069
Кольцо
60
275500598
Кольцо
62
275500464
Regulateur Ess.*regulator-fuel ( )
63
275500463
Regulateur Air *regulator-air ( )
64
204560304
Bouchon Ess.*plug-fuel Passage ( )
66
275500460
Injecteur Ess. *injector-fuel ( )
67
204560307
Boyau Ass.ess.*hose Assy-fuel Supply (includes 67 To 68 )
69
204560313
Boyau Ass.ess.*hose Assy-fuel Return (includes 69 To 70 )
78
291001399
Attache Collier*tie-clamp ( )
79
293650139
Bride Serrage*clamp ( )
80
234051500
Washer-flat Din.125a ( )
81
232551600
Nut-stop Elastic Din.985a2 ( )
82
204560191
Tampon Sangle *pad-strap/fuel Tank ( )
83
270000569
Reducteur Bruit*noise Reducer ( )
84
293830027
Rondelle Etanc.*washer-seal ( )
85
293800041
Appret Loctite *primer-loctite ( )
87
211100020
Nut-special M27 ( )
89
276000084
Boyau 8mm. *hose-8mm. ( )
90
293650170
Collet A Vis *gear Clamp ( )
91
414115200
Tie-rap 180 Mm ( )
92
293800070
Loct.anti Grip.*loct-antiseize ( )
93
232561600
Nut-stop Elastic Din.985-a2 ( )
94
270000469
Boyau 3mm *hose-3mm ( )
95
293650105
Bride Serrage *clamp-oetiker ( )
96
293750001
Tie Rap 94mm *tie-rap 94mm ( )
97
270000374
Boyau 4.3mm *hose-4.3mm ( )
98
275500444
Raccord Droit *fitting-strait ( )
