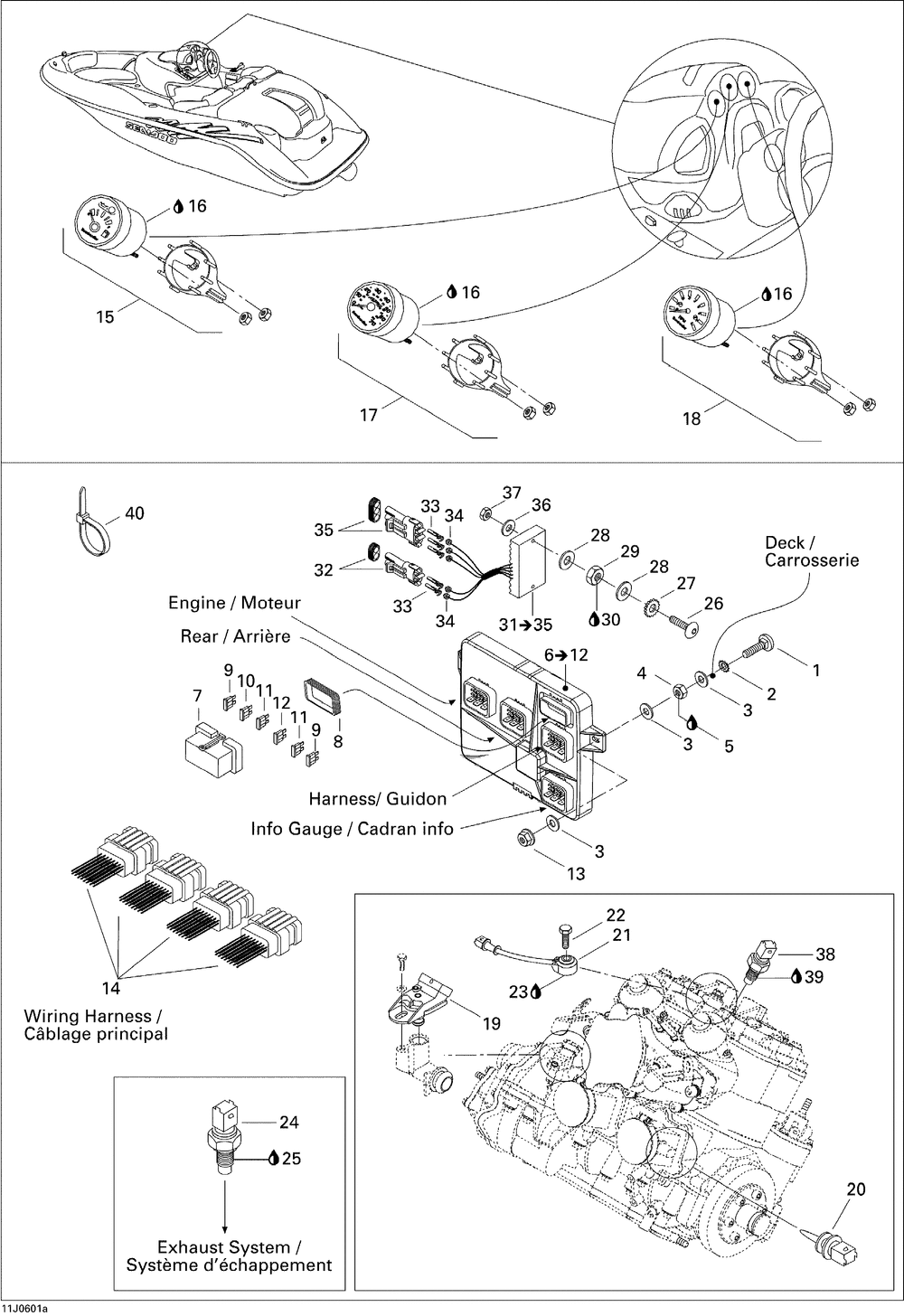

Электрика 1

Sea-Doo (Bombardier) Sportster LE DI
Sea-Doo (Bombardier)
#oem кодцена
1
204000130
Bolt-elevator ( )
2
211200054
Washer-lock Toothed Din.6797a-a2 ( )
3
234062600
Washer-flat Din.9021b-a2 ( )
4
211100026
Nut-hexagonal 1/4-20 ( )
5
293800005
Loctite 271 *loctite-271 ( )
6
278001747
Module Electron*module-elect. (includes 6 To 12 )
7
278001618
Couv.fusible *cover-fuse ( )
8
278001070
Joint Couvercle*seal-cover ( )
9
278000343
Fusible 15 Amp.*fuse-15 Amp. ( )
10
278001442
Fusible 2 Amp. *fuse-2 Amp. ( )
11
278001443
Fusible 25 Amp.*fuse-25 Amp. ( )
12
278000704
Fusible 7.5amp.*fuse-7.5 Amp. ( )
13
212000005
Nut-stop Elastic Ms-17830 ( )
14
204470863
Cablage Ass. *harness-assy. ( )
15
204470963
Cadran Ess.*gauge-fuel/oil ( )
16
293550004
Graisse Dielect*grease-dielect Dc4 ( )
17
204470964
Cadran Vites.*gauge-speedometer ( )
18
204470965
Cadran Tachy.*gauge-tachometer ( )
19
270600040
Capteur Press. *sensor-press. ( )
20
270600000
Capteur Temp. *sensor-air ( )
21
270000484
Capteur Clique.*sensor-noise ( )
22
207183060
Screw-hex.cap Din.933a2 ( )
23
293800060
Loctite 243
24
278001016
Capteur Temp. *sensor-liquid ( )
25
293800038
Loctite 518 *loctite-518 ( )
31
278001554
Redresseur Ass.*rectifier-assy (includes 31 To 35 )
32
278000220
Bloc 2 Circ.mal*housing-tab(m) ( )
33
409007300
Cosse Femelle *terminal-femal. ( )
34
278000218
Joint De Fil *seal-wire ( )
35
278000273
Bloc 3 Circ.mal*housing-tab ( )
36
234061600
Washer-flat Din.125a-a2 ( )
40
414115200
Tie-rap 180 Mm ( )
