Ручное управления

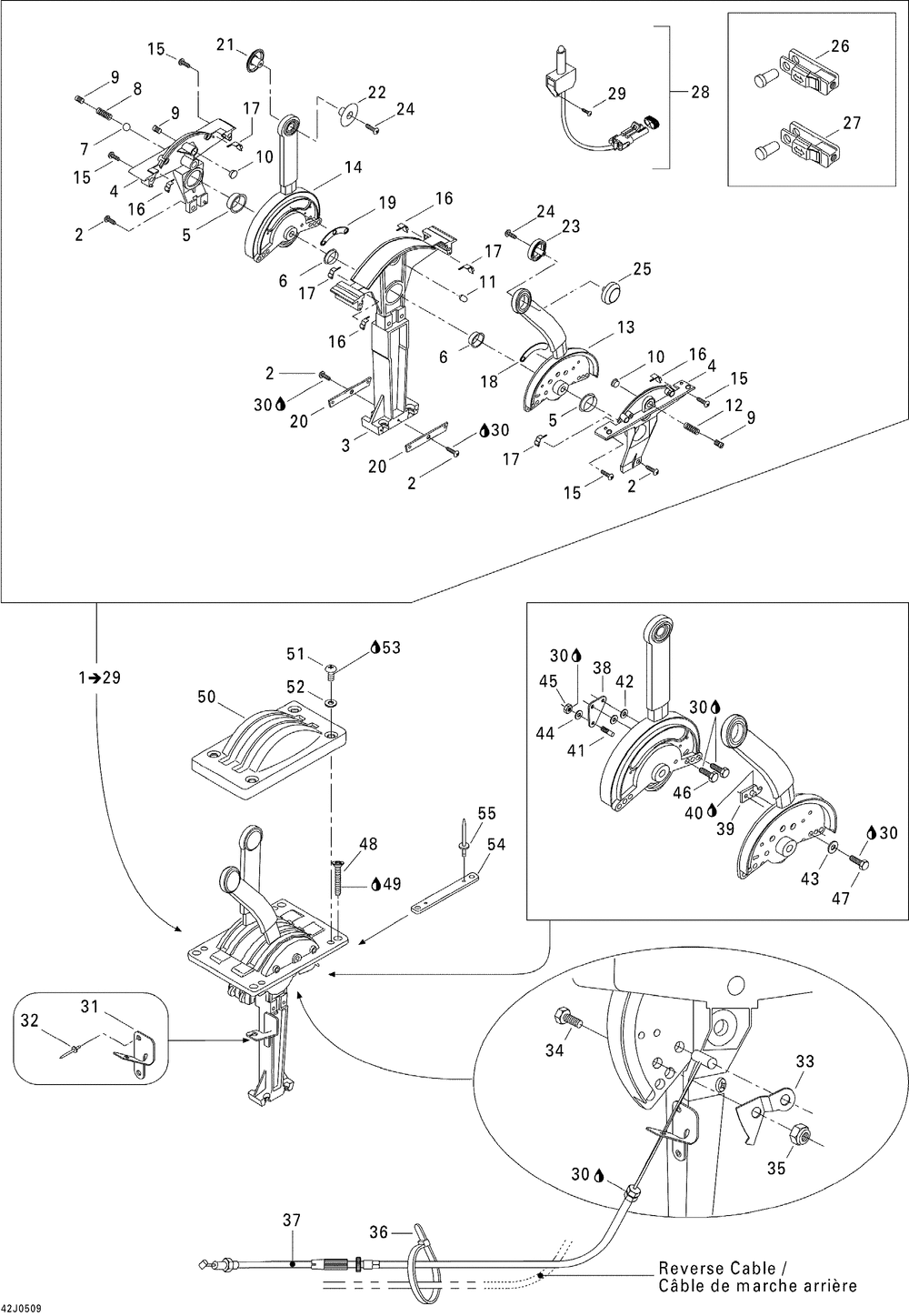

Sea-Doo (Bombardier) Challenger 180 4-TEC SC
Sea-Doo (Bombardier)
#oem кодцена
1
204390377
Contr.ultraf*control-ultraflex (includes 1 To 29 )
2
208651660
Screw-pan Hd.ph.din.7985a-a2 ( )
6
277000398
Coussinet *bush ( )
7
277000399
Bille *ball ( )
8
277000400
Ressort *spring ( )
9
277000402
Vis Capuchon *screw-cap ( )
10
277000403
Ajout Friction *insert-frict. ( )
11
277000404
Pivot Blocage *pivot-blocking ( )
12
277000401
Ressort *spring ( )
13
277000655
Levier Accel. *lever-throttle ( )
14
277000414
Levier Transm. *lever-shift ( )
15
204100016
Vis M5 X 20 *screw-uni 7687 ( )
18
277000659
Entretoise Lev.*spacer-lev.thr ( )
19
277000408
Entretoise Lev.*spacer-lev.shi ( )
20
204390227
Plaque Retenue *plate-retaining ( )
21
277000417
Demi-cap.filete*half-cap Shift ( )
22
277000418
Demi-cap.ouvert*half-cap Shift ( )
23
277000416
Demi-cap.ouvert*half-cap Throt ( )
24
277000419
Vis M3.5 X 25 *screw-uni 6954 ( )
25
277000415
Demi-cap.filete*half-cap Throt ( )
26
204390226
Clevis L26 *clevis L26 ( )
27
204390225
Clevis L25 *clevis L25 ( )
28
278001195
Inter.neutre *switch-neutral ( )
29
208630660
Screw-pan Hd.ph.din.7985a-a2 ( )
30
293800060
Loctite 243
31
277000504
Support Cable *support-cable ( )
32
293150026
Rivet-pop 1/8 *rivet-pop 1/8 ( )
33
204390045
Maille Cable *link-throttle ( )
34
207151660
Screw-hex.cap Din.933a2 ( )
35
232551600
Nut-stop Elastic Din.985a2 ( )
36
414115200
Tie-rap 180 Mm ( )
37
204390386
Cable Acceler.*cable-throttle/rh ( )
38
204390369
Bute Renver.*stop-reverse ( )
39
204390373
Loquet D Arr.*catch-reverse ( )
40
413711400
Герметик Loctite-648
41
204390370
Goupille Renv.*pin-reverse ( )
42
211200025
"rondelle Frein *washer-lock 1/4""" ( )
45
232561600
Nut-stop Elastic Din.985-a2 ( )
46
207161260
Screw-hex.cap Din.933a2 ( )
48
208453060
Screw-ctsk.fl.hd.ph.din.965a-a2 ( )
49
293800070
Loct.anti Grip.*loct-antiseize ( )
50
204390123
Recouvrement *plate-control ( )
51
208641060
Screw-pan Hd.ph.din.7985a-a2 ( )
52
234040600
Washer-flat Din.433a2 ( )
53
293800040
Loctite 425 *loctite-425 ( )
54
293450061
Ajout Controle *insert-shifter ( )
55
293150013
Rivet-pop 3/16 *rivet-pop 3/16 ( )
