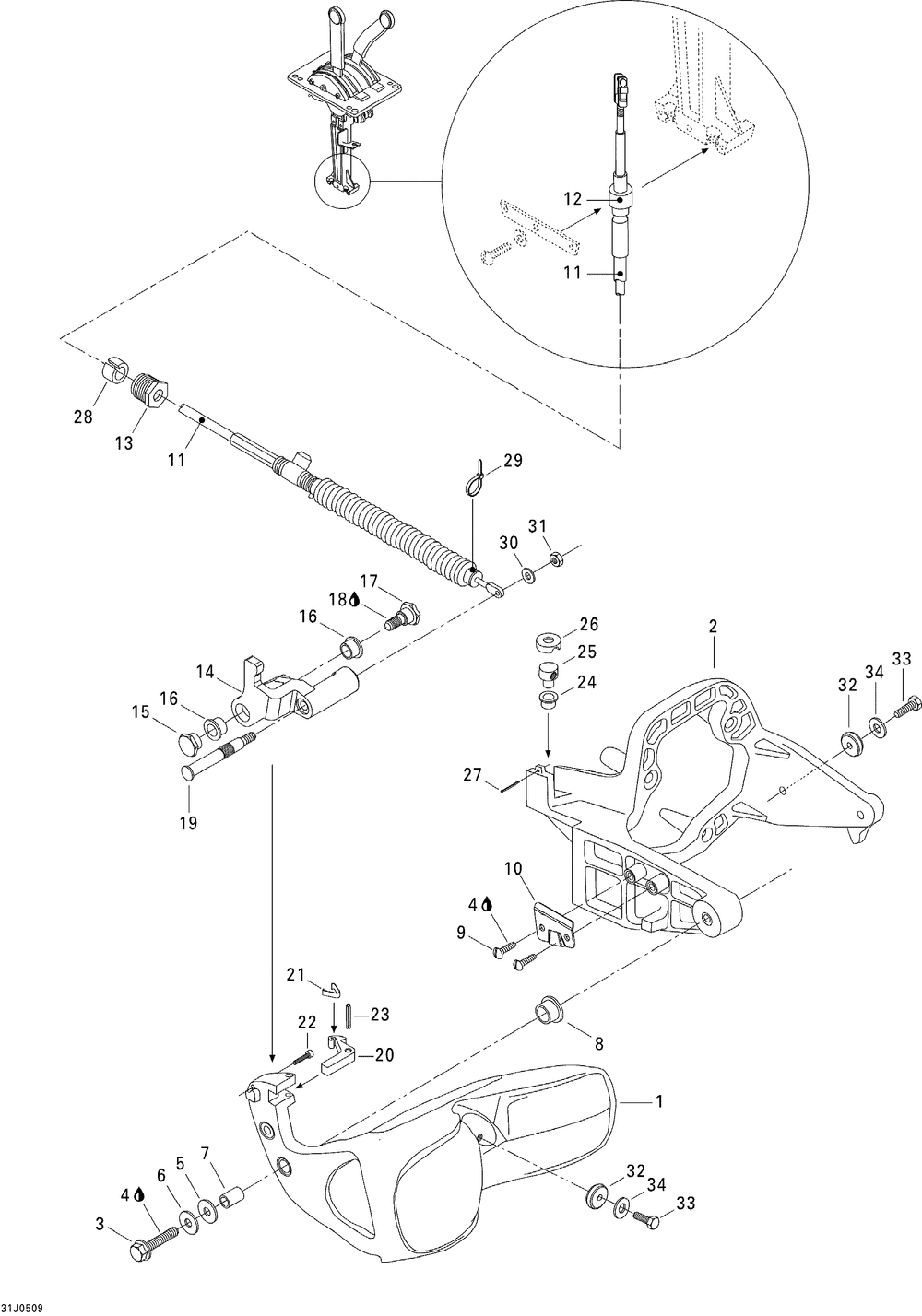

Задний ход

Sea-Doo (Bombardier) Challenger 180 4-TEC SC
Sea-Doo (Bombardier)
#oem кодцена
1
204170213
Vanne Renver.*gate-reverse ( )
2
204170214
Supp. Vanne*support-gate ( )
3
204100163
Screw-hex.flange 5/16-18x1.56 ( )
4
293800060
Loctite 243
5
204100128
Rondel.nylon *washer-nylon ( )
6
234082600
Washer-flat Din.9021b-a2 ( )
7
204170177
Manchon *sleeve ( )
8
204130237
Douille *bushing ( )
9
204100122
Screw-pan Hd. 10-24 Unc X .50 Ss ( )
10
271000485
Cran D Arret *pawl-stop ( )
11
204160218
Cable Renverse*cable-reverse ( )
12
277000846
Embout Grand *boot-large ( )
13
277000784
Barrure Cable *lock-cable ( )
14
204170230
Levier Goupille*lever-pin Assy. ( )
15
204100123
Nut-shoulder 5/16-18 Unc S.s. ( )
16
204130036
Douille *bushing ( )
17
204100124
Vis Epaulem.*screw-shoulder 5/16-18 ( )
18
293800005
Loctite 271 *loctite-271 ( )
19
204130037
Goupille *pin-s.s. ( )
20
204170220
Crochet Acier*hook-s.s. / Cast ( )
21
271000431
Ressort *spring ( )
22
204100127
"screw-socket Hd.1/4""-20 X 3/8""-ss" ( )
23
211400009
Pin-roll Spring Tension 1/8 ( )
25
204130038
Douille Lait.*bushing-brass ( )
26
204170212
Douille *bushing-reverse Cable ( )
27
204130040
Goupille Fend.*pin-cotter ( )
28
204130041
Passe-fils *grommet-rubber ( )
29
414115200
Tie-rap 180 Mm ( )
30
234052600
Washer-flat Din.9021b-a2 ( )
31
204100034
Nut-stop Elastic 10-24 Ss ( )
32
271001487
Anode Zinc *anode Zinc ( )
33
207362060
Винт Din.933a2 (отпуск.по 10шт)
34
234061600
Washer-flat Din.125a-a2 ( )
